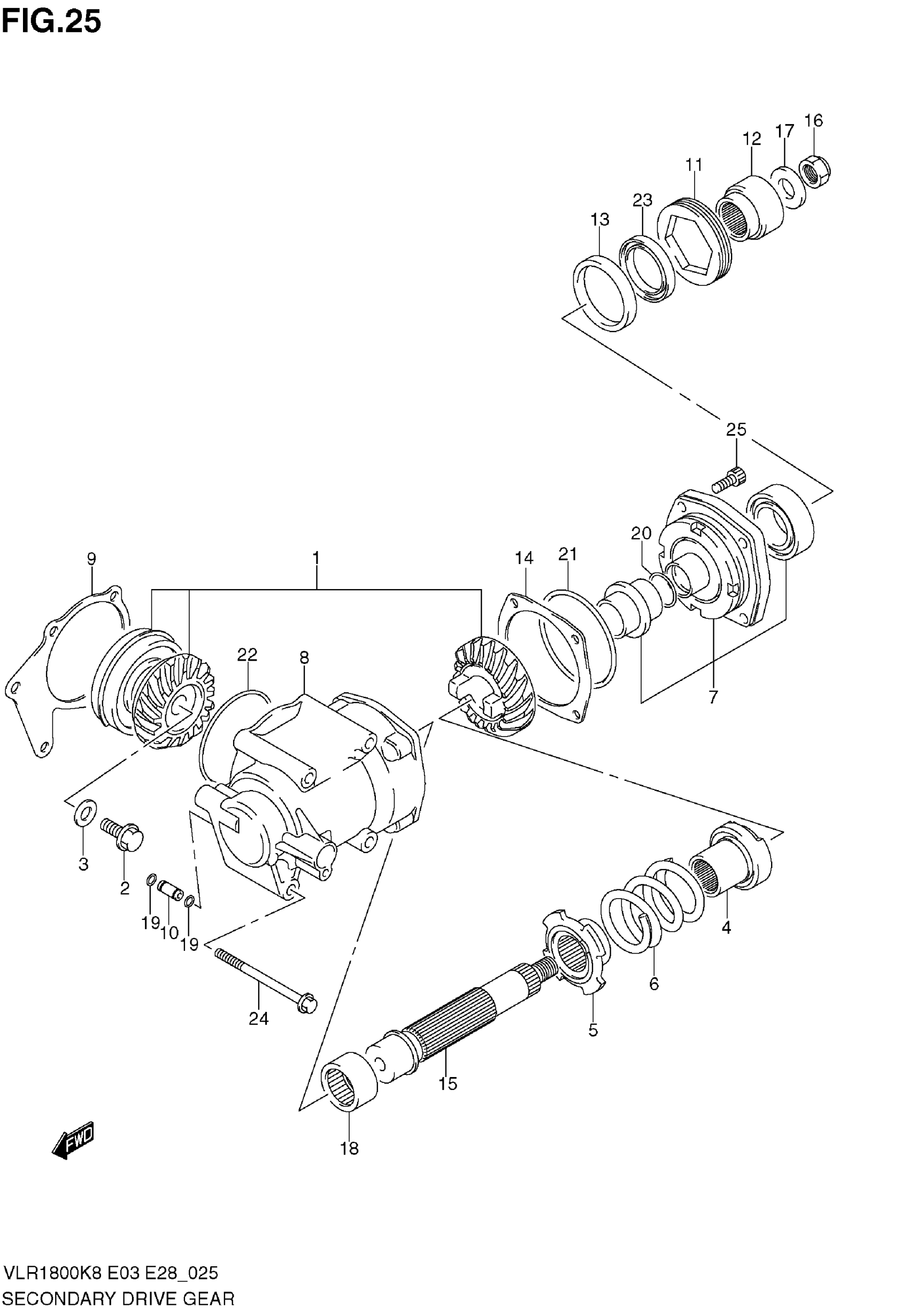

Suzuki VLR1800 (2009) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

GEAR SET, SECONDARY

24910-48830

$958.62

2

BOLT, SECONDARY DRIVE GEAR | 12X24

09103-12084

$8.48

3

WASHER, SECONDARY DRIVE

09160-12045

$4.11

4

DOG, OUTPUT CAM

24923-48G10

$128.75

5

STOPPER, CAM SPRING

24924-48G10

Unavailable

6

SPRING, SECONDARY DAMPER

24925-48G00

$50.92

7

STOPPER, SEC SET, DRIVEN BEVEL

24926-48820

$334.77

8

CASE, SECONDARY GEAR

24931-48G20

$382.13

9

SHIM SET, DRIVE | T:0.40/0.45/0.50 0.55/0.60/0.65 0.70/0.75/0.80

24935-48810

$99.25

10

PIPE, SEC GEAR CASE OIL

24940-26D00

Unavailable

11

STOPPER, SEC DRIVEN

24942-26D00

$72.00

12

COUPLING, SECONDARY DRIVEN This part replaces 24943-48G00.

24943-48G01

$106.45

13

HOUSING, OIL SEAL

24944-48G00

$52.33

14

SHIM SET, SECONDARY | T:0.30/0.35/0.40 0.50/0.60

24945-48810

$100.45

15

SHAFT, SECONDARY DRIVEN BEVEL

24961-48G00

$175.18

16

NUT, SEC DRIVEN BEVEL COUPLING

09159-16003

$4.00

17

WASHER, SEC DRIVEN BEVEL

09160-16040

$11.73

18

BEARING, SECONDARY DRIVEN

09263-32012

$112.65

19

O RING, SEC CASE OIL PIPE

09280-06008

$2.03

20

O RING, SEC DRIVE BRG STOPPER

09280-24010

$5.64

21

O RING, BEARING HOUSING | DD:3.7,ID:76.5

09280-78003

$7.55

22

O RING, SECONDARY CASE | DD:2.4,ID:90.8

09280-92003

$20.18

23

SEAL, SECONDARY DRIVEN OIL

09283-38011

$17.92

24

BOLT

01550-0895A

$4.60

25

BOLT, BEARING HOUSING | 9X30

09106-09002

Unavailable
