Partiron

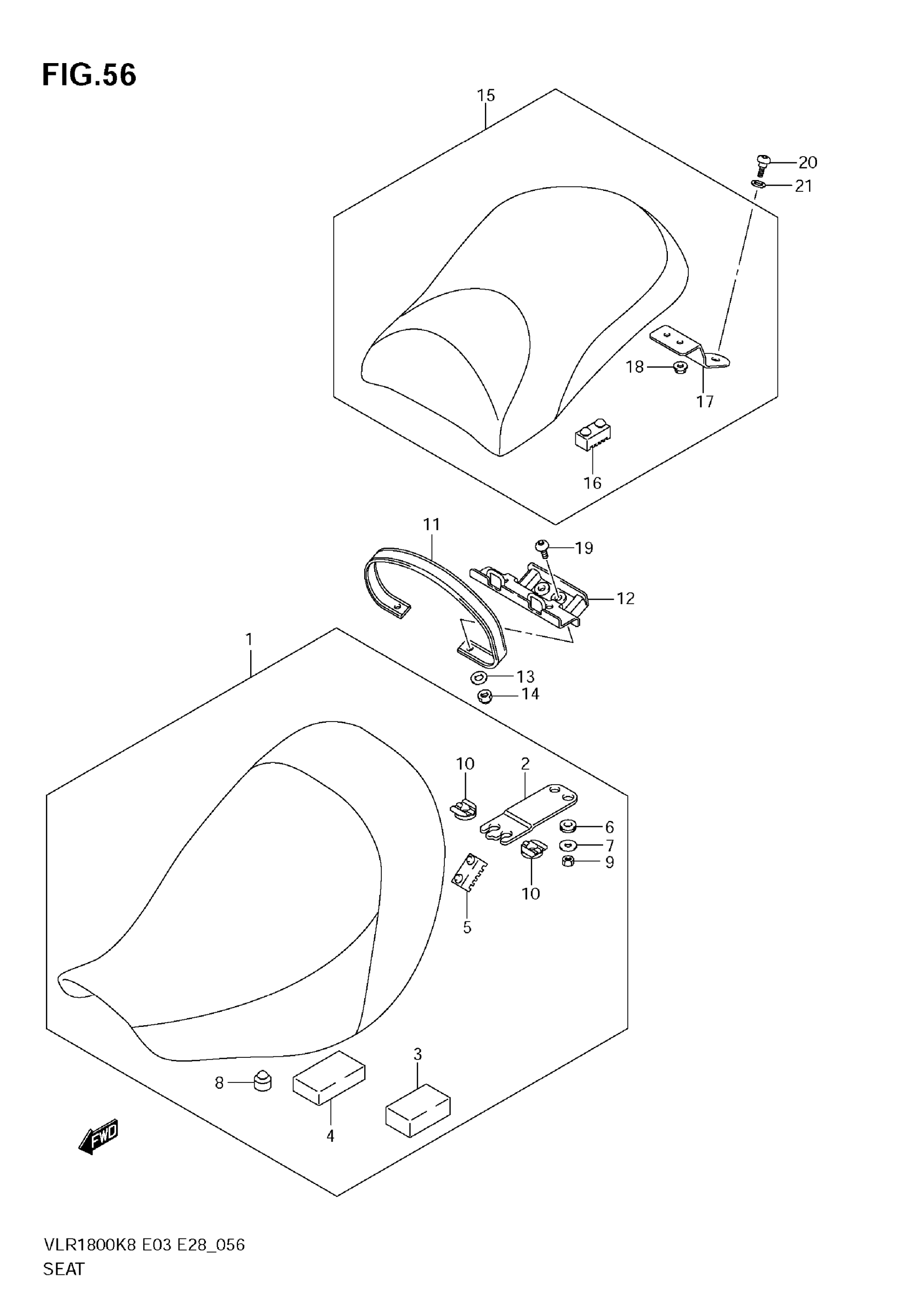

Suzuki VLR1800 (2009) SEAT (VLR1800K8/K9) Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | Includes Item(s) 2 - 10

45100-22H00-V4Y

Unavailable

2

BRACKET, SEAT

45115-22H00

Unavailable

3

CUSHION

45148-22H00

Unavailable

4

CUSHION

45149-22H00

Unavailable

5

CUSHION

45149-42F00

$8.42

6

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.47

7

.WASHER (6.5X20X1.6)

09160-06088

$1.65

8

CUSHION

09321-10011

$2.91

9

NUT

08316-1006A

$2.19

10

CUSHION, SEAT BRACKET

09320-10057

$4.52

11

BAND,SEAT(BLACK This part replaces 45181-22H00-V4Y.

45181-22H01-V4Y

$19.52

12

BRACKET, SEAT BAND

45185-22H00

$89.43

13

.WASHER (6.5X20X1.6)

09160-06088

$1.65

14

NUT

08313-2006A

$1.97

15

SEAT ASSY,PILLI | Includes Item(s) 16 - 18 This part replaces 45300-22H00-V4Y.

45300-22H40-V4Y

$564.25

16

CUSHION

45149-42F00

$8.42

17

BRACKET, SEAT

45315-22H00

Unavailable

18

NUT

08316-1006A

$2.19

19

BOLT, SEAT BAND BRACKET

09106-06064

$6.02

20

BOLT, PILLION SEAT | MODEL K8

09106-08169

$13.20

20

BOLT, PILLION SEAT | MODEL K9

09106-08169

$13.20

21

WASHER, PILLION SEAT | MODEL K9

45317-22H00

$6.47
