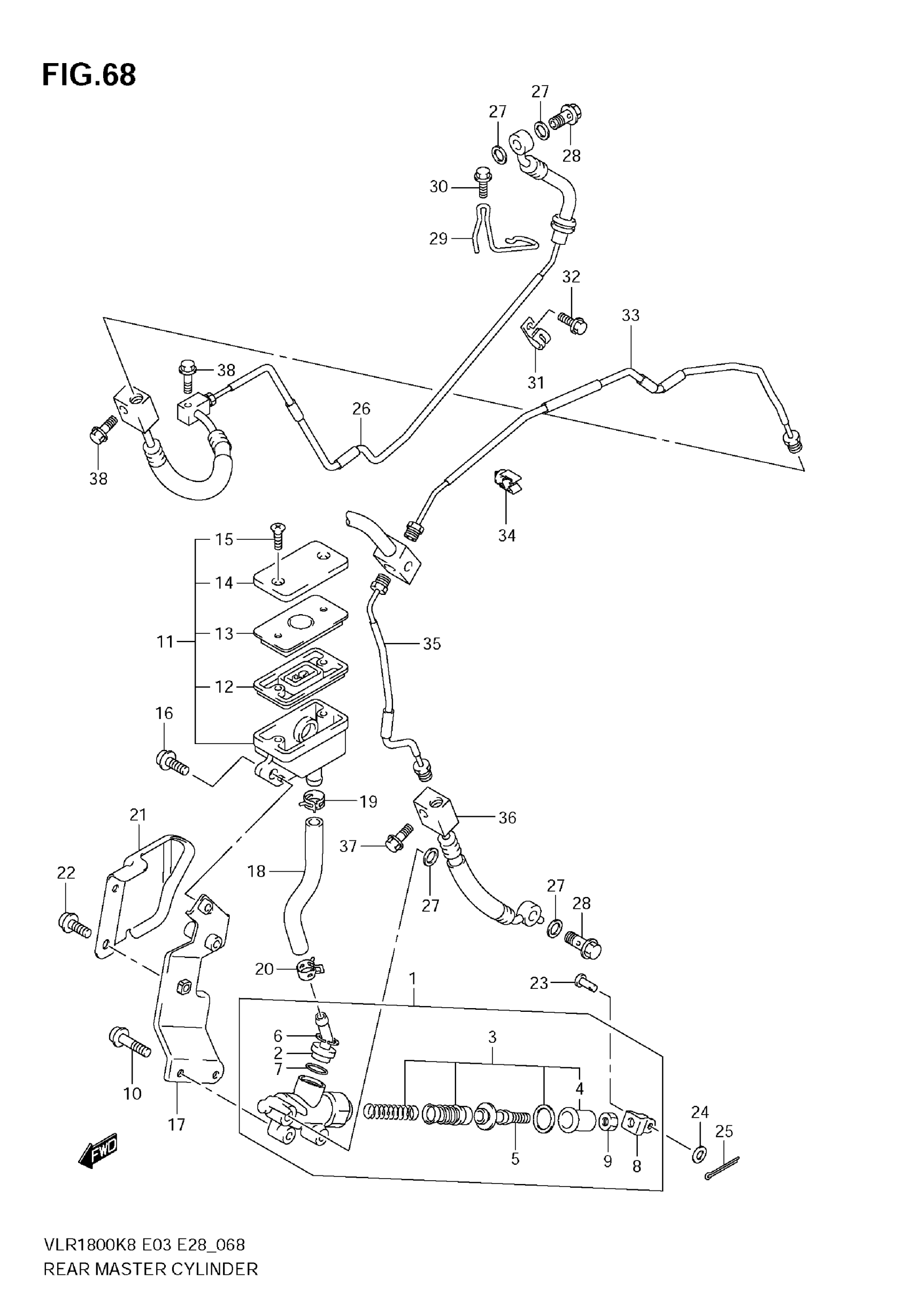

Suzuki VLR1800 (2009) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-22H00

$348.28

2

CONNECTOR

59672-42E00

Unavailable

3

PISTON & CUP SET

69600-22810

$68.77

4

.BOOT

69691-00A00

$5.00

5

ROD, PUSH

69670-22H00

Unavailable

6

CIRCLIP

69674-00B20

$3.73

7

O RING

69686-34200

$2.80

8

YOKE

69692-19A00

$19.03

9

NUT

69693-05A00

$1.86

10

BOLT, REAR MASTER CYLINDER

07120-0625B

$3.92

11

TANK ASSY, REAR RESERVOIR | Includes Item(s) 12 - 15

69740-22H00

Unavailable

12

DIAPHRAGM

59667-49460

$8.95

13

PLATE, DIAPHRAGM

59668-41C00

$8.54

14

CAP

59669-10G00

$43.22

15

SCREW, RESERVOIR CAP

69689-49300

$1.81

16

BOLT, RR RESERVOIR TANK

07120-0612B

$2.80

17

BRACKET, RR RESERVOIR TANK

69750-22H00

Unavailable

18

HOSE, RR RESERVOIR TANK

69731-22H00

Unavailable

19

CLAMP, RR RESERVOIR TANK HOSE

09401-13417

$2.24

20

CLAMP, RR RESERVOIR TANK HOSE

09401-12404

$2.37

21

COVER, RR RESERVOIR HOSE

69751-22H00

Unavailable

22

BOLT, RR RESERVOIR HOSE

07120-0612B

$2.80

23

PIN, REAR MASTER CYLINDER

09200-06068

$3.71

24

WASHER, REAR MASTER CYLINDER

08322-0106A

$1.83

25

PIN, RR MASTER CYLINDER

04111-2015A

$1.22

26

HOSE ASSY, RR BRAKE NO.2

69400-22H00

Unavailable

27

WASHER (10X15X1.5)

09161-10009

$1.83

28

BOLT, BRAKE FLUID

09360-10062

$5.81

29

GUIDE, RR BRAKE HOSE

69278-22H00

Unavailable

30

BOLT, RR BRAKE HOSE CLAMP

01550-0612A

$1.97

31

CLAMP, RR BRAKE PIPE

09403-07401

Unavailable

32

BOLT, RR BRAKE HOSE CLAMP

01547-0612A

$2.01

33

PIPE, REAR BRAKE

69250-22H00

Unavailable

34

CLAMP, RR BRAKE PIPE

51761-79J00

Unavailable

35

PIPE, BRAKE

59250-22H00

Unavailable

36

HOSE, REAR BRAKE NO.1

69240-22H00

Unavailable

37

BOLT, RR BRAKE HOSE

01547-0616A

$2.01

38

BOLT

01547-0625A

$2.01
