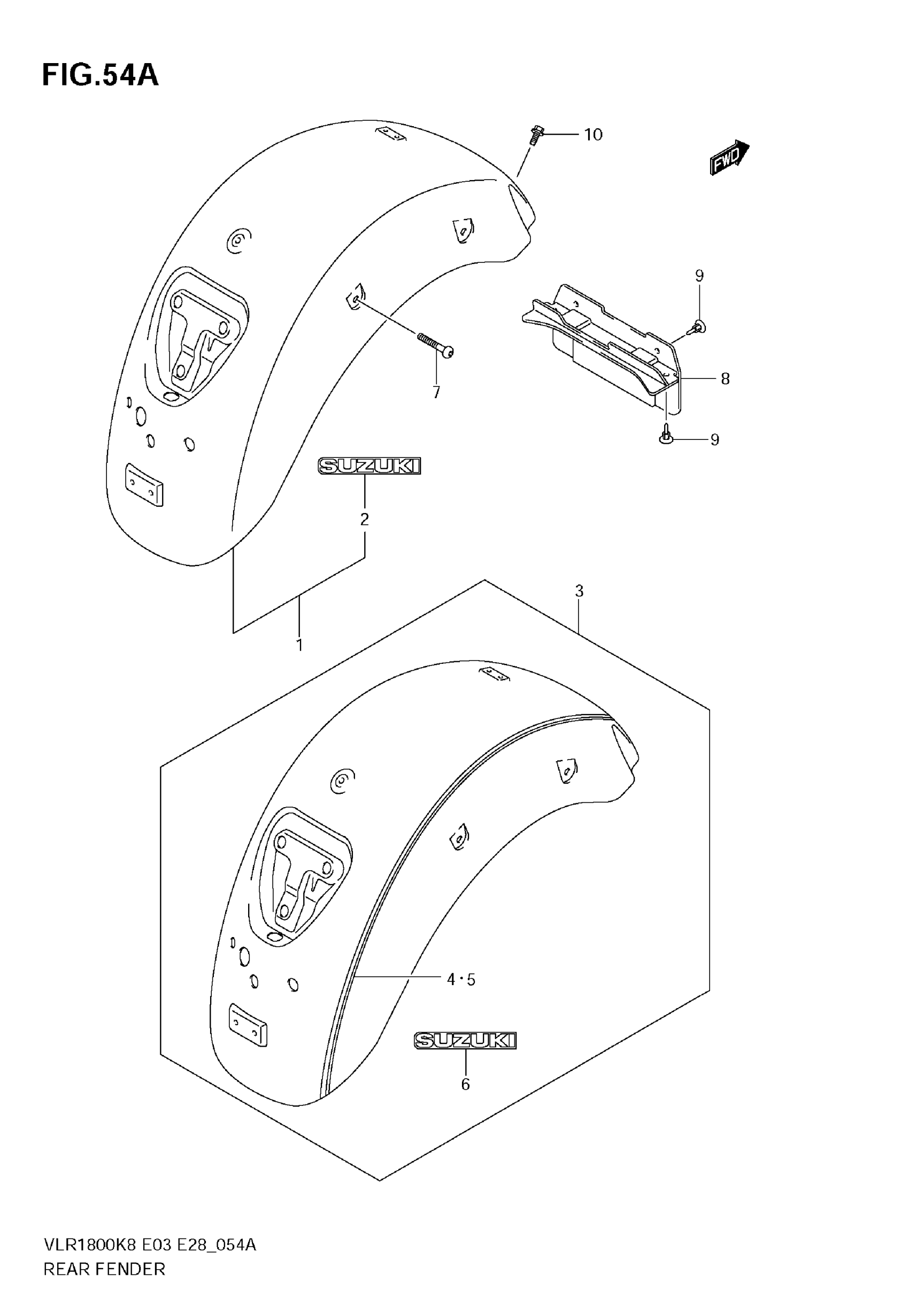

Suzuki VLR1800 (2009) REAR FENDER (MODEL K9) Diagram

#

Description
Price

1

FENDER ASSY, REAR (BLACK) | VLR1800

63100-22H10-YAY

Unavailable

1

FENDER ASSY,REA | VLR1800; Includes Item(s) 2 - 2 This part replaces 63100-22H10-YKZ.

63100-22H30-YKZ

Unavailable

2

EMBLEM | VLR1800 FOR YAY

68171-22H00-GMJ

Unavailable

2

EMBLEM | VLR1800 FOR YKZ

68171-22H00-GMK

Unavailable

3

FENDER ASSY, REAR (BLACK) | VLR1800T

63100-22HC0-CZW

Unavailable

3

FENDER ASSY, REAR (SILVER) | VLR1800T; Includes Item(s) 4 - 6

63100-22HC0-GRE

Unavailable

4

TAPE SET, RH | VLR1800T FOR CZW

68170-22H00-GEV

Unavailable

4

TAPE SET, RH | VLR1800T FOR GRE

68170-22H00-GSM

Unavailable

5

TAPE SET, LH | VLR1800T FOR CZW

68710-22H00-GEV

Unavailable

5

TAPE SET, LH | VLR1800T FOR GRE

68710-22H00-GSM

Unavailable

6

EMBLEM | VLR1800T FOR CZW

68171-22H00-GSN

Unavailable

6

EMBLEM | VLR1800T FOR GRE

68171-22H00-GSP

Unavailable

7

BOLT

09106-10085

$9.50

8

MUDGUARD, FRONT

63411-22H00

Unavailable

9

CLIP (BLACK)

09409-08308-5ES

$1.97

10

BOLT (8X12)

01550-0812A

$2.32
