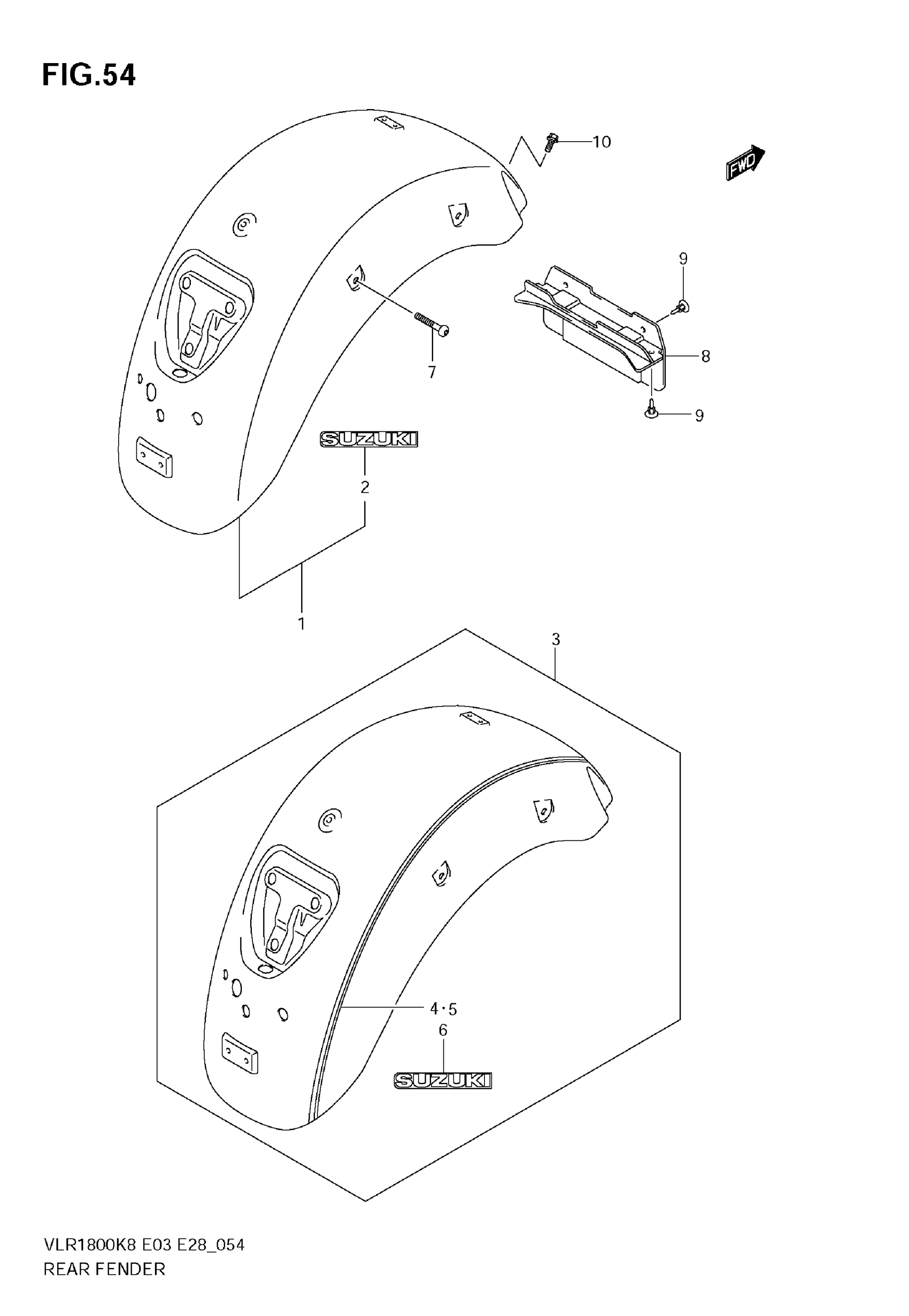

Suzuki VLR1800 (2009) REAR FENDER (MODEL K8) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | VLR1800 This part replaces 63100-22H00-YAY.

63100-22H30-YAY

Unavailable

1

FENDER ASSY,RR | VLR1800; Includes Item(s) 2 This part replaces 63100-22H00-YMK.

63100-22H41-YMK

Unavailable

2

.EMBLEM,"SUZUKI" (SILVER) | VLR1800 This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

3

FENDER ASSY,REA | VLR1800T This part replaces 63100-22HA0-FKE.

63100-22HB0-FKE

Unavailable

3

FENDER ASSY,REA | VLR1800T; Includes Item(s) 4 - 6 This part replaces 63100-22HA0-FKF.

63100-22HB0-FKF

Unavailable

4

TAPE SET, RH | VLR1800T FOR FKE

68170-22H00-FSF

Unavailable

4

TAPE SET, RH | VLR1800T FOR FKF

68170-22H00-FSG

Unavailable

5

TAPE SET, LH | VLR1800T FOR FKE

68710-22H00-FSF

Unavailable

5

TAPE SET, LH | VLR1800T FOR FKF

68710-22H00-FSG

Unavailable

6

.EMBLEM,"SUZUKI" (SILVER) | VLR1800T This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

7

BOLT

09106-10085

$9.50

8

MUDGUARD, FRONT

63411-22H00

Unavailable

9

CLIP (BLACK)

09409-08308-5ES

$1.97

10

BOLT (8X12)

01550-0812A

$2.32
