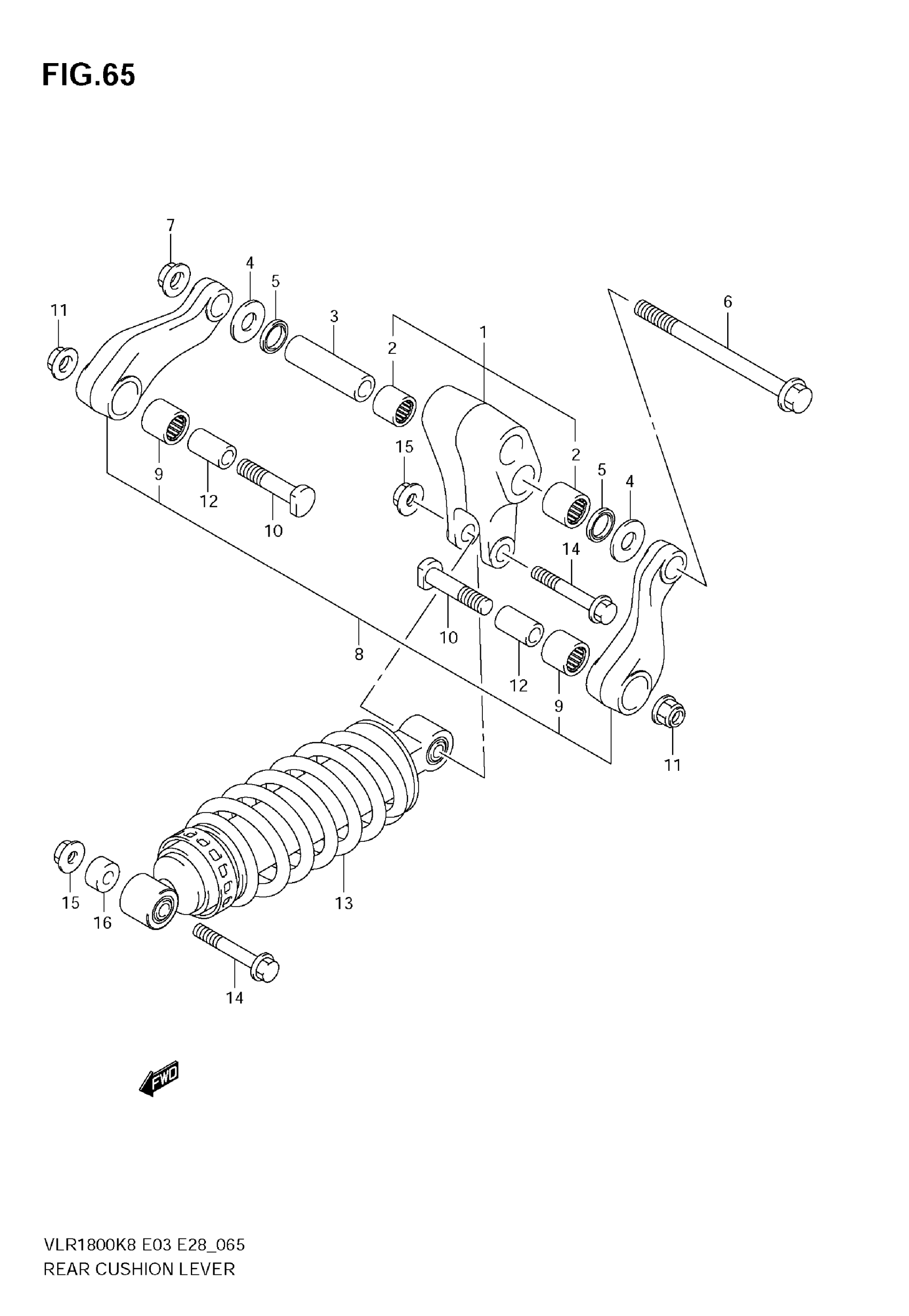

Suzuki VLR1800 (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2

62600-22830

Unavailable

2

BEARING, 22X29X25

09263-22071

Unavailable

3

SPACER, RR CUSHION LEVER

62645-28E00

Unavailable

4

WASHER, RR CUSHION LEVER

09160-16052

Unavailable

5

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

6

BOLT, RR CUSHION LEVER

62658-44G10

Unavailable

7

NUT, RR CUSHION LEVER

08319-3116A

$14.74

8

ROD SET, REAR CUSHION | Includes Item(s) 9

62600-22840

Unavailable

9

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

10

BOLT, RR CUSHION ROD FR

09119-14006

Unavailable

11

NUT, RR CUSHION ROD

08319-3114A

$9.66

12

SPACER, RR CUSHION ROD

09180-14014

$17.50

13

ABSORBER ASSY, REAR SHOCK | E28 VLR1800K8/K9/TK8

62100-22H00

Unavailable

13

ABSORBER ASSY, REAR SHOCK | E28 VLR1800TK9

62100-22H20

Unavailable

13

ABSORBER ASSY, REAR SHOCK | E3,E33 VLR1800K8/K9/TK8

62100-22H10

Unavailable

13

ABSORBER ASSY, REAR SHOCK | E3,E33 VLR1800TK9

62100-22H30

Unavailable

14

BOLT, RR SHOCK ABS

62658-27C10

$11.68

15

NUT, RR SHOCK ABS

09159-12056

$7.37

16

SPACER, RR SHOCK ABS FR

09180-12157

Unavailable
