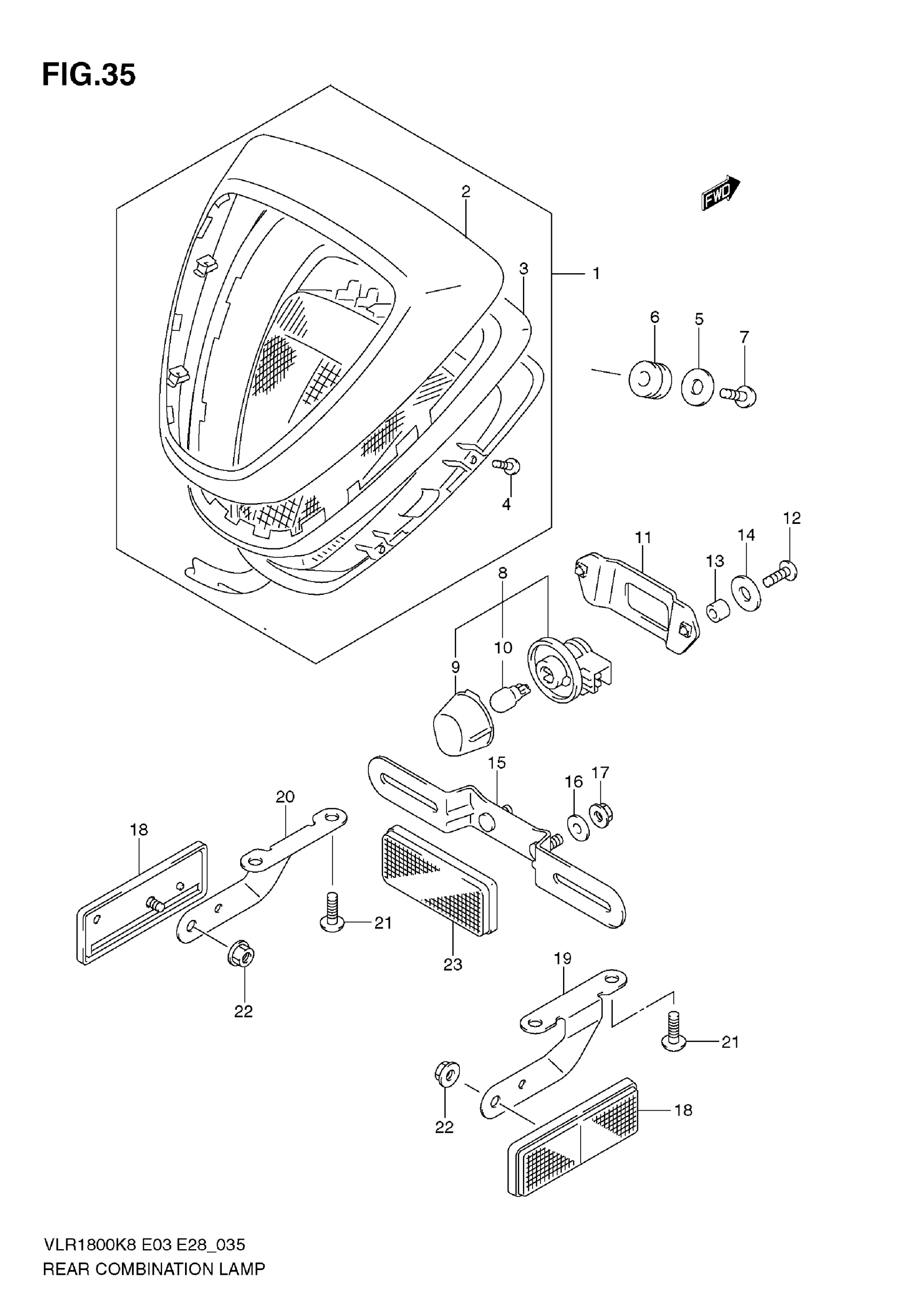

Suzuki VLR1800 (2009) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 4

35710-22H00

Unavailable

2

COVER

35717-22H00

Unavailable

3

RUBBER

35713-22H00

Unavailable

4

SCREW

35623-41400

Unavailable

5

WASHER, REAR COMB

09160-05501

$1.84

6

CUSHION, REAR COMB

09320-09009

$4.64

7

SCREW, REAR COMB

03541-0512A

$1.49

8

LAMP ASSY, LICENSE | Includes Item(s) 9 - 10

35910-14F01

$30.22

9

LENS, LICENSE

35912-14F11

$8.28

10

.BULB (12V5W)

09471-12216

$5.36

11

BRACKET, LICENSE LAMP

35928-22H00

Unavailable

12

SCREW (5X16)

09136-05032

Unavailable

13

SPACER (5.5X9.5X6.5)

09180-05053

Unavailable

14

CUSHION

09320-10057

$4.52

15

BRACKET, LICENSE PLATE

35927-22H30

Unavailable

16

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.49

17

NUT

08316-1006A

$2.19

18

REFLECTOR ASSY, REAR SIDE

35970-07F01

$20.88

19

BRACKET, REAR SIDE RR, R

35975-22H00

Unavailable

20

BRACKET, REAR SIDE RR, L

35976-22H00

Unavailable

21

SCREW, REAR SIDE BRKT

02162-0612A

$2.05

22

NUT, REAR SIDE RR

08316-1005B

$2.50

23

REFLECTOR ASSY, REAR

35970-22H00

Unavailable
