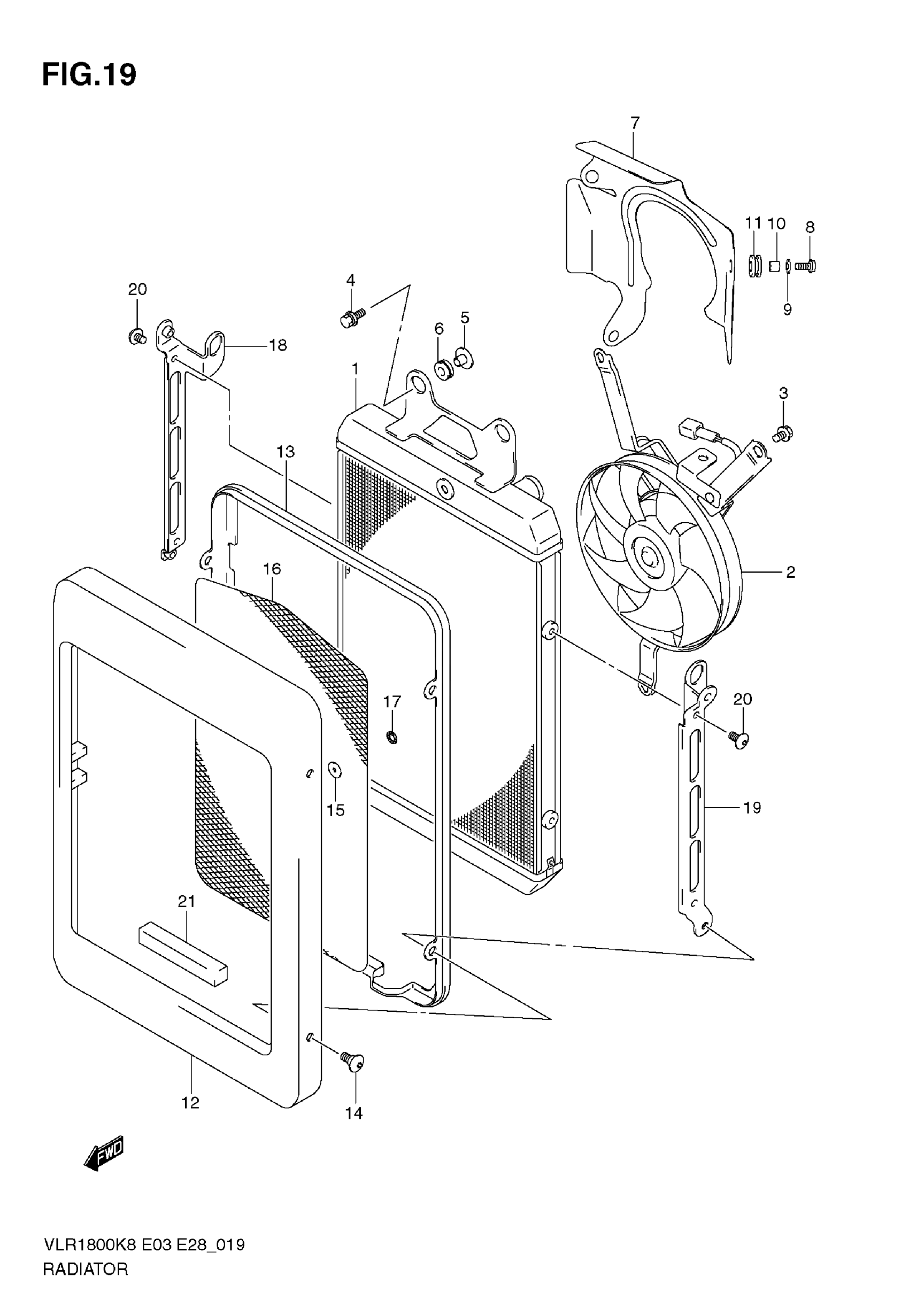

Suzuki VLR1800 (2009) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-22H00

Unavailable

2

FAN ASSY, RADIATOR

17800-22H00

Unavailable

3

BOLT

17711-40F00

$5.58

4

BOLT

09138-08003

$4.82

5

SPACER

09180-08220

Unavailable

6

CUSHION

09320-12080

Unavailable

7

SHIELD, RADIATOR HEAT

17771-22H00

Unavailable

8

BOLT

01547-0616B

$2.45

9

WASHER

09160-06152

$2.28

10

SPACER

09180-06001

$2.30

11

CUSHION (8.4X18X6)

09320-08066

$8.24

12

COVER, RADIATOR NO.1

17761-22H00

Unavailable

13

COVER, RADIATOR NO.2

17762-22H00

Unavailable

14

SCREW

09139-06175

Unavailable

15

CUSHION

09320-04501

$2.61

16

NET, RADIATOR COVER

17765-22H00

Unavailable

17

NUT

09148-03010

$2.63

18

BRACKET, RADIATOR RH

17769-22H00

Unavailable

19

BRACKET, RADIATOR LH

17768-22H00

Unavailable

20

SCREW

02142-0610A

$1.49

21

CUSHION

92141-43EU0

Unavailable
