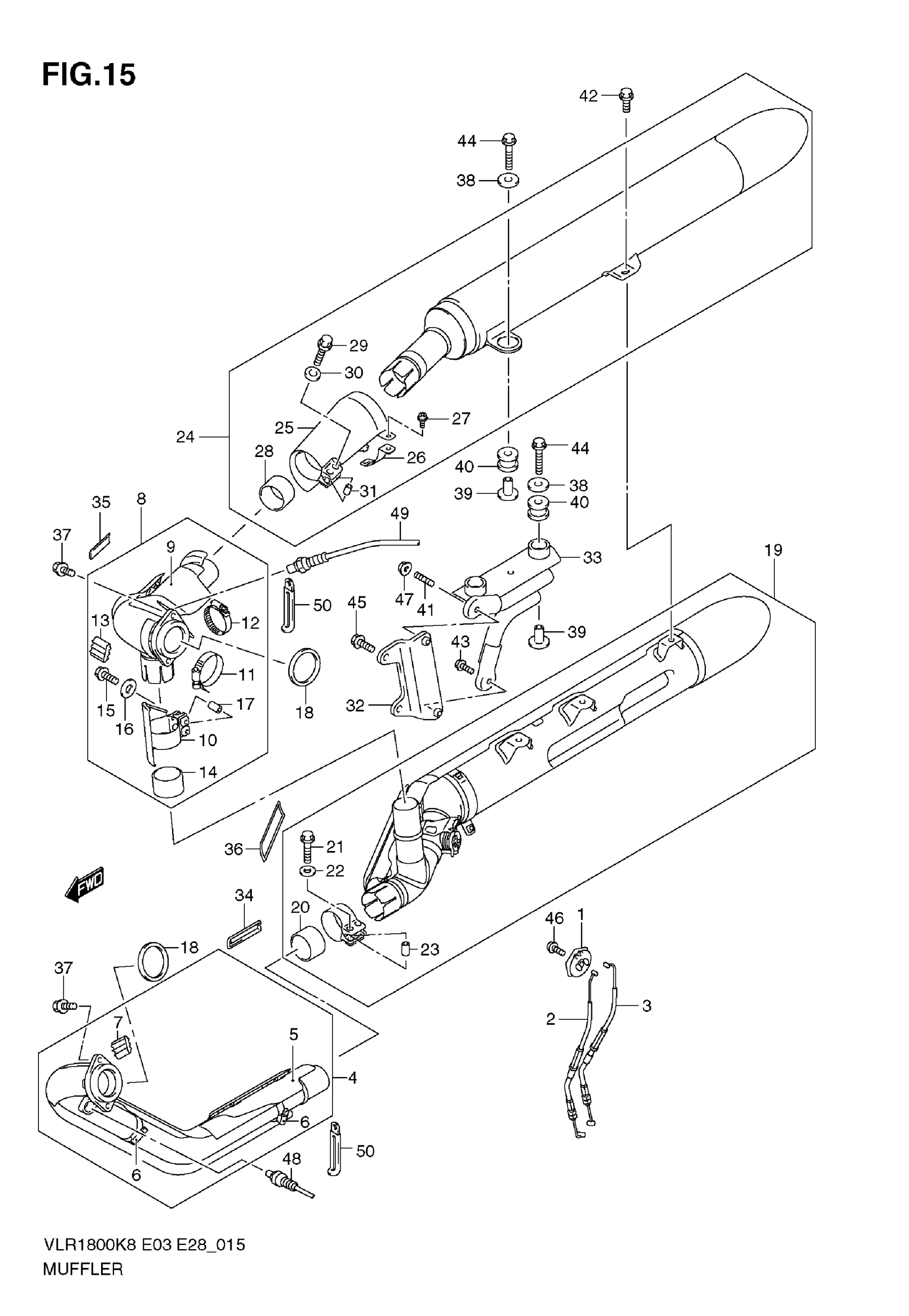

Suzuki VLR1800 (2009) MUFFLER Diagram

#

Description
Price

1

PULLEY, CONTROLLER This part replaces 11269-18G00.

11269-18G01

$28.78

2

CABLE, EXHAUST VALVE NO.1

11276-22H00

$44.07

3

CABLE, EXHAUST VALVE NO.2

11277-22H00

$44.07

4

PIPE, EXHAUST FR | E3,E28

14150-22H00

Unavailable

4

PIPE, EXHAUST FR | E33; Includes Item(s) 5 - 7

14150-22H10

Unavailable

5

COVER, FR PIPE

14159-22H00

Unavailable

6

BAND

14157-22H00

Unavailable

7

GROMMET

14795-10FA0

$5.58

8

PIPE, EXHAUST RR | E3,E28

14160-22H00

Unavailable

8

PIPE, EXHAUST RR | E33; Includes Item(s) 9 - 17

14160-22H10

Unavailable

9

COVER, RR PIPE

14178-22H00

Unavailable

10

COVER, JOINT PIPE

14179-22H00

Unavailable

11

BAND

14169-22H00

Unavailable

12

BAND

14157-22H00

Unavailable

13

GROMMET

14795-10FA0

$5.58

14

CONNECTOR, MUFFLER This part replaces 14771-42F30.

14771-42F31

$27.33

15

BOLT

09103-08365

$3.91

16

WASHER

09160-08082

$1.61

17

SPACER

14167-22H00

$17.37

18

GASKET

14181-10F00

$12.91

19

BODY,MUFFLER FR | E3,E28 This part replaces 14310-22H00-H01.

14310-22H01-H01

Unavailable

19

BODY, MUFFLER FR | E33; Includes Item(s) 20 - 23

14310-22H10-H01

Unavailable

20

CONNECTOR, MUFFLER This part replaces 14771-42F30.

14771-42F31

$27.33

21

BOLT

09103-08365

$3.91

22

WASHER

09160-08082

$1.61

23

SPACER

14167-22H00

$17.37

24

BODY,MUFFLER RR | E3,E28 This part replaces 14340-22H00-H01.

14340-22H01-H01

Unavailable

24

BODY, MUFFLER RR | E33; Includes Item(s) 25 - 31

14340-22H10-H01

Unavailable

25

COVER, FR MUFFLER

14398-22H00

Unavailable

26

CLAMP

14399-22H00

$33.15

27

BOLT

07120-0616A

$2.53

28

CONNECTOR, MUFFLER This part replaces 14771-42F30.

14771-42F31

$27.33

29

BOLT

09103-08365

$3.91

30

WASHER

09160-08082

$1.61

31

SPACER

14167-22H00

$17.37

32

BRACKET, FR

14420-22H00

Unavailable

33

BRACKET, RR

14410-22H00

Unavailable

34

PROTECTOR, FR

14770-22H00

Unavailable

35

PROTECTOR, HEAT GUARD

14780-22H00

Unavailable

36

PROTECTOR, RR

14790-22H00

Unavailable

37

BOLT

09106-08165

$4.03

38

WASHER

09160-08146

$2.60

39

SPACER

09180-08156

$6.70

40

CUSHION

09320-12049

$10.68

41

BOLT

01411-0825A

Unavailable

42

BOLT

09103-08371

Unavailable

43

BOLT

01550-0820A

$2.23

44

BOLT

09103-08358

$3.42

45

BOLT (10X20)

01550-1025A

$3.05

46

BOLT

07120-0516A

$2.28

47

NUT

08319-3108A

$2.32

48

SENSOR, OXYGEN FR | E33

18213-48G20

Unavailable

49

SENSOR, OXYGEN RR | E33

18213-22H00

Unavailable

50

CLAMP | E33

09404-06429

$1.83
