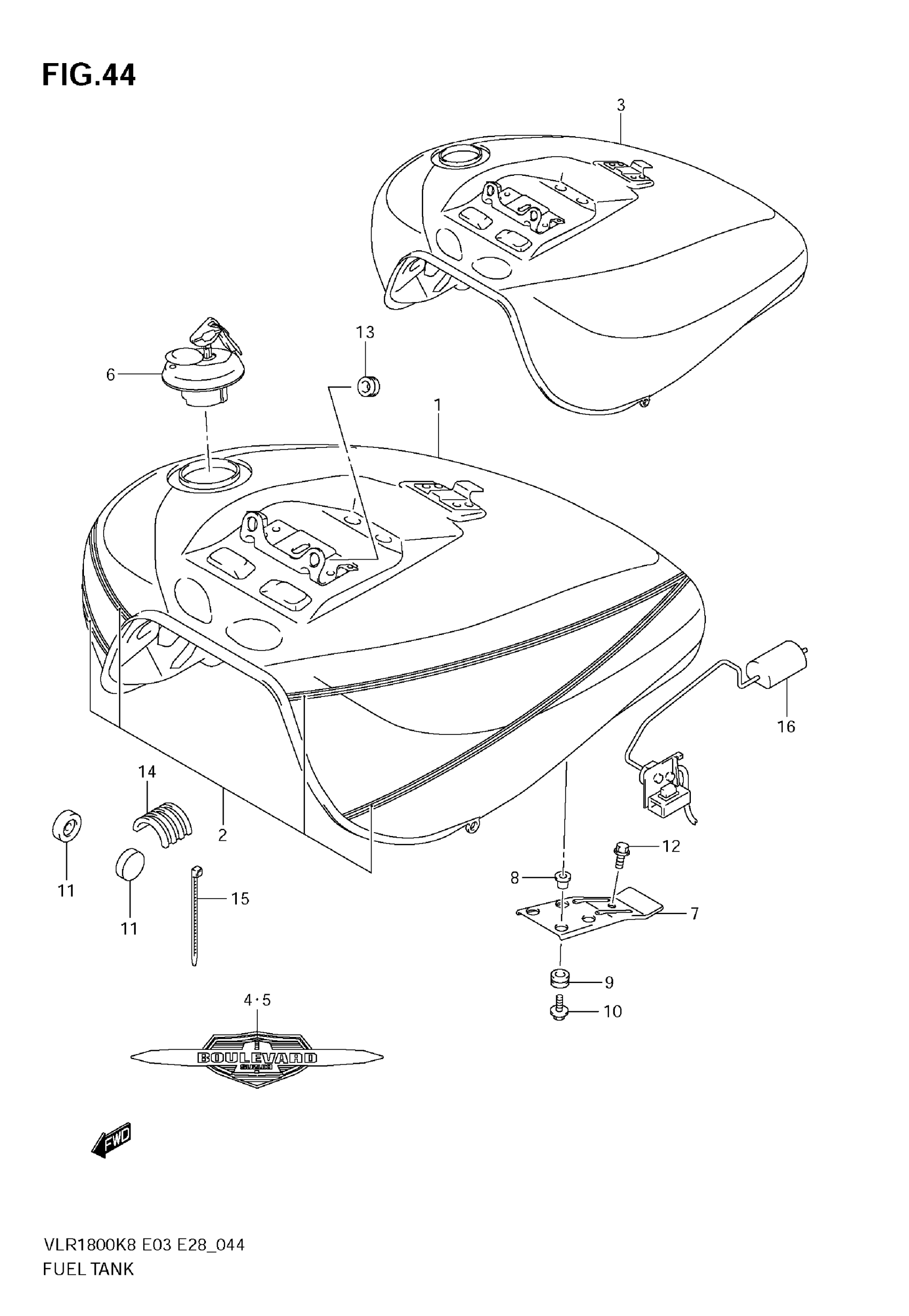

Suzuki VLR1800 (2009) FUEL TANK (VLR1800TK8/TK9) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | MODEL K8 E3,E28

44100-22HA0-FKE

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K8 E3,E28

44100-22HA0-FKF

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL K8 E33

44100-22HB0-FKE

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K8 E33; Includes Item(s) 2 - 2

44100-22HB0-FKF

Unavailable

2

TAPE SET, RH | MODEL K8 FOR FKE

68110-22H00-FSF

Unavailable

2

TAPE SET, RH | MODEL K8 FOR FKF

68110-22H00-FSG

Unavailable

2

TAPE SET, LH | MODEL K8 FOR FKE

68120-22H00-FSF

Unavailable

2

TAPE SET, LH | MODEL K8 FOR FKF

68120-22H00-FSG

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL K9 E3,E28

44100-22HD0-YAY

Unavailable

3

TANK ASSY, FUEL (SILVER) | MODEL K9 E3,E28

44100-22HD0-YSY

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL K9 E33

44100-22HF0-YAY

Unavailable

3

TANK ASSY, FUEL (SILVER) | MODEL K9 E33

44100-22HF0-YSY

Unavailable

4

EMBLEM, RH

68111-22H00

Unavailable

5

EMBLEM, LH

68121-22H00

Unavailable

6

CAP SET,FUEL TA | E3,E28 This part replaces 44200-41830.

44200-41832

$164.45

6

CAP SET,FUEL TA | E33 This part replaces 44200-41840.

44200-41842

$94.83

7

BRACKET, REAR

44530-22H00

Unavailable

8

SPACER

09169-06062

$2.50

9

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

10

BOLT

09116-06192

$2.30

11

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

12

BOLT, REAR

01550-0812B

$2.73

13

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

14

CUSHION, TANK SIDE

44541-22H00

Unavailable

15

CLAMP

09407-30402

$4.11

16

GAUGE ASSY, FUEL LEVEL

34810-22H00

$137.02
