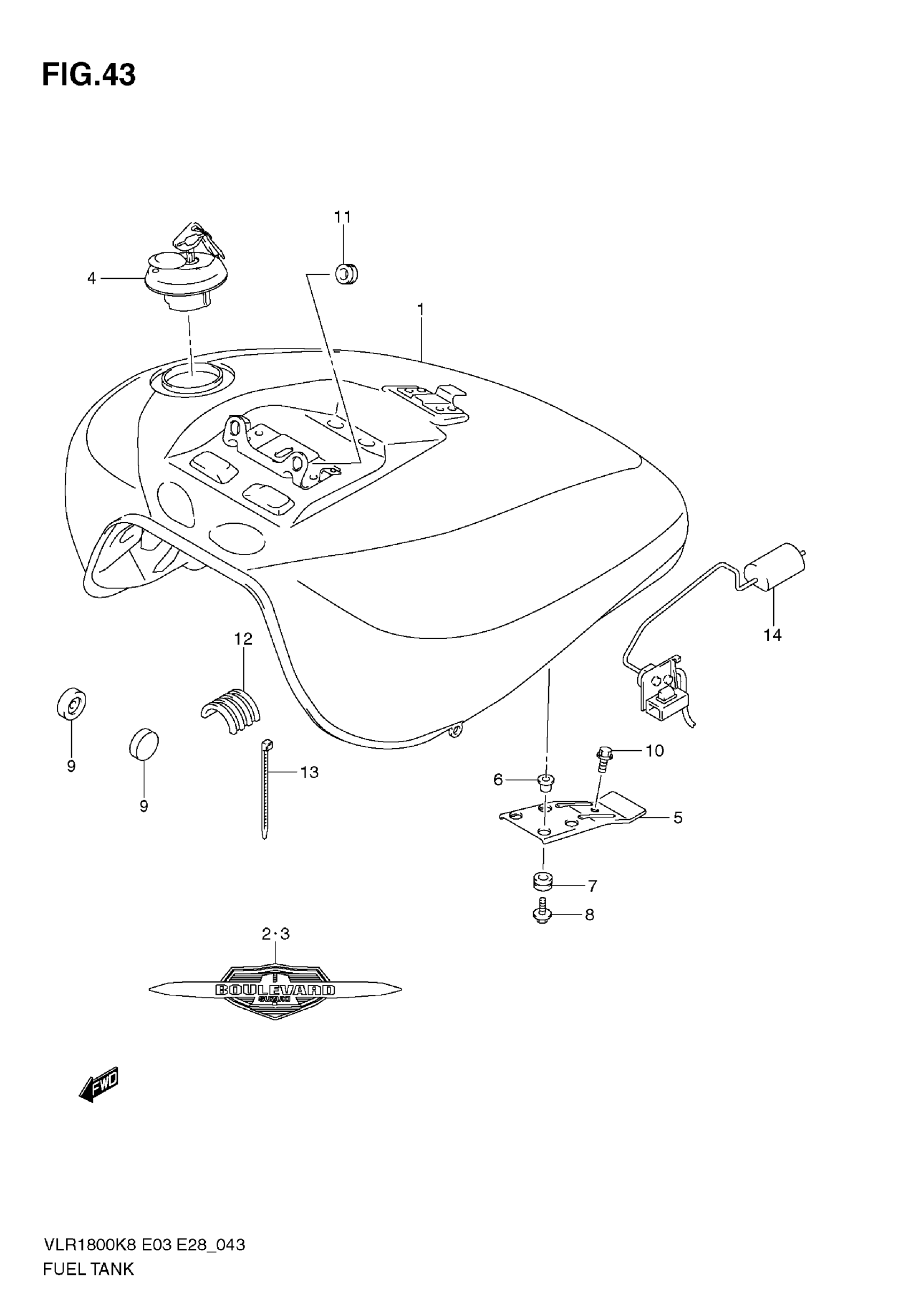

Suzuki VLR1800 (2009) FUEL TANK (VLR1800K8/K9) Diagram

#

Description
Price

1

TANK ASSY,FUEL( | E3,E28 This part replaces 44100-22H00-YAY.

44100-22H31-YAY

Unavailable

1

TANK ASSY,FUEL | MODEL K8 E3,E28 This part replaces 44100-22H00-YMK.

44110-22H60-13L

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K9 E3,E28

44100-22H00-YKZ

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-22H20-YAY

Unavailable

1

TANK ASSY, FUEL (RED) | MODEL K8 E33

44100-22H20-YMK

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K9 E33

44100-22H20-YKZ

Unavailable

2

EMBLEM, RH

68111-22H00

Unavailable

3

EMBLEM, LH

68121-22H00

Unavailable

4

CAP SET,FUEL TA | E3,E28 This part replaces 44200-41830.

44200-41832

$164.45

4

CAP SET,FUEL TA | E33 This part replaces 44200-41840.

44200-41842

$94.83

5

BRACKET, REAR

44530-22H00

Unavailable

6

SPACER

09169-06062

$2.50

7

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

8

BOLT

09116-06192

$2.30

9

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

10

BOLT (8X12)

01550-0812A

$2.32

11

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

12

CUSHION, TANK SIDE

44541-22H00

Unavailable

13

CLAMP

09407-30402

$4.11

14

GAUGE ASSY, FUEL LEVEL

34810-22H00

$137.02
