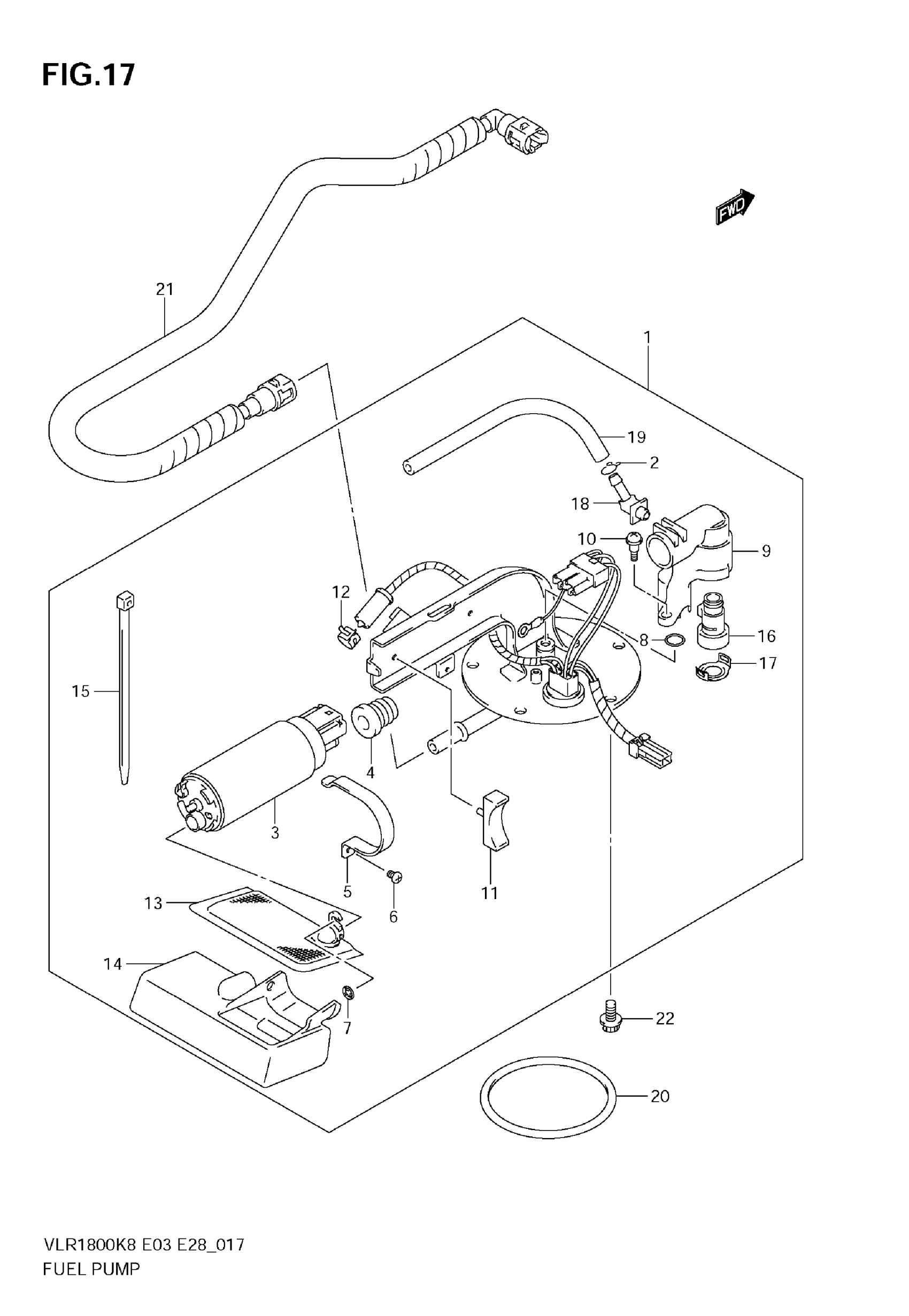

Suzuki VLR1800 (2009) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL | Includes Item(s) 2 - 19 This part replaces 15100-22H00.

15100-22H01

$526.63

2

CLIP

13693-24F00

$3.22

3

PUMP

15110-48G00

$388.23

4

.INSULATOR This part replaces 15114-48G00.

15114-48G01

$20.47

5

HOLDER

15115-14G00

Unavailable

6

SCREW

15116-48G00

$5.58

7

PLATE

15119-14G00

$5.38

8

O RING

15125-48G00

$14.27

9

ADAPTER

15131-48G00

Unavailable

10

SCREW

15135-48G00

Unavailable

11

INSULATOR

15141-48G00

Unavailable

12

CLAMP

15175-48G00

Unavailable

13

FILTER

15420-22H00

$100.92

14

COVER

15425-22H00

Unavailable

15

BAND

15426-48G00

$12.82

16

REGULATOR

15610-48G00

$201.52

17

CLIP

15613-48G00

Unavailable

18

JOINT

15614-48G00

Unavailable

19

HOSE

15615-48G00

$25.33

20

O-RING

15201-35F00

$27.60

21

HOSE,FUEL This part replaces 15810-22H00.

15810-22H01

$117.53

22

BOLT

07120-0612A

$2.50
