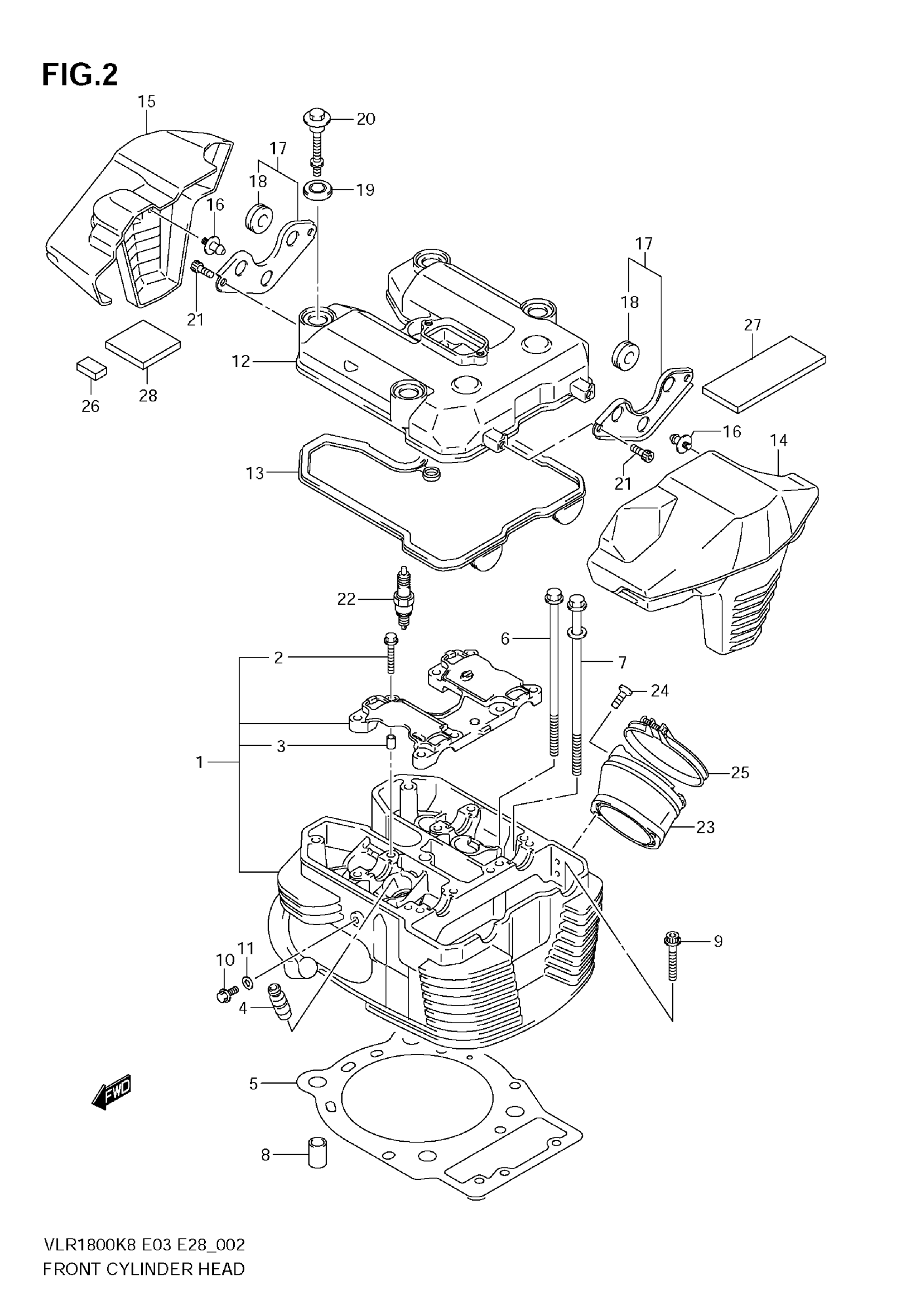

Suzuki VLR1800 (2009) FRONT CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT | Includes Item(s) 2 - 3

11101-48G10

$1,757.87

2

BOLT (6X39)

09103-06026

$1.98

3

PIN

09206-08001

$1.78

4

GUIDE, VALVE (OS 0.3) | OPT

11115-65J00-001

$31.95

5

GASKET

11141-48G00

$46.22

6

BOLT (8X180)

09103-08415

$11.60

7

BOLT (8X190)

09103-10396

$26.28

8

PIN

04211-13189

$2.19

9

BOLT

07120-0670A

Unavailable

10

BOLT, OIL GALLERY

09103-06222

$2.26

11

GASKET

09168-06023

$2.35

12

COVER, CYLINDER HEAD

11170-48G00

Unavailable

13

GASKET

11173-48G00

$27.05

14

CAP, HEAD COVER NO.1

11174-48G10

Unavailable

15

CAP, HEAD COVER NO.2

11175-48G10

Unavailable

16

BOLT

11176-48G00

Unavailable

17

BRACKET | Includes Item(s) 18

11180-48G20

$15.93

18

CUSHION

11183-22H00

Unavailable

19

CUSHION,HEAD COVER BOLT

11192-13E00

$4.34

20

BOLT (6X52)

09111-06091

$22.83

21

BOLT

07130-0612A

$2.50

22

SPARK PLUG, CR7EK (NGK)

09482-00414

$12.50

22

SPARK PLUG, U22ETR (DENSO)

09482-00415

Unavailable

22

SPARK PLUG, CR9EK (NGK) | OPT

09482-00410

$11.59

22

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

$6.09

22

SPARK PLUG, CR8EK (NGK) | OPT

09482-00412

$10.62

22

SPARK PLUG, U24ETR (DENSO) | OPT

09482-00413

$13.17

23

PIPE ASSY, INTAKE

13101-22H00

Unavailable

24

SCREW (6X20.5)

09120-06008

$3.05

25

CLAMP

13170-22H00

Unavailable

26

CUSHION,HEAD COVER CAP

11177-48G00

Unavailable

27

CUSHION, CAP

11177-22H00

Unavailable

28

CUSHION, CAP

33442-41F00

Unavailable
