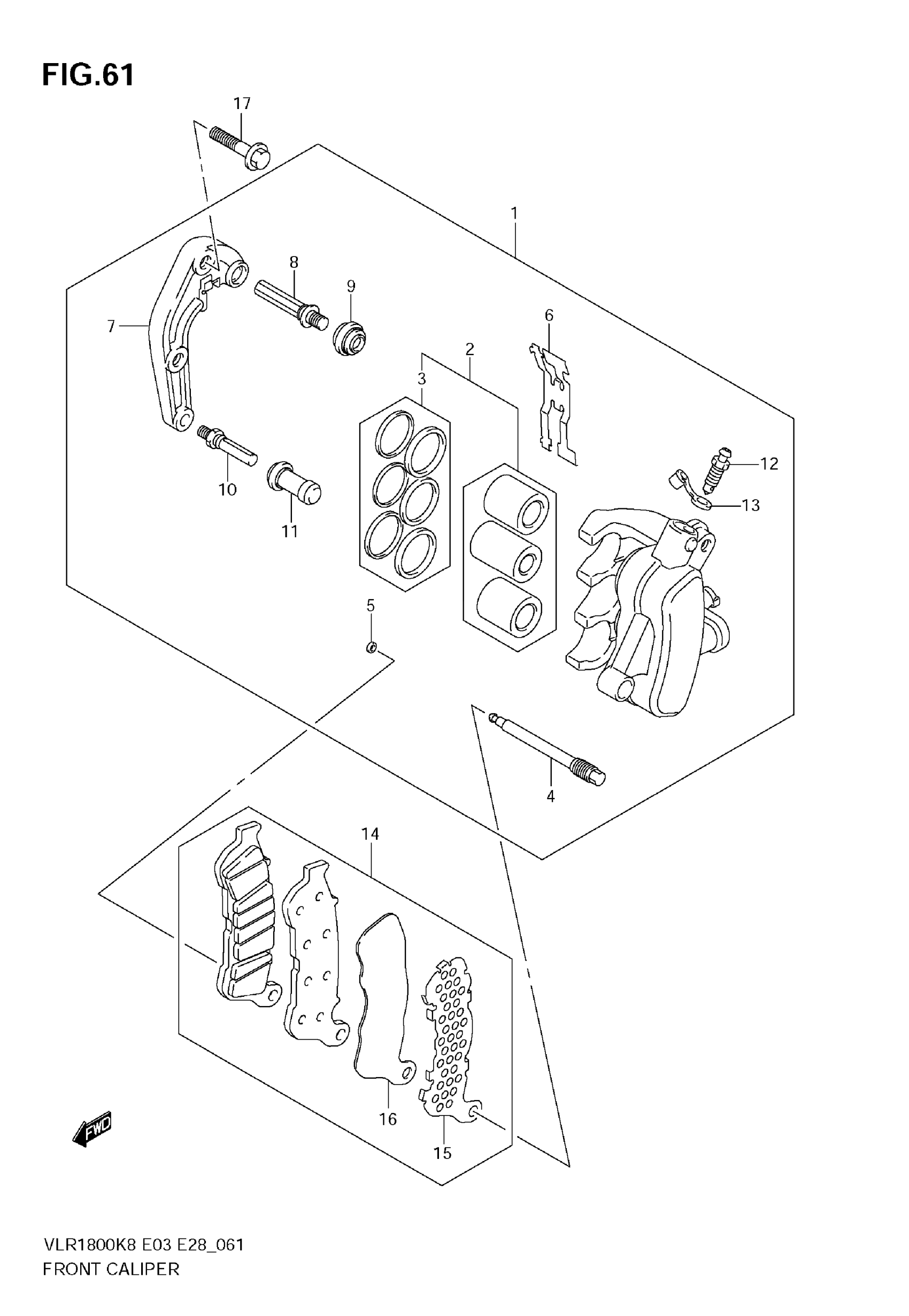

Suzuki VLR1800 (2009) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT, R

59100-22H00-999

Unavailable

1

CALIPER ASSY, FRONT, L | Includes Item(s) 2 - 13

59300-22H00-999

Unavailable

2

PISTON SET

59100-03890

Unavailable

3

SEAL SET, PISTON

59301-14830

Unavailable

4

PIN, PAD

59135-03H00

Unavailable

5

RING, STOPPER

59145-37F00

$5.58

6

SPRING, PAD

59115-03H00

Unavailable

7

BRACKET, R

59150-03H00

Unavailable

7

BRACKET, L

59350-22H00

Unavailable

8

PIN

59187-21E10

$26.73

9

BOOT

59303-14500

$5.52

10

PIN

59382-14500

$8.95

11

BOOT

59386-13A00

$7.95

12

BLEEDER

59121-01A00

$8.73

13

CAP, BLEEDER

59122-01A00

$4.34

14

PAD & RETAINER SET, R

59100-22830

$75.45

14

PAD & RETAINER SET, L | Includes Item(s) 16 - 15

59300-22830

$72.23

16

INSULATOR

59132-22H00

Unavailable

15

RETAINER, R

59372-20H00

Unavailable

15

RETAINER, L

59371-20H00

Unavailable

17

BOLT (8X35)

01550-0835A

$3.04
