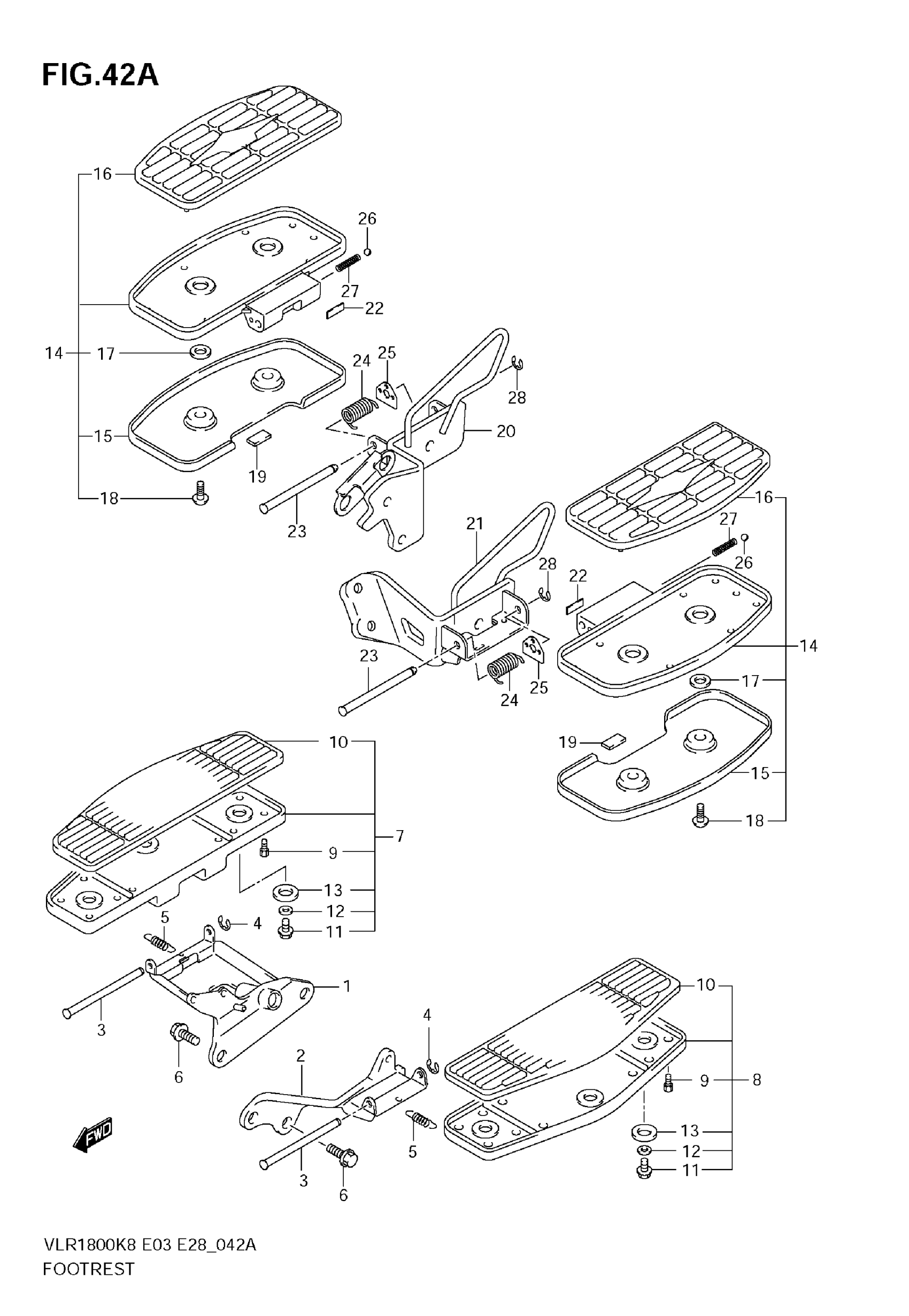

Suzuki VLR1800 (2009) FOOTREST (VLR1800TK9) Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-22H01

Unavailable

2

BRACKET, FRONT FOOTREST LH

43520-22H00

Unavailable

3

PIN,FRONT FOOTREST

43539-10F00

$8.13

4

E RING

08332-1106A

$1.49

5

SPRING

09443-11033

$4.50

6

BOLT

01550-1230B

$4.58

7

FOOTREST ASSY,FRONT RH This part replaces 43501-10F10.

43501-10F12

$209.05

8

FOOTREST ASSY,FRONT LH | Includes Item(s) 9 - 13 This part replaces 43502-10F10.

43502-10F12

$209.05

9

.BOLT,BANK SENSOR

43576-07D01

$8.85

10

RUBBER, FRONT FOOTREST

43550-10F10

Unavailable

11

BOLT

01550-0610B

$2.42

12

WASHER

09160-06158

$2.30

13

.CUSHION This part replaces 09320-10036.

09320-10077

$2.23

14

FOOTREST ASSY, PILLION | Includes Item(s) 15 - 18

43600-22H10

Unavailable

15

PLATE

43632-22H00

Unavailable

16

RUBBER

43670-22H00

Unavailable

17

.CUSHION This part replaces 09320-10036.

09320-10077

$2.23

18

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

19

CUSHION, PLATE

43633-22H00

Unavailable

20

BRACKET, PILLION RH

43810-22H10

Unavailable

21

BRACKET, PILLION LH

43820-22H10

Unavailable

22

CUSHION, FOOTREST

43638-22H00

Unavailable

23

PIN, PILLION

43636-22H00

Unavailable

24

SPRING

43637-22H00

Unavailable

25

PLATE

43816-22H00

Unavailable

26

BALL

06111-07004

$1.49

27

SPRING

09440-05003

$1.49

28

E RING

08332-1106A

$1.49
