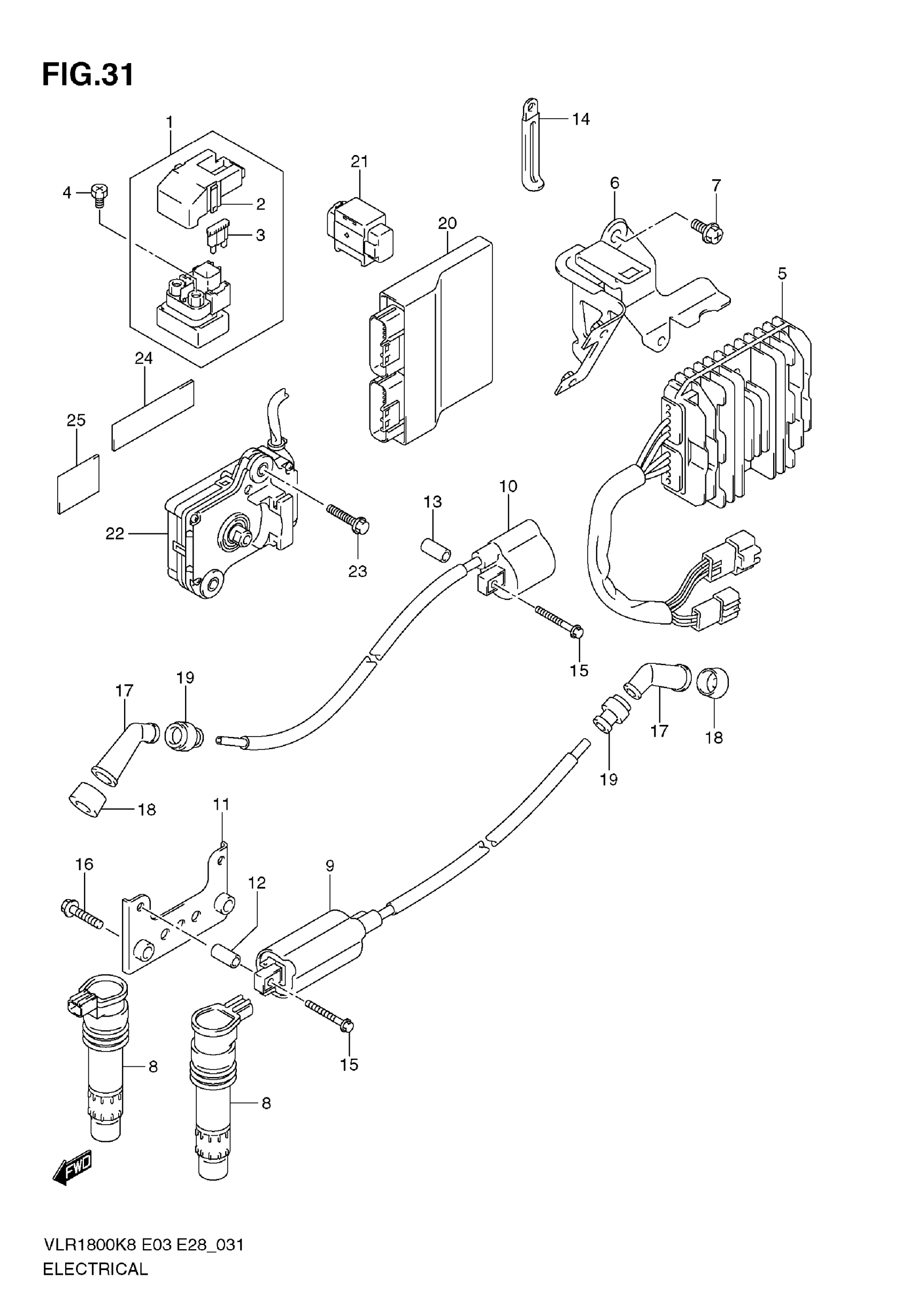

Suzuki VLR1800 (2009) ELECTRICAL Diagram

RELAY ASSY,STAR | Includes Item(s) 2 - 3 This part replaces 31800-06G10.

31800-06G11

$89.03

COVER

31861-47E00

$16.15

FUSE (30A)

09481-30101

$2.26

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.49

RECTIFIER ASSY This part replaces 32800-10G10.

32800-10G20

$271.06

BRACKET, RECT FTG

32830-22H00

Unavailable

BOLT (8X12)

01550-0812A

$2.32

COIL ASSY,IGNITION This part replaces 33410-35F10.

33410-35F11

$142.65

COIL ASSY, IGNITION FRONT

33420-26F10

Unavailable

COIL ASSY, IGNITION REAR

33410-22H00

Unavailable

BRACKET, IGNITION COIL

33414-22H00

Unavailable

SPACER, IGNITION FRONT | 6.4X10X18

09180-06195

$3.68

SPACER, IGNITION REAR | 6.2X12X16

09180-06198

$4.32

CLAMP(L:80) | FOR RECTIFIER This part replaces 09404-06433.

09404-06036

$1.74

BOLT, IGNITION COIL

01547-0535A

Unavailable

BOLT, IGNITION COIL BRKT

01550-0625A

$1.97

CAP ASSY, SPARK PLUG

33510-20E00

$34.60

SEAL, SPARK PLUG

33541-47D00

$7.83

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

CONTROL UNIT,FI This part replaces 32920-22H10.

32920-22H11

$2,073.20

CONTROL, UNIT, FI | E33

32920-22H20

Unavailable

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

ACTUATOR ASSY This part replaces 33970-41G00.

33970-41G02

$584.90

BOLT, ACTUATOR

01560-0625A

$2.72

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$3.70

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03
