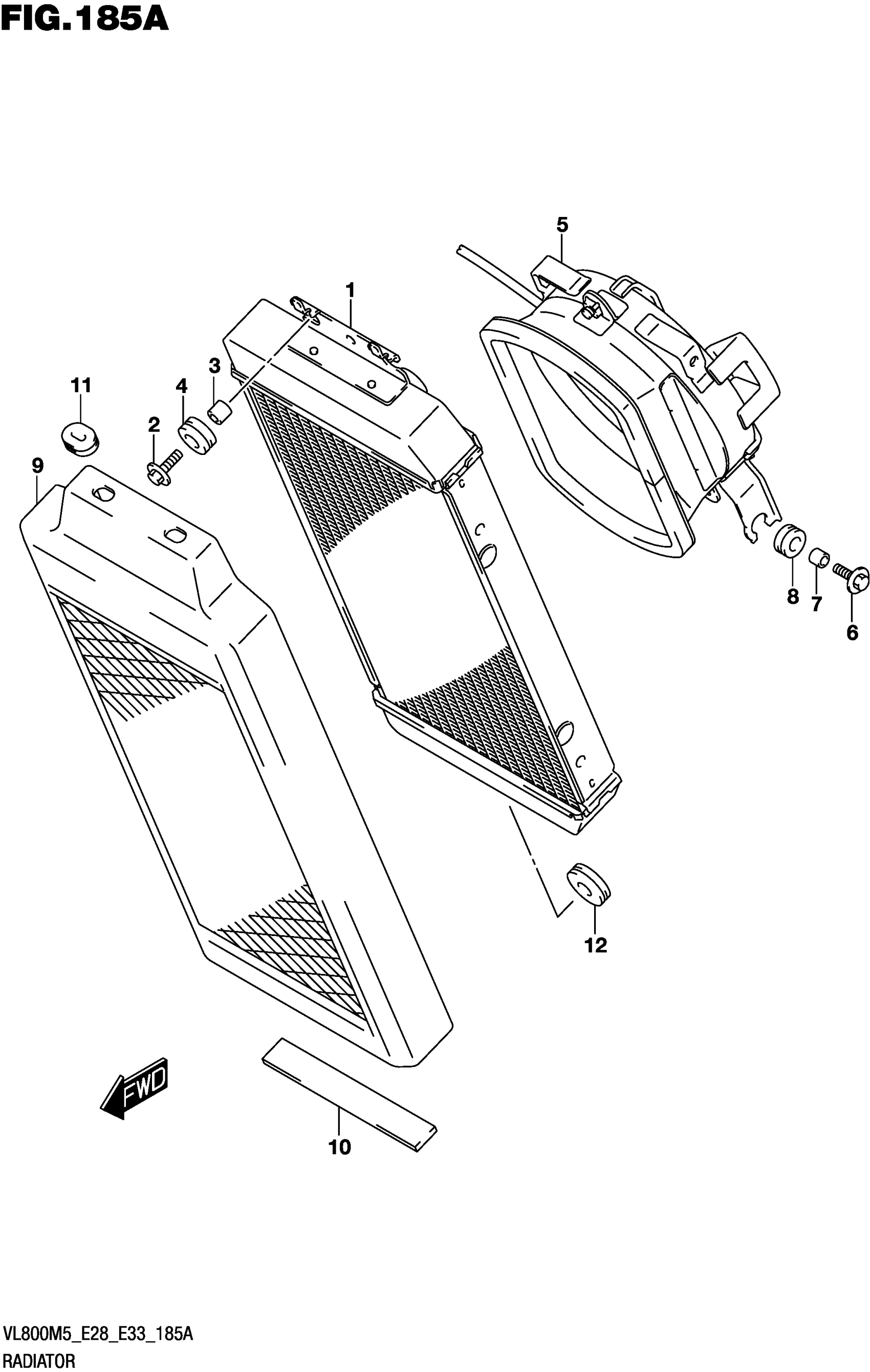

Suzuki VL800M5 (2025) RADIATOR Diagram

#

Description

Price

1

RADIATOR ASSY,WATER

17710-41F20

$1,140.25

2

BOLT (6X20)

09116-06201

$2.72

3

SPACER (6.5X10X10)

09180-06310

$1.91

4

CUSHION

09320-10501

$6.23

5

FAN ASSY,RADIATOR

17800-41F20

$697.98

6

BOLT (6X20)

09116-06201

$2.72

7

SPACER (6.5X10X10)

09180-06310

$1.91

8

CUSHION

09320-10055

$4.50

9

COVER,RDTR

17760-41F00

$53.18

10

CUSHION,RDTR COVER INNER

17798-39G00

$6.49

11

CUSHION

09320-03004

$2.12

12

CUSHION (8X26X7)

09320-08514

$2.47
