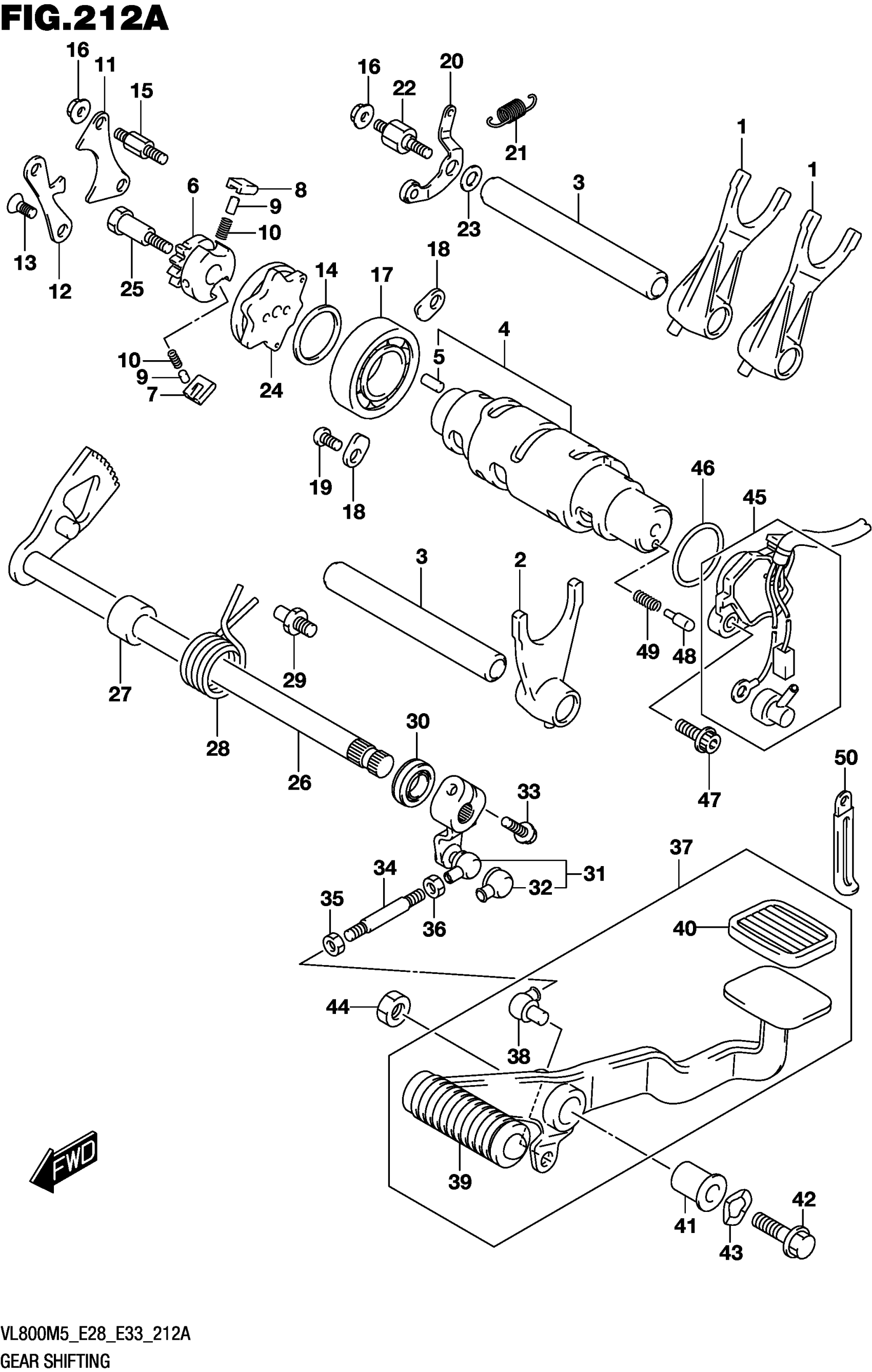

Suzuki VL800M5 (2025) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT,NO.1

25211-38A10

Unavailable

2

FORK,GEAR SHIFT,NO.2

25221-38A10

Unavailable

3

SHAFT, GEAR SHIFT FORK (L:115

25411-38A00

$29.25

4

CAM,GEAR SHIFT

25310-41F00

$265.62

5

PIN (4X13.8)

04221-04089

$1.49

6

GEAR, GEAR SHIFT CAM DRIVEN | :13)

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

PIN (5X8)

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER,GEAR SHIFT POLE

25331-38A00

Unavailable

12

GUIDE,GEAR SHIFT CAM

25341-38A00

Unavailable

13

SCREW (6X12)

09126-06011

$2.03

14

WASHER (25X32X3)

09160-25059

$6.63

15

BOSS,SHIFT POLE LIFTER

25332-38A10

Unavailable

16

NUT (6X12)

08316-1006A

$2.19

17

BEARING (25X47X8)

09262-25006

$25.54

18

RETAINER

24741-21A00

$2.81

19

SCREW (6X12)

09125-06122

$2.44

20

STOPPER,GEAR SHIFT CAM

25350-38A00

Unavailable

21

SPRING

09443-09027

$3.93

22

SUPPORT,CAM STOPPER ARM

25355-38A10

Unavailable

23

WASHER

08211-06141

$1.59

24

PLATE,GEAR SHIFT CAM

25380-38A02

$17.62

25

PIN,SHIFT CAM DRIVEN GEAR

25312-38A00

$6.28

26

SHAFT,GEAR SHIFT

25510-38A00

$107.25

27

SPACER (12X20X15.3)

09180-12068

$3.16

28

SPRING

09444-26013

$3.10

29

STOPPER,GEAR SHIFT ARM

25671-01011

$4.48

30

OIL SEAL (12X22X9)

09285-12006

$6.32

31

ARM,GEAR SHIFT LINK

25520-38B01

$43.85

32

.COVER, DUST

25526-47001

$5.44

33

BOLT

01547-0620A

$2.03

34

ROD,GEAR SHIFT LINK

25525-41F00

$9.15

35

NUT

09140-06011

$1.49

36

NUT

08310-0006A

$1.84

37

LEVER ASSY,GEAR SHIFT

25600-41F21

$138.28

38

.COVER, DUST

25526-47001

$5.44

39

.RUBBER

25652-10F00

$6.58

40

.RUBBER

43151-01400

$6.00

41

SPACER,GEAR SHIFT LEVER

25617-41F00

$22.75

42

BOLT (10X40)

09103-10300

$6.28

43

WASHER

09164-18009

$2.38

44

NUT

08310-0010A

$1.84

45

BASE ASSY,GEAR SHIFT TERM

37730-41F02

$130.87

46

O-RING (D:2.4,ID:26.2)

09280-26005

$2.30

47

BOLT

07120-0516A

$2.28

48

PIN (5X15.5)

09209-05011

$2.20

49

SPRING

09440-04010

$1.54

50

CLAMP (L:80)

09404-06030

Unavailable
