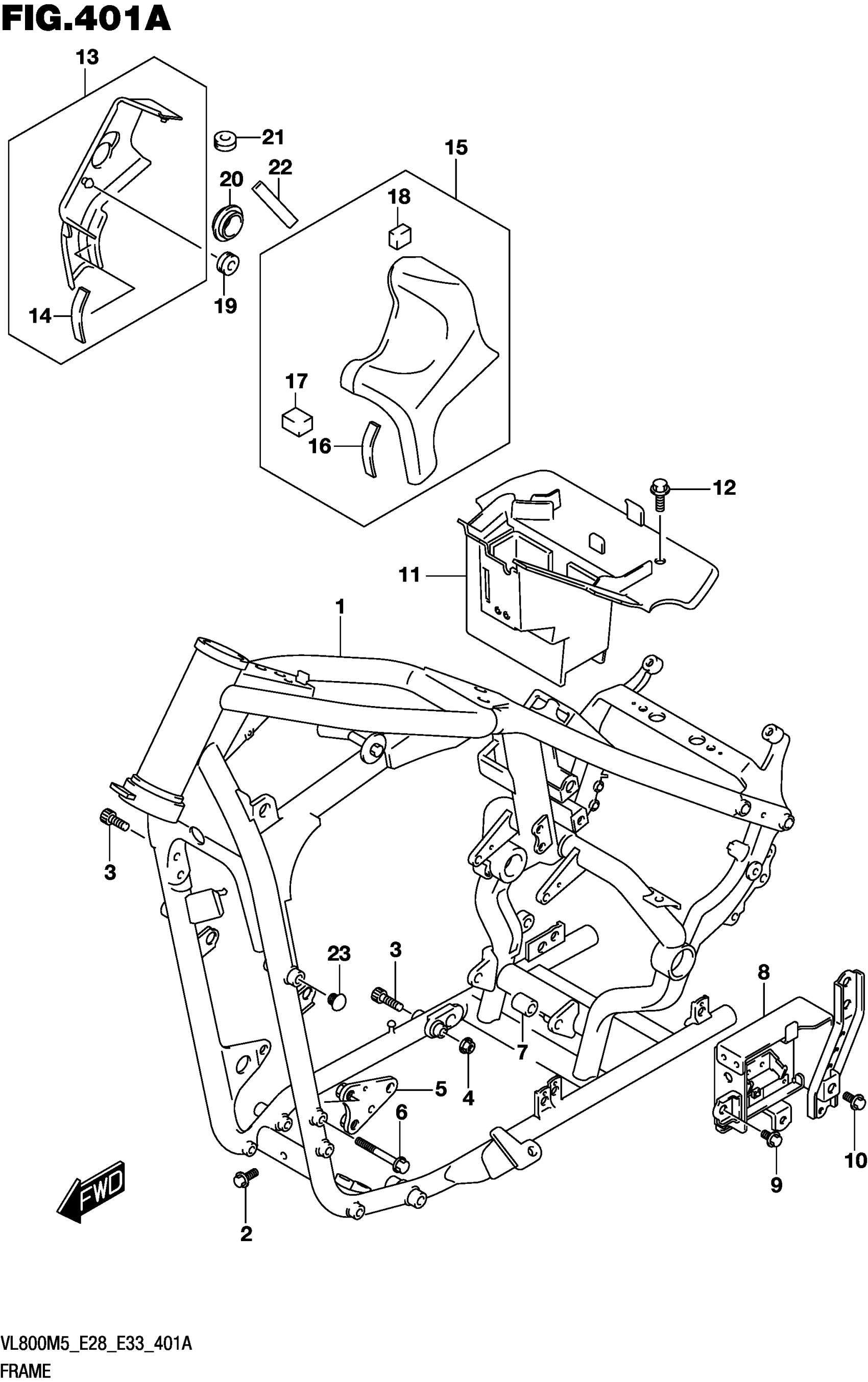

Suzuki VL800M5 (2025) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-41F80-019

$3,745.05

2

BOLT (8X16)

01550-0816A

$2.32

3

BOLT

07130-1035B

$5.18

4

NUT

08319-3110B

$3.87

5

PLATE,ENG MOUNT NO.1 LH

41920-41F00

Unavailable

6

BOLT (8X65)

09112-08013

Unavailable

7

SPACER,ENG MTG LOWER

41941-41F00

Unavailable

8

HOLDER,ELECTRIC PARTS

41540-41F30

Unavailable

9

BOLT

01547-0612A

$2.03

10

BOLT (8X16)

01550-0816A

$2.32

11

HOLDER,ELECTRIC PARTS

47410-41F02

Unavailable

12

BOLT (6X16)

09113-06010

$3.27

13

COVER,FRAME HEAD,R (BLACK)

47350-41F30-019

$74.35

14

.CUSHION (12X65X2)

53145-40A00

$2.30

15

COVER,FRAME HEAD,L (BLACK)

47360-41F40-019

$70.98

16

.CUSHION (12X65X2)

53145-40A00

$2.30

17

.CUSHION, FR FENDER SIDE

53146-05G00

$7.27

18

CUSHION (20X30X8)

94422-06G00

$5.82

19

CUSHION (8x26x7)

09320-08018

$3.04

20

CAP

47355-41F01

$7.57

21

CUSHION (9X18X10)

09320-09501

$2.03

22

CUSHION This part replaces 17129-16F00.

17798-39G00

$6.49

23

CAP

09250-09008

$1.54
