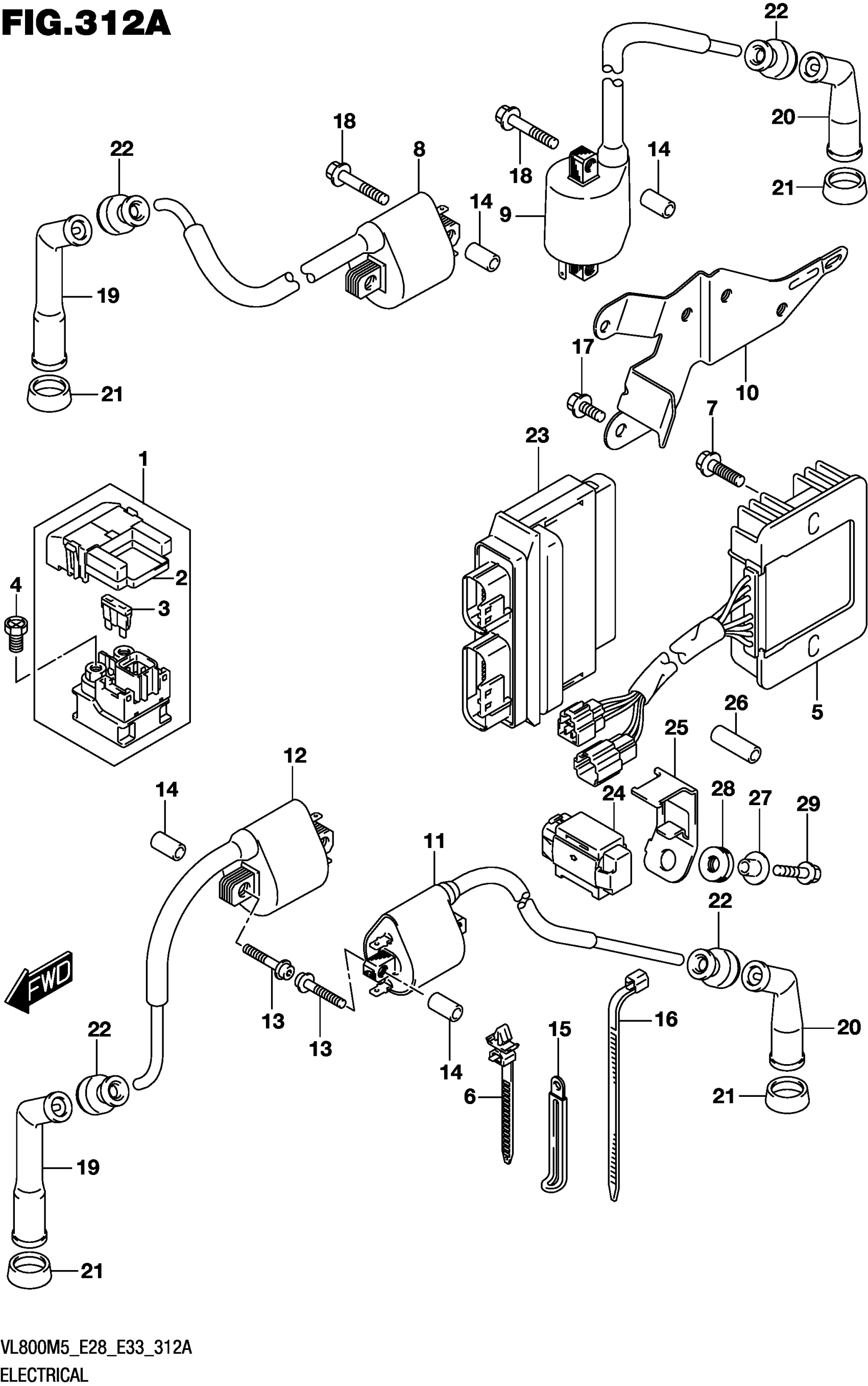

Suzuki VL800M5 (2025) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-21E30

$67.32

2

.COVER

31861-47E00

$16.15

3

.FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-47H00

$263.17

6

CLAMP (L:90)

09407-11402

$1.80

7

SCREW

02162-0620B

$2.28

8

COIL ASSY,IGNITION RR

33410-39G01

$75.08

9

COIL ASSY,IGNITION RR

33410-39G11

$75.08

10

BRACKET,IGN COIL REAR

33414-39G00

Unavailable

11

COIL ASSY,IGNITION FR | FOR FS

33420-39G01

$75.08

12

COIL ASSY,IGNITION

33420-41F11

$86.43

13

BOLT (5X35)

09106-05033

$3.50

14

SPACER (6.4X10X18)

09180-06195

$3.68

15

CLAMP (L:80)

09404-06030

Unavailable

16

CLAMP (L:190)

09407-19401

$3.05

17

BOLT

01547-0610A

$2.45

18

BOLT

01547-0635A

$2.30

19

CAP ASSY, SPARK PLUG (CENTER)

33510-11410

$25.95

20

CAP,SPARK PLUG (SIDE)

33510-38B00

$31.72

21

SEAL,SPARK PLUG

33541-47D00

$7.83

22

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

23

CONTROL UNIT,FI

32920-39GJ0

$1,049.63

24

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

25

BRACKET,FUEL CUT SENSOR

33961-41F00

Unavailable

26

CUSHION,FUEL CUT SNSR BRKT

09352-50005-010

$2.32

27

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

28

CUSHION (8X18X5.8)

09320-08516

$2.45

29

BOLT

01547-0616A

$2.03
