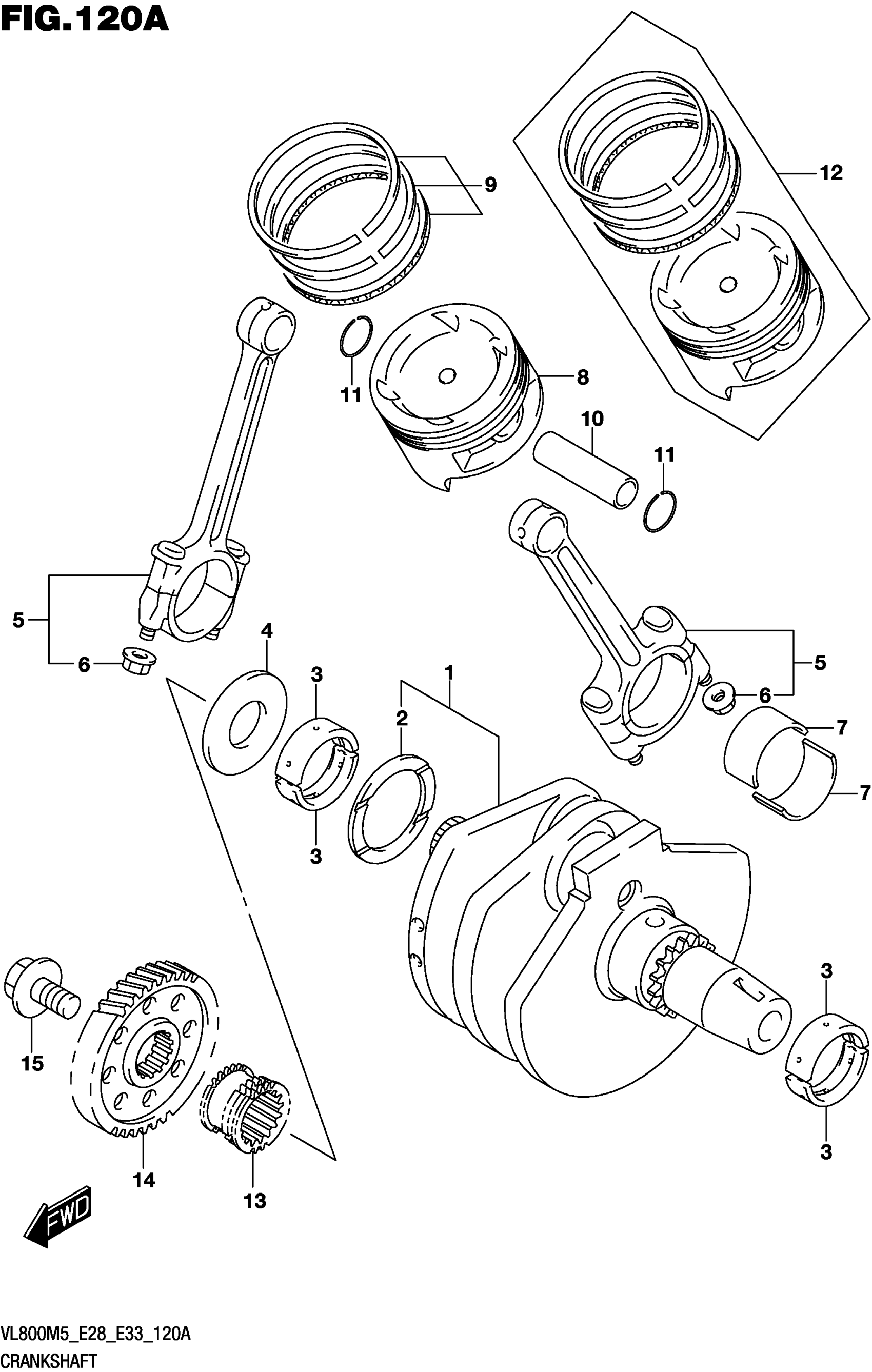

Suzuki VL800M5 (2025) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET

12000-41830

$1,356.75

2-1

.WASHER (1X64X1.94)

09160-48001

Unavailable

2-2

.WASHER (1X64X1.96)

09160-48002

Unavailable

2-3

.WASHER (1X64X1.99)

09160-48003

Unavailable

2-4

.WASHER (1X64X2.01)

09160-48004

Unavailable

2-5

.WASHER (1X64X2.04)

09160-48005

Unavailable

2-6

.WASHER (1X64X2.06)

09160-48006

$30.35

2-7

.WASHER (1X64X2.09)

09160-48007

Unavailable

2-8

.WASHER (1X64X2.11)

09160-48008

Unavailable

2-9

.WASHER (1X64X2.14)

09160-48009

Unavailable

2-10

.WASHER (1X64X2.16)

09160-48010

$30.35

3-1

BEARING,CRANKSHAFT

12229-39G00-0A0

$17.28

3-2

BEARING,CRANKSHAFT

12229-39G00-0B0

$17.28

3-3

BEARING,CRANKSHAFT

12229-39G00-0C0

$17.28

4

WASHER,CRANK THRUST

12652-38A00

$81.72

5

CONNROD ASSY

12160-45C30

$185.15

6

.NUT

09159-09001

$4.68

7-1

BEARING,CRANK PIN

12164-38E00-0A0

$13.77

7-2

BEARING,CRANK PIN

12164-38E00-0B0

$11.50

7-3

BEARING,CRANK PIN

12164-38E00-0C0

$11.50

7-4

BEARING,CRANK PIN

12164-38E00-0D0

$14.02

7-5

BEARING,CRANK PIN

12164-38E00-0E0

$14.02

8

PISTON

12111-41F10-0F0

$103.09

9

RING SET PISTON

12140-41F00

$43.70

10

PIN,PISTON

12151-24A00

$22.03

11

CIRCLIP

09381-20004

$1.65

12

PISTON SET (OS:0.5)

12100-41F10-050

$179.57

13

SPROCKET,CAM CHAIN DRIVE,R (N | :21)

12731-38A00

$59.07

14

GEAR,PRIMARY DRIVE (NT:42)

21111-38A00

Unavailable

15

BOLT (12X28)

09103-12013

$8.83
