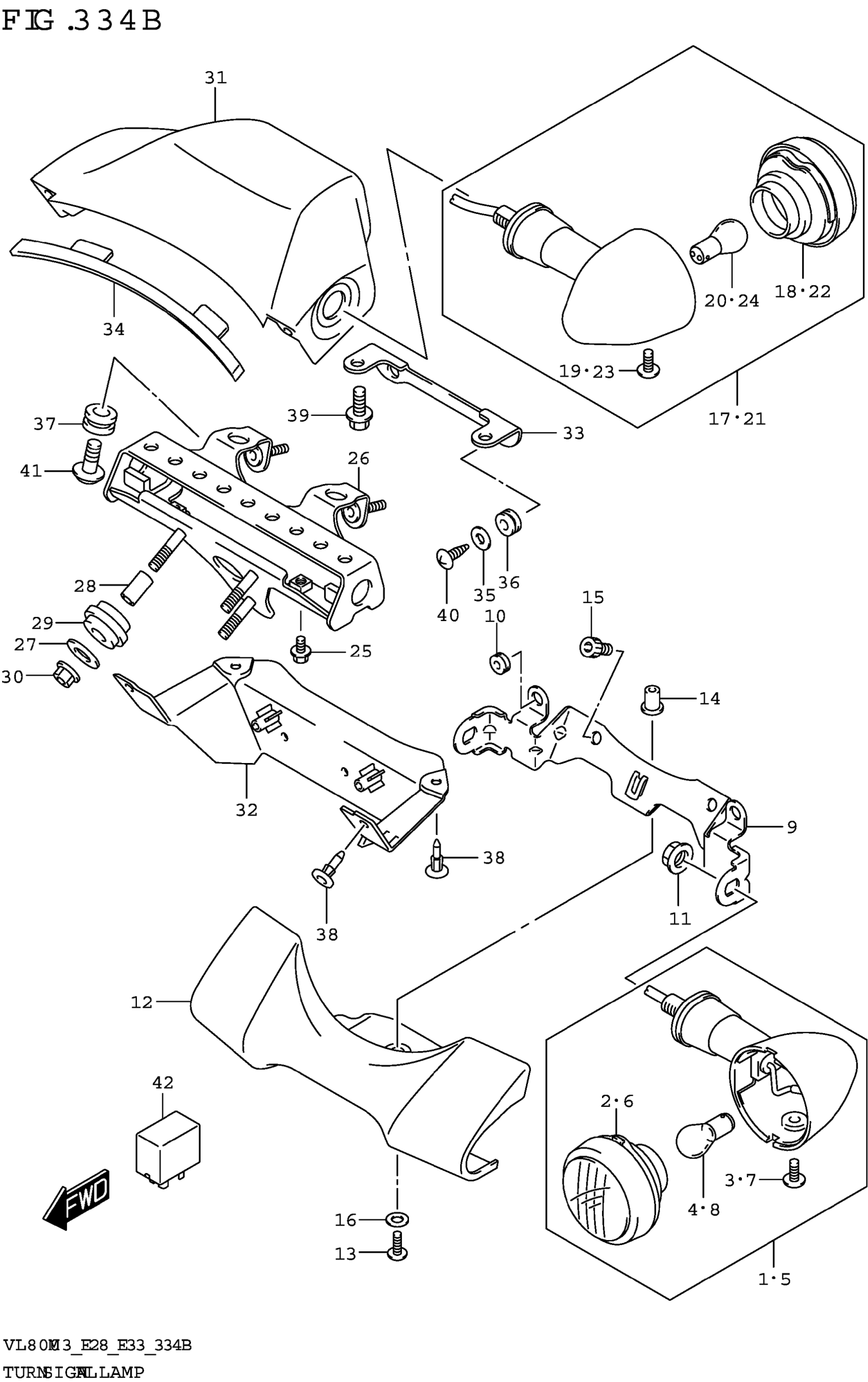

Suzuki VL800M3 (2023) TURNSIGNAL LAMP (E28) Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R

35601-48E70

$152.42

2

.LENS

35610-38AA0

$31.91

3

.SCREW (4X10)

35623-38AA0

$5.11

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

5

LAMP ASSY,FRONT TURNSIGNAL,L

35602-48E70

$155.28

6

.LENS

35630-38AA0

$31.91

7

.SCREW (4X10)

35623-38AA0

$5.11

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

9

BRACKET

35616-41FA3

$60.63

10

CUSHION (6.5X14X6)

09320-06027

$2.10

11

NUT

08310-0010B

$2.70

12

COVER,FRONT TURNSIGNAL

35641-41F02

$90.20

13

SCREW (5X16)

09139-05042

$2.90

14

NUT (M5)

09159-05019

$7.14

15

BOLT

07130-0812A

$3.72

16

WASHER

09160-05048

$2.02

17

LAMP ASSY,REAR TURNSIGNAL RH

35603-38AH0

$140.17

18

.LENS

35610-38AH0

$39.00

19

.SCREW (4X10)

35623-38AA0

$5.11

20

.BULB (12V21W)

09471-12045

$3.27

21

LAMP ASSY,REAR TURNSIGNAL LH

35604-38AH0

$134.90

22

.LENS

35630-38AH0

$39.00

23

.SCREW (4X10)

35623-38AA0

$5.11

24

.BULB (12V21W)

09471-12045

$3.27

25

BOLT (6X14)

09103-06507

$4.32

26

BRACKET,REAR TURNSIGNAL

35620-43H01

$53.98

27

WASHER (6.5X20X1.2)

09160-06077

$1.91

28

SPACER (6.4X10X18)

09180-06195

$3.68

29

CUSHION

09320-10504

$5.78

30

NUT (6X12)

08316-1006A

$2.19

31

COVER,REAR TURNSIGNAL UPPER

35621-43H50

Unavailable

32

COVER,REAR TURNSIGNAL LWR

35622-43HB0

Unavailable

33

BRACKET,REAR TURNSIGNAL COVER

35623-43H00

$10.58

34

GASKET,REAR TURNSIGNAL COVER

35657-43H00

$8.28

35

WASHER (4.3X14X0.8)

09160-04022

$2.15

36

CUSHION (6.5X14X6)

09320-06027

$2.10

37

CUSHION (8.4X18X6)

09320-08066

$8.24

38

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

39

BOLT

01550-0612A

$1.97

40

SCREW

03541-0412A

$1.49

41

SCREW

03541-0510A

$1.49

42

RELAY ASSY,TURNSIGNAL LAMP

38610-03F01

$87.08
