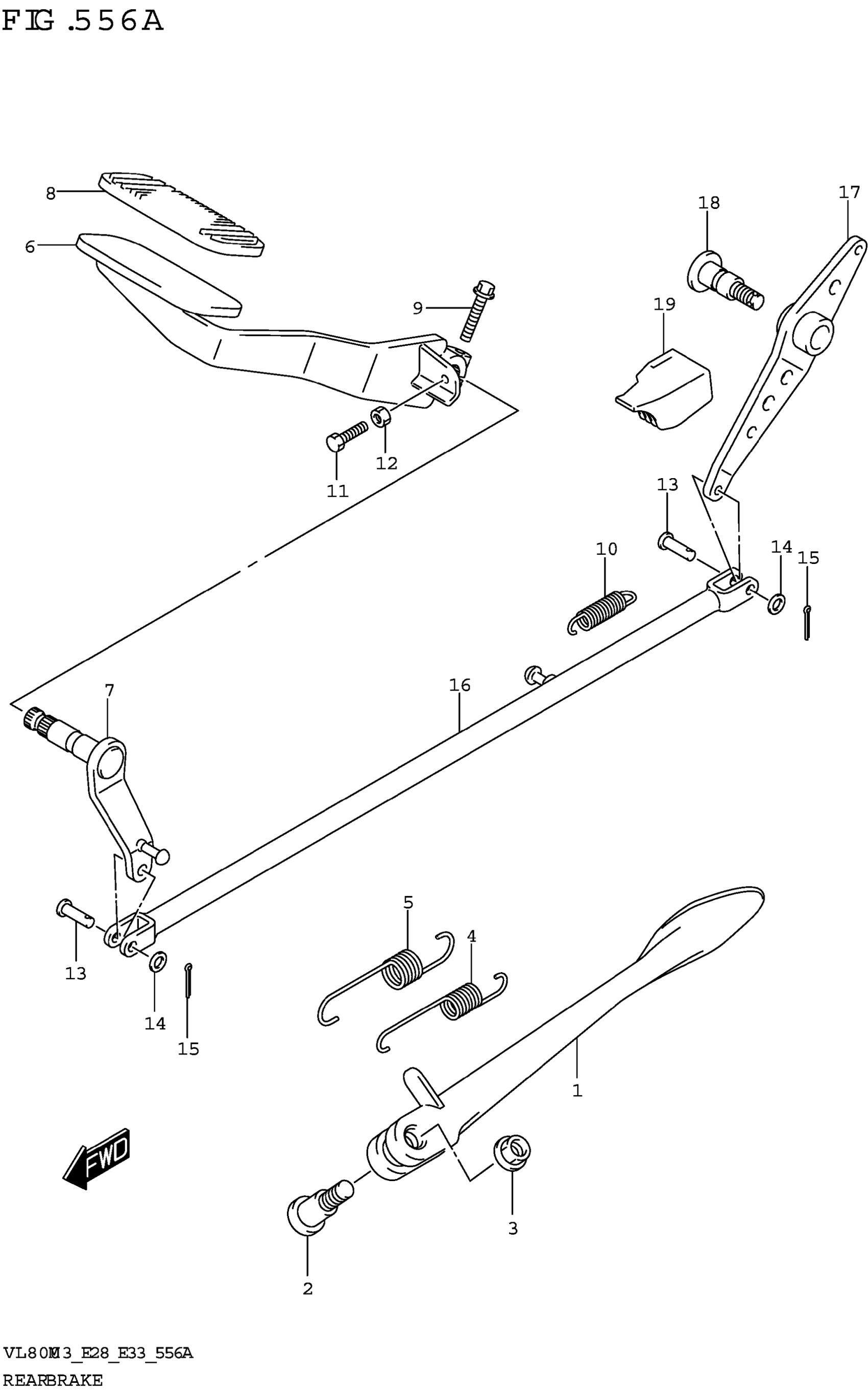

Suzuki VL800M3 (2023) REAR BRAKE Diagram

#

Description
Price

1

STAND,PROP

42310-41F01

$185.53

2

BOLT (10X37.5)

09111-10058

$6.66

3

NUT, PROP STAND

42321-03FK0

$5.17

4

SPRING

09443-14066

$5.50

5

SPRING

09443-19012

$5.89

6

PEDAL,BRAKE

43110-41F11

$173.57

7

ARM,BRAKE ROD

43120-41F00

$52.65

8

RUBBER,BRAKE PEDAL

43151-10F01

$7.68

9

BOLT

07120-0625A

$2.50

10

SPRING

09443-12051

$6.70

11

BOLT

01500-06207

$2.28

12

.NUT

08310-00067

$2.13

13

PIN (6X18.2)

09200-06068

$4.11

14

WASHER

08322-0106B

$2.26

15

PIN

04111-2015A

$1.49

16

ROD,RR BRAKE FRONT

43130-41F00

$62.07

17

LINK,REAR BRAKE

43140-41F00

$61.15

18

SHAFT, BRAKE PEDAL

43142-27C00

$23.07

19

RUBBER,BRAKE LINK

43151-41F01

$8.62
