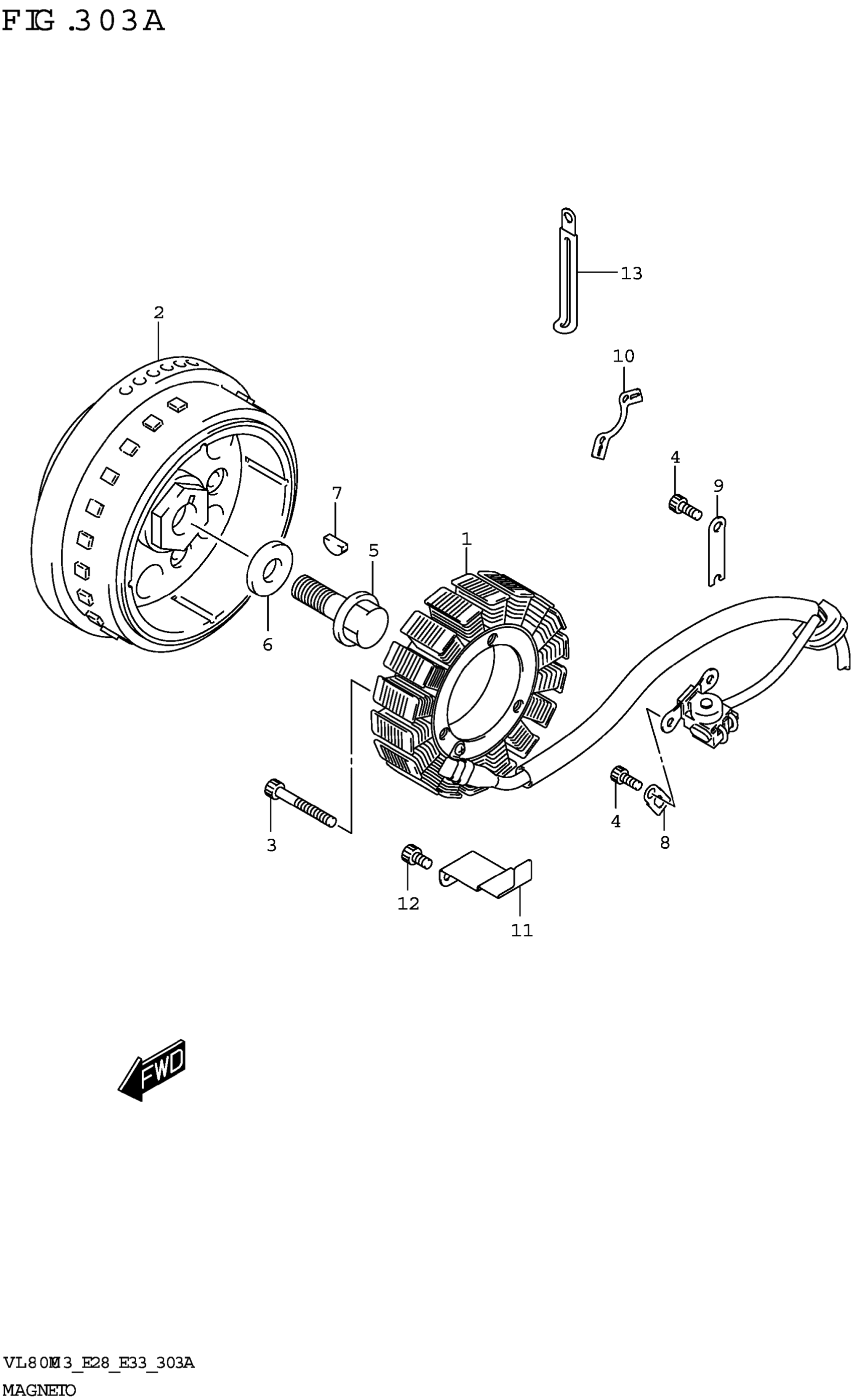

Suzuki VL800M3 (2023) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY

32101-41F10

$518.08

2

ROTOR ASSY

32102-41F10

$649.62

3

BOLT

07130-0640A

Unavailable

4

BOLT

07130-0510A

$2.68

5

BOLT (14X43)

09103-14001

$11.82

6

WASHER (14X29X4.0)

09160-14021

$6.63

7

KEY

09420-05007

$4.60

8

CLAMP,MAGNETO LEAD

31497-45000

$1.92

9

CLAMP,NO.1,MAGNETO READ WIRE

32371-38A10

Unavailable

10

CLAMP,MAGNETO LEAD

32371-41F00

Unavailable

11

CLAMP,MAGNETO LEAD WIRE

32371-45C00

$4.58

12

BOLT

07130-0610A

Unavailable

13

CLAMP (L:80)

09404-08422

$2.65
