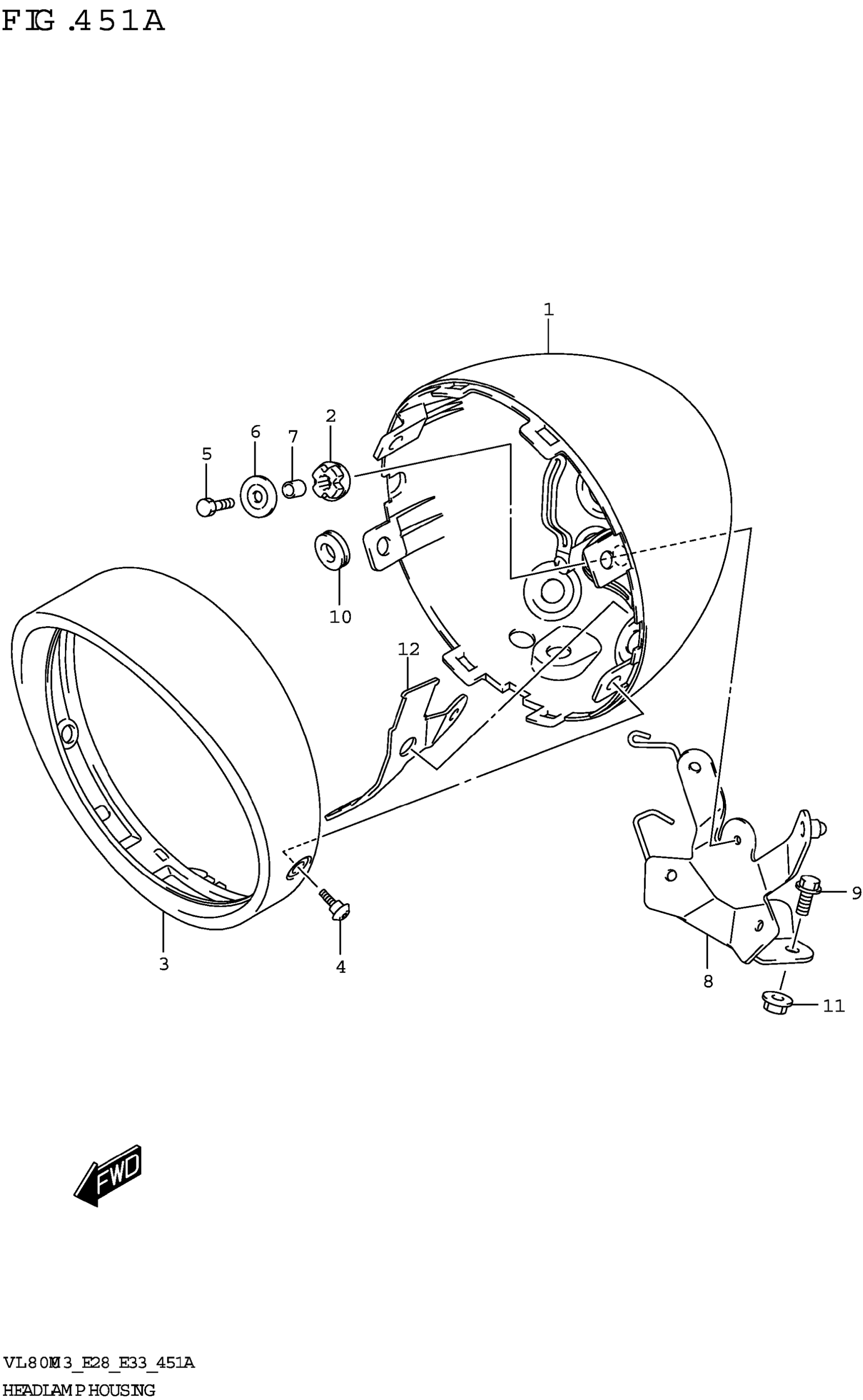

Suzuki VL800M3 (2023) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING,HEADLAMP

51811-06J00

$169.48

2

CUSHION

09320-09010

$2.84

3

COVER,HEADLAMP HSG

51821-06J00

$94.38

4

SCREW (5X16)

09139-05077

$3.25

5

BOLT

01500-0625A

$1.78

6

WASHER (6.5X20X1.2)

09160-06152

$2.28

7

SPACER (6.5X9X10)

09180-06307

$3.05

8

BRACKET,HEADLAMP HSG

51850-43H00

$77.77

9

BOLT

01550-0825B

$2.92

10

CUSHION (8X26X7)

09320-08028

$3.04

11

NUT

08319-3108B

$2.73

12

PLATE,HEADLAMP HSG

51859-43H00

$4.28
