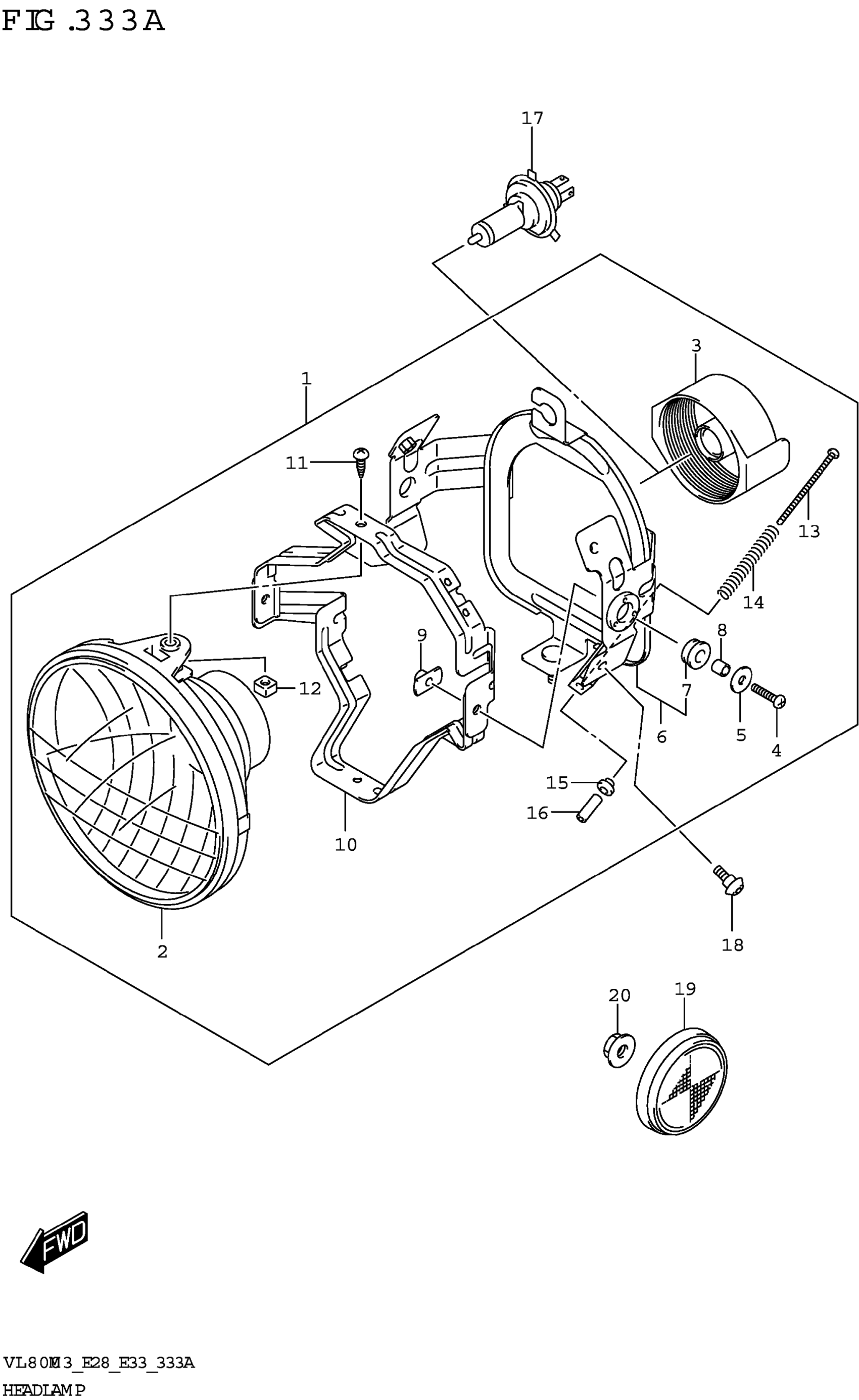

Suzuki VL800M3 (2023) HEADLAMP Diagram

#

Description
Price

1

.HEADLAMP ASSY

35100-06J31-999

$324.75

2

..UNIT

35121-10FB0

$201.52

3

.COVER,SOCKET

35174-19F00

$30.22

4

..SCREW

02122-0520A

$2.27

5

WASHER (5.5X18X1.0)

09160-05045

$1.93

6

..BRACKET

35140-06J02

$130.38

7

...CUSHION

35139-38A60

$4.10

8

..SPACER

35133-45230

$3.30

9

..NUT

35155-10FA0

$5.98

10

..BRACKET

35130-10FA0

$63.90

11

.SCREW (5X16)

35181-19F00

$3.25

12

.NUT

35135-45900

$3.25

13

..SCREW,ADJUSTER

35151-10FA0

$11.37

14

..SPRING,ADJUSTER

35154-10FA0

$5.98

15

.NUT

35152-45600

$3.47

16

..COVER

35158-10FA0

Unavailable

17

.BULB (12V60/55W,H4)

09471-12060

$25.15

18

BOLT (6X12)

09111-06107

$2.60

19

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

20

NUT

08316-1005B

$2.50
