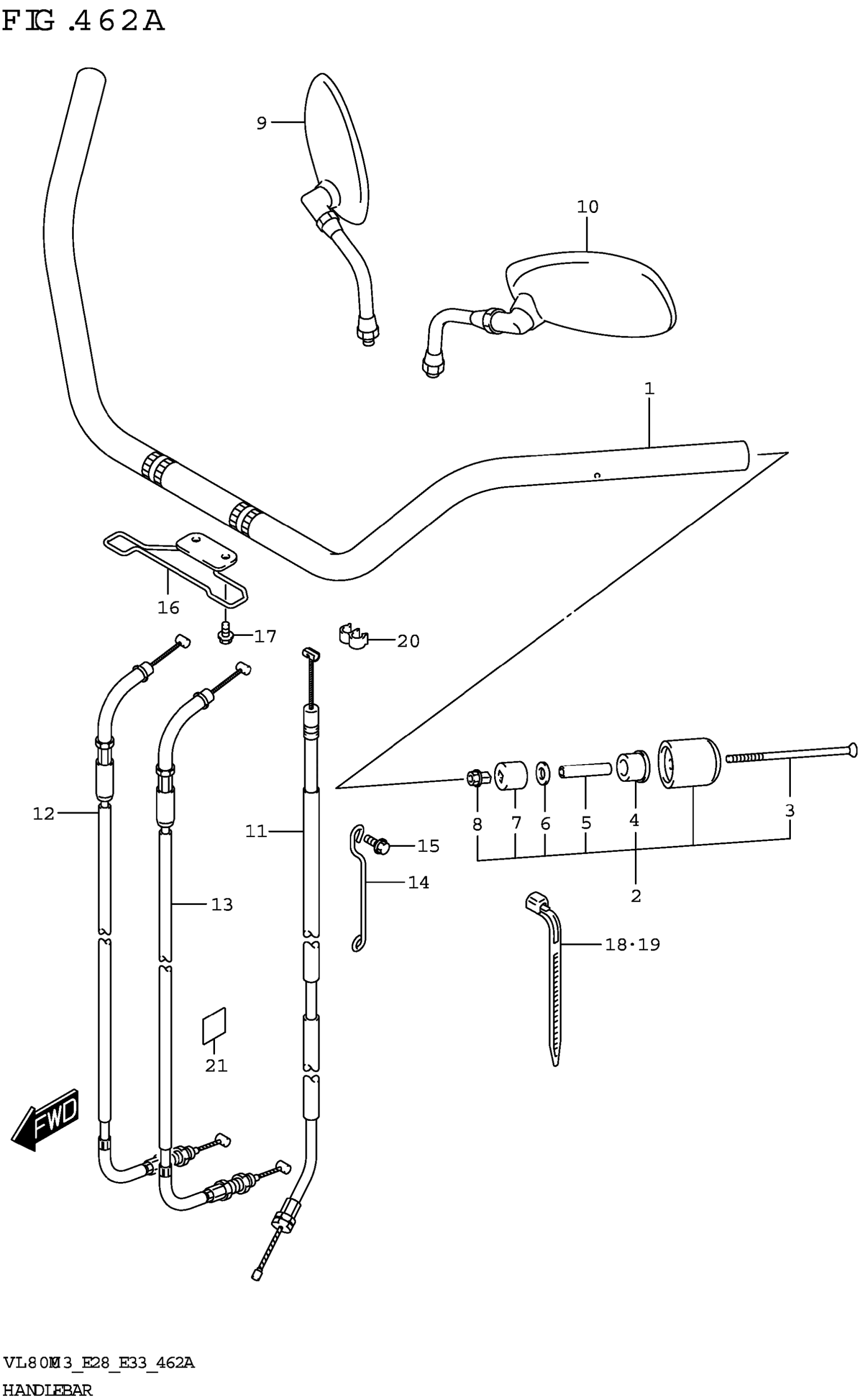

Suzuki VL800M3 (2023) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-41F30

$235.03

2

BALANCER SET,HANDLEBAR

56200-10892

$57.38

3

.SCREW (6X127)

09127-06017

$2.78

4

.EXPANDER,HANDLE BALANCER,NO.

56272-26D01

$7.25

5

.SPACER,EXPANDER

56276-17D00

$5.07

6

.WASHER (6.5X16X4)

09160-06131

$2.50

7

.EXPANDER,HANDLE BALANCER

56272-10G10

$4.73

8

.NUT,HANDLE BALANCER

56273-10G10

$8.65

9

MIRROR ASSY,REAR VIEW RH

56500-41F01

$84.38

10

MIRROR ASSY,REAR VIEW LH

56600-41F01

$84.38

11

CABLE ASSY,CLUTCH

58200-41F30

$84.50

12

CABLE ASSY,THROTTLE NO.1

58300-43H01

$39.48

13

CABLE ASSY,THROTTLE NO.2

58300-43H11

$32.82

14

GUIDE,THROTTLE CABLE

58626-41F01

$6.08

15

BOLT

01550-0616A

$1.97

16

GUIDE,CABLE

58620-41F00

Unavailable

17

BOLT

01550-0612A

$1.97

18

CLAMP (L:190)

09407-19401

$3.05

19

CLAMP (L:300)

09407-30401

$5.72

20

CLIP

09408-00244

$2.83

21

PROTECTOR (25X25X0.2)

87873-56K50

$9.90
