Description

Price

1-1

TANK ASSY,FUEL (GRAY) | BODY COLOR:YUD

44100-43H50-YUD

$1,089.37

1-2

TANK ASSY,FUEL (RED) | BODY COLOR:YYG

44100-43H50-YYG

$1,070.93

2-1

.EMBLEM SET,FUEL TANK | BODY COLOR:YUD

68110-43H10-B89

$52.97

2-2

.EMBLEM SET,FUEL TANK | BODY COLOR:YYG

68110-43H10-B9A

$52.97

3

CAP SET,FUEL TA This part replaces 44200-41841.

44200-41842

$124.15

4

CUSHION

09329-10026

$1.91

5

CUSHION,FUEL TANK LWR

44541-14F11

$4.34

6

CLAMP This part replaces 09407-20405.

09407-25402

$4.19

7

CUSHION,FUEL TANK RR LWR

44542-41F01

$8.02

8

CUSHION,FUEL TANK RR UPR

44541-41F02

$4.97

9

SPACER (8.2X12.5X23.5)

09180-08227

$2.07

10

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.58

11

BOLT (8X35)

01550-0835A

$2.80

12

GAUGE ASSY,FUEL This part replaces 34810-41F11.

34810-41F12

$116.39

13

SHIELD,FUEL TANK HEAT

44192-39G00

$166.93

14

SHIELD,FUEL TANK HEAT NO.2

44191-43H00

$98.98

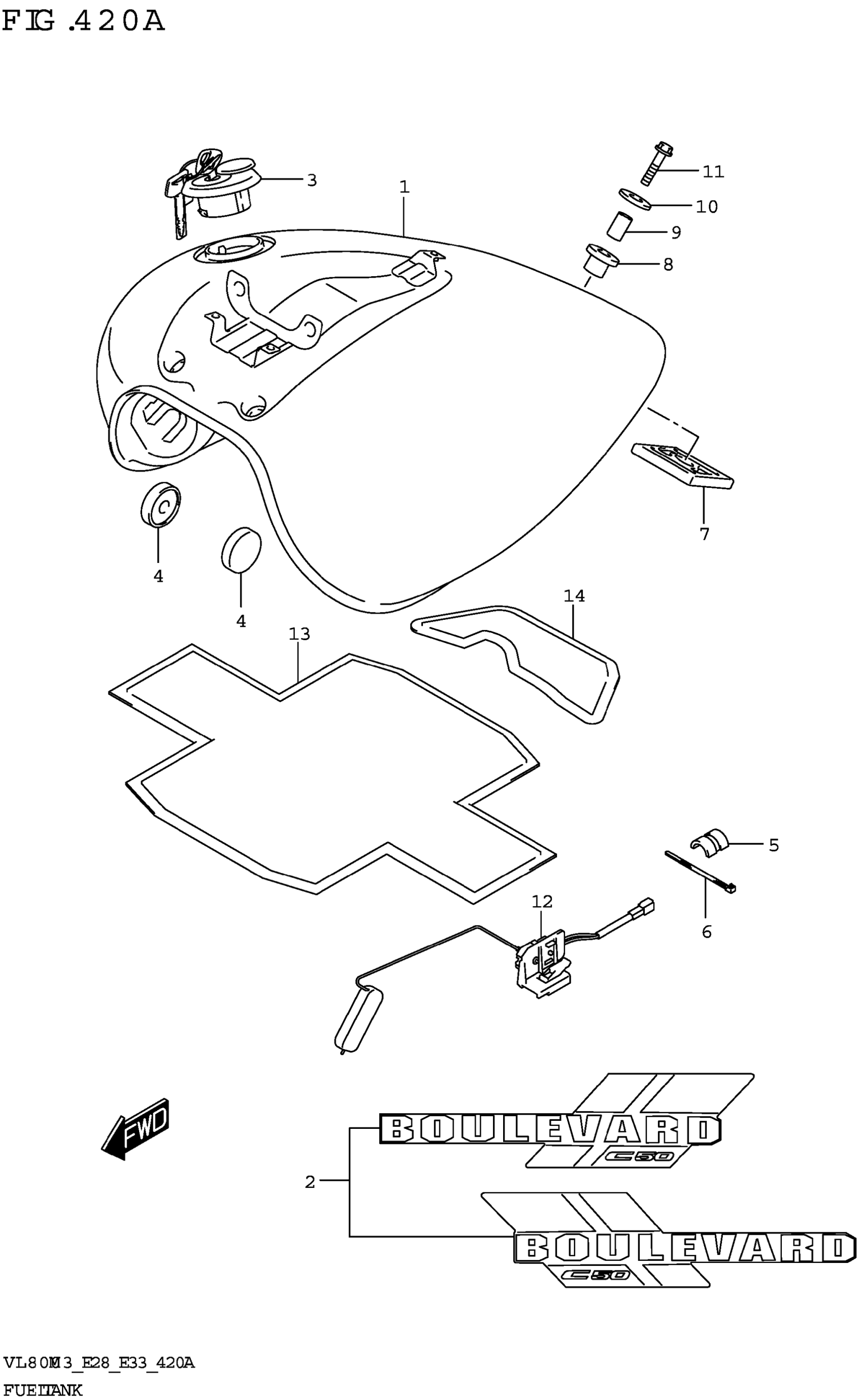

Suzuki VL800M3 (2023) FUEL TANK (VL800) Diagram
