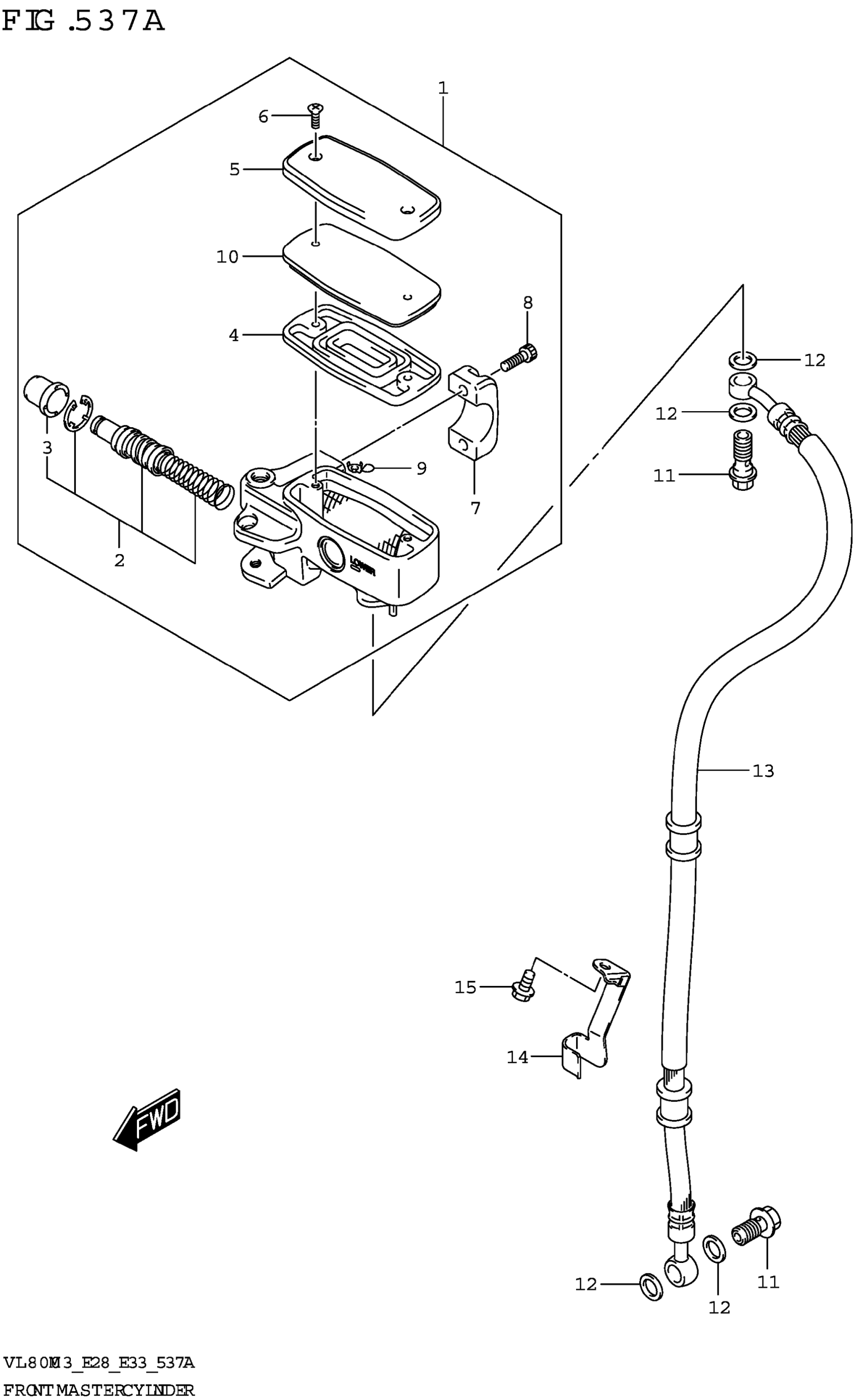

Suzuki VL800M3 (2023) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10FH0

Unavailable

2

.PISTON/CUP SET

59600-04810

$45.20

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-10F00

$10.10

5

.CAP

59669-10F50

$35.07

6

.SCREW

02122-0412A

$1.93

7

.HOLDER

59671-10F00

$49.18

8

.BOLT

07130-06207

$3.04

9

.PROTECTOR

59664-32F00

$11.68

10

.PLATE,DIAPHRAGM

57437-10F00

$21.03

11

UNION (10X1.25X22)

09360-10062

$6.43

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE,FRONT BRAKE

59480-41F11

$111.28

14

CLAMP,FR BRAKE HOSE UPPER

59266-43H00

Unavailable

15

BOLT

01550-0612A

$1.97
