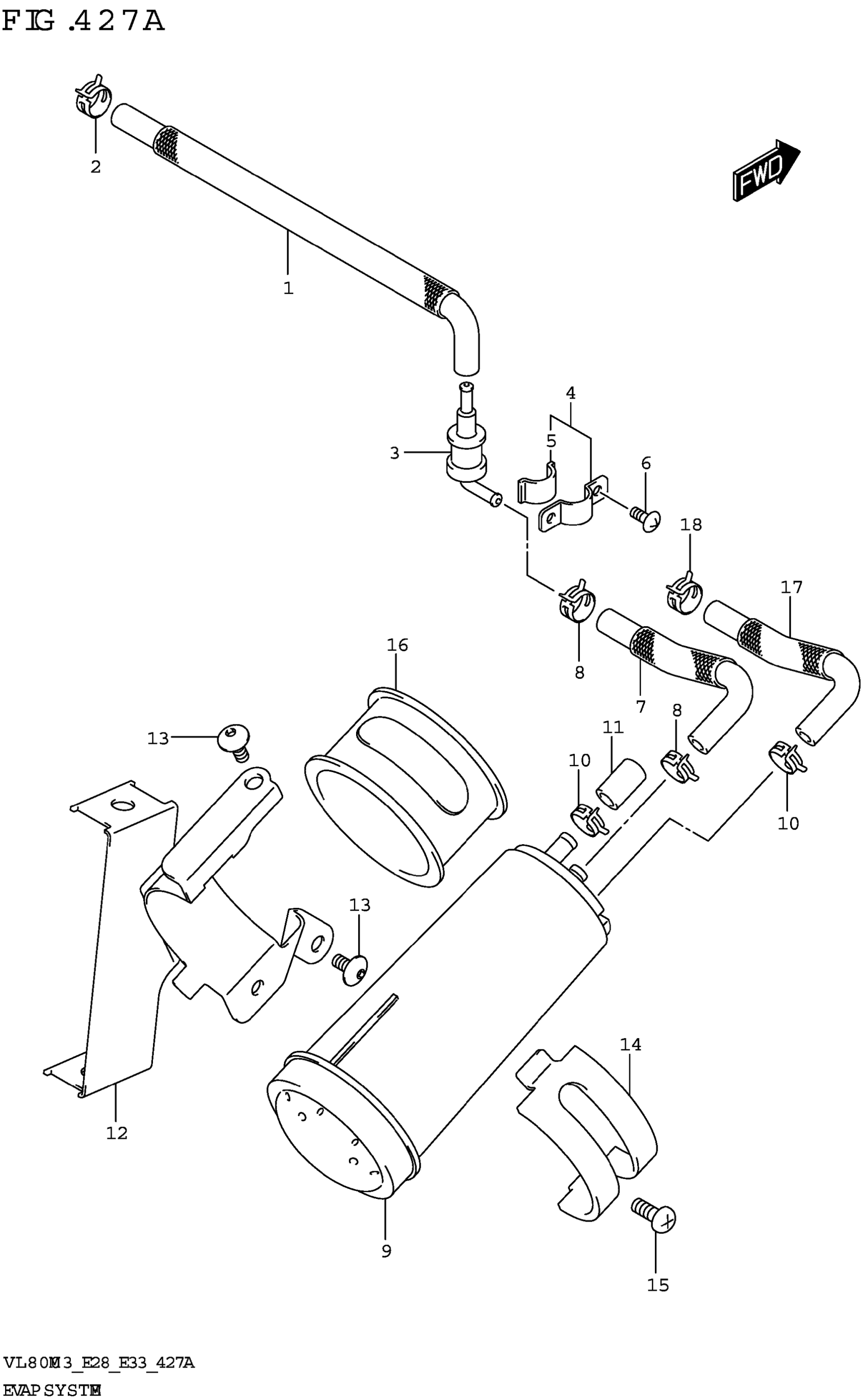

Suzuki VL800M3 (2023) EVAP SYSTEM Diagram

#

Description
Price

1

HOSE,TANK & BRTHR VALVE

44434-39G20

$23.13

2

CLIP (ID:11,H:8)

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

SCREW

02142-0408A

$1.55

7

HOSE,BRTHR VALVE & CSTR

44435-39G20

$17.98

8

CLIP (ID:11,H:8)

09401-11413

$2.26

9

CANISTER SET

17200-17H01

$237.17

10

CLIP (ID:12)

09401-12404

$2.34

11

CAP (OD:11.5)

09251-07003

$2.53

12

BRACKET,FI CONT UNIT

44880-43H00

Unavailable

13

SCREW (6X12)

09139-06108

Unavailable

14

HOLDER,CANISTER

44882-26E00

Unavailable

15

SCREW

02142-0610A

$1.49

16

CUSHION CANISTER

44883-26E00

Unavailable

17

HOSE,CSTR PURGE

44436-43H10

$22.07

18

CLIP (ID:11,H:8)

09401-11413

$2.26
