2023 Suzuki VL800M3 Clutch Diagram

← All diagrams

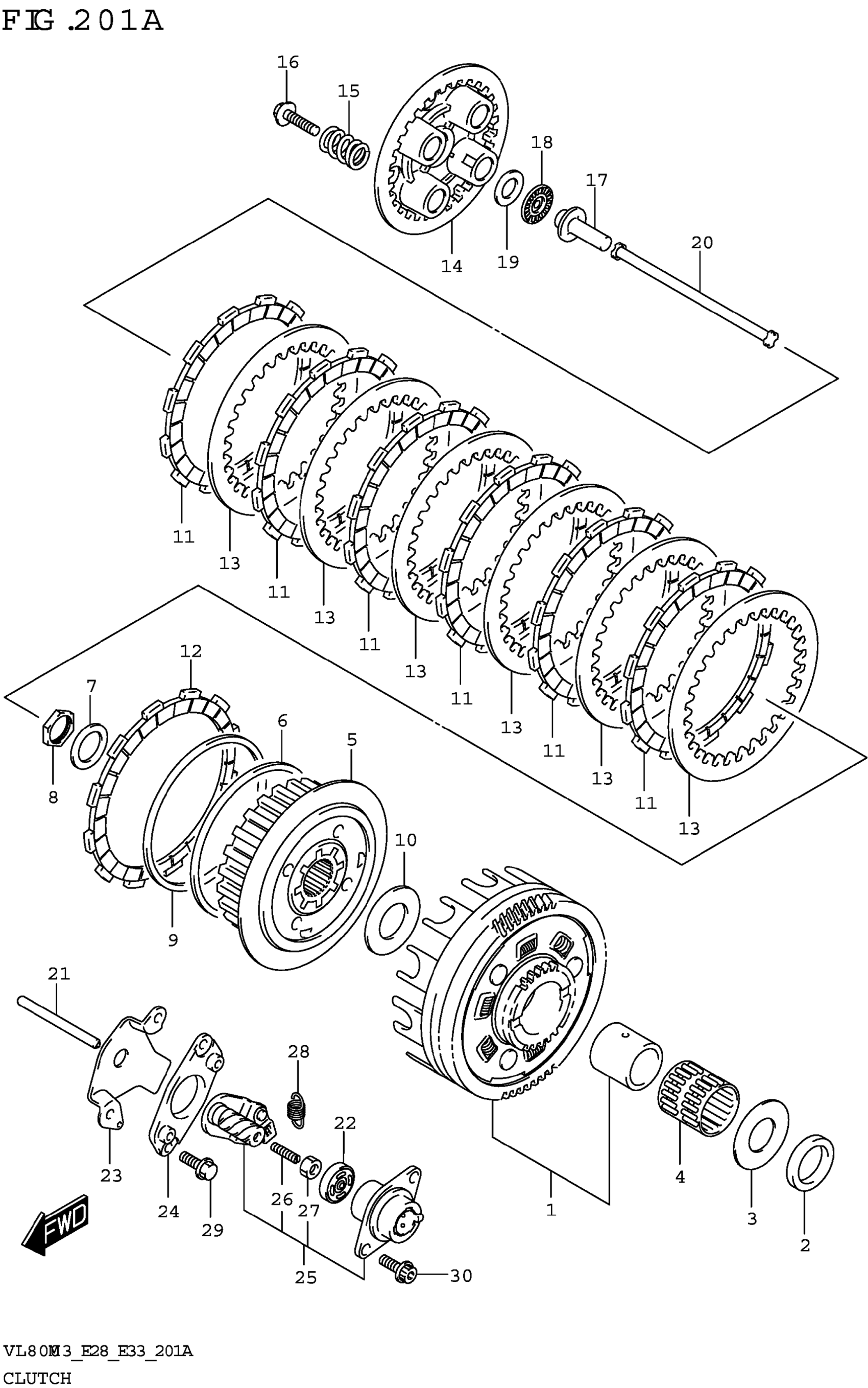

Find the part on the Clutch diagram for your 2023 Suzuki VL800M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki VL800M3 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY,PRIMARY (NT:71)

21200-38840

1
Out of stock

2

SPACER (25X38X6.5)

09180-25077

1
Out of stock

3

WASHER (25X50X2.5)

09160-25055

1
Out of stock

4

BEARING (35X40X35.8)

09263-35017

1
Out of stock

5

HUB,CLUTCH SLEEVE

21410-41F00

1
Out of stock

6

SEAT, WAVE WASHER (T:1.4)

21471-37400

1
Out of stock

7

WASHER (22.2X35X2(3))

09164-22007

1
Out of stock

8

NUT

09140-22008

1
Out of stock

9

WASHER (110.5X119X0.9)

09164-00004

1
Out of stock

10

WASHER (25X50X2.5)

09160-25055

1
Out of stock

11

PLATE,CLUTCH DRIVE (T:3.0)

21441-37400

6
Out of stock

12

PLATE,CLUTCH DRIVE (T:3.5)

21442-37401

1
Out of stock

13

PLATE,CLUTCH DRIVEN (T:1.6)

21451-14A00

6
Out of stock

14

DISK,CLUTCH PRESSURE

21462-27A00

1
Out of stock

15

SPRING,CLUTCH

21413-41F00

4
Out of stock

16

BOLT (6X30)

09116-06203

4
Out of stock

17

PIECE,CLUTCH PUSH

23121-31E00

1
Out of stock

18

BEARING (15X28X2)

09263-15003

1
Out of stock

19

WASHER (15.5X28X1)

09160-15045

1
Out of stock

20

ROD,CLUTCH (L:161)

23110-27A00

1
Out of stock

21

ROD,CLUTCH PUSH LEFT

23111-45C00

1
Out of stock

22

SEAL,OIL (6X34X10.5)

09283-06010

1
Out of stock

23

RETAINER,CL PUSH ROD OIL SEAL

23117-45C00

1
Out of stock

24

PLATE,CLUTCH RELEASE SCREW

23130-45C00

1
Out of stock

25

SCREW ASSY,CLUTCH RELEASE

23200-41F00

1
Out of stock

26

SCREW (6X25)

09134-06010

1
Out of stock

27

.NUT

08310-00067

1
Out of stock

28

SPRING

09443-09050

1
Out of stock

29

BOLT

07120-0620A

2
Out of stock

30

BOLT

07120-0616A

2
Out of stock
