Description

Price

1

BODY ASSY,THROTTLE

13401-41F51

$886.68

2

.PLATE,STAY

13565-41F20

Unavailable

3

.SCREW

13601-21H00

Unavailable

4

.SCREW,AIR ADJUST

13269-18G00

$11.83

5

.SPRING

13271-43E00

Unavailable

6

.WASHER

13291-26E00

$2.93

7

.O RING

13295-26E00

$4.34

8

.VALVE ASSY, ISC

18117-15H12

$362.80

9

.O-RING

18119-05H00

$3.95

10

.PLATE,ISC VALVE

13428-15H00

Unavailable

11

.SCREW

13605-15H00

$7.12

12

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F21.

13580-40F22

$249.45

13

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F01.

13580-41F02

$137.27

14

.O-RING

13575-40F00

$4.09

15

.SCREW

13605-40F00

$3.71

16

CLAMP (L:145)

09407-14407

$3.57

17

INJECTOR ASSY,FUEL

15710-26GB0

$258.60

18

.O-RING

15721-21H00

$9.09

19

.RING,SEAL

15722-21H00

$11.25

20

SCREW,THROTTLE COVER

13602-34F50

$3.65

21

PIPE SET,FUEL FR

13473-41FA0

$77.10

22

.O-RING

15721-24F00

$9.09

23

PIPE SET,FUEL RR

13473-41FB0

$103.83

24

SCREW

13602-10F10

$3.70

25

JOINT

13473-41FC0

$13.62

26

O-RING

15721-10G00

$9.09

27

PLUG,STRAIGHT

13474-41F20

$6.88

28

O-RING

15721-41F20

$22.38

29

PLATE,STAY

13475-41F20

$5.58

30

HOSE

13683-41FA0

$23.47

31

TUBE,RUBBER

13683-41FD1

$26.15

32

SENSOR,AIR PRESSURE

18590-32G00

$298.15

33

BRACKET,BOOST SENSOR FR

18598-41F00

Unavailable

34

BRACKET,BOOST SENSOR RR

18599-39G00

Unavailable

35

HOSE

13683-41FC2

$4.28

36

TUBE,RUBBER

13682-41F31

$15.48

37

CLIP

13693-24F00

$3.22

38

.NIPPLE

13685-48B00

$12.15

39

VALVE ASSY,DUTY FOR PURGE

18117-52G00

$149.32

40

BRACKET,PURGE VALVE

18119-39G00

Unavailable

41

CUSHION (10X30X2)

44894-24A00

$1.72

42

BOLT

01550-0612A

$1.97

43

NUT (6X12)

08316-1006A

$2.19

44

HOSE,CANISTER PURGE

13680-39G00

Unavailable

45

CLIP (ID:10.5,H:8)

09401-10409

$2.26

46

CLAMP,EVAP HOSE

44480-41F00

Unavailable

47

TAPE,HARNESS (28X50X0.13) | 3)

36611-16G00

$3.03

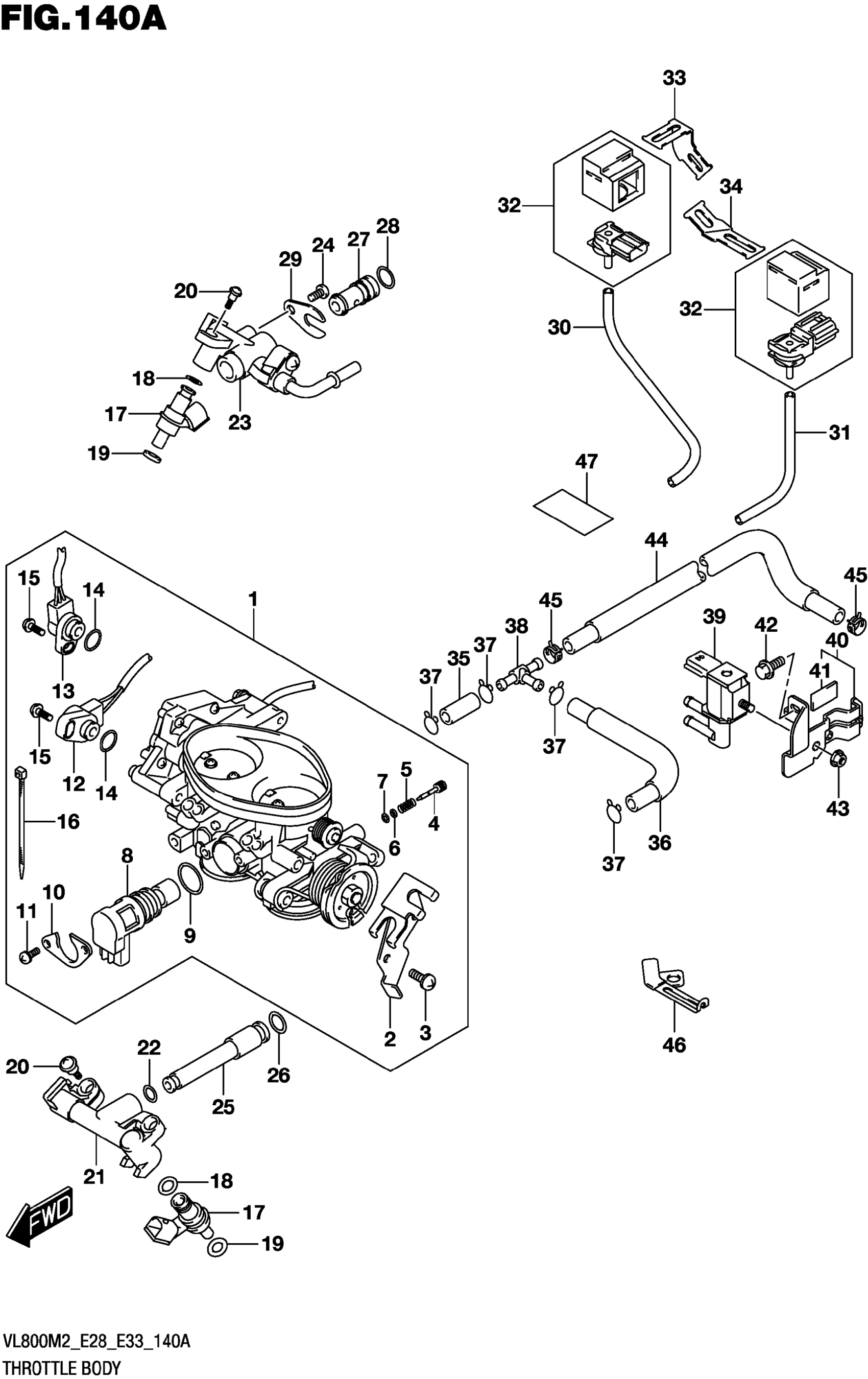

Suzuki VL800M2 (2022) THROTTLE BODY Diagram

BODY ASSY,THROTTLE

.PLATE,STAY

.SCREW

.SCREW,AIR ADJUST

.SPRING

.WASHER

.O RING

.VALVE ASSY, ISC

.O-RING

.PLATE,ISC VALVE

.SCREW

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F21.

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F01.

.O-RING

.SCREW

CLAMP (L:145)

INJECTOR ASSY,FUEL

.O-RING

.RING,SEAL

SCREW,THROTTLE COVER

PIPE SET,FUEL FR

.O-RING

PIPE SET,FUEL RR

SCREW

JOINT

O-RING

PLUG,STRAIGHT

O-RING

PLATE,STAY

HOSE

TUBE,RUBBER

SENSOR,AIR PRESSURE

BRACKET,BOOST SENSOR FR

BRACKET,BOOST SENSOR RR

HOSE

TUBE,RUBBER

CLIP

.NIPPLE

VALVE ASSY,DUTY FOR PURGE

BRACKET,PURGE VALVE

CUSHION (10X30X2)

BOLT

NUT (6X12)

HOSE,CANISTER PURGE

CLIP (ID:10.5,H:8)

CLAMP,EVAP HOSE

TAPE,HARNESS (28X50X0.13) | 3)
