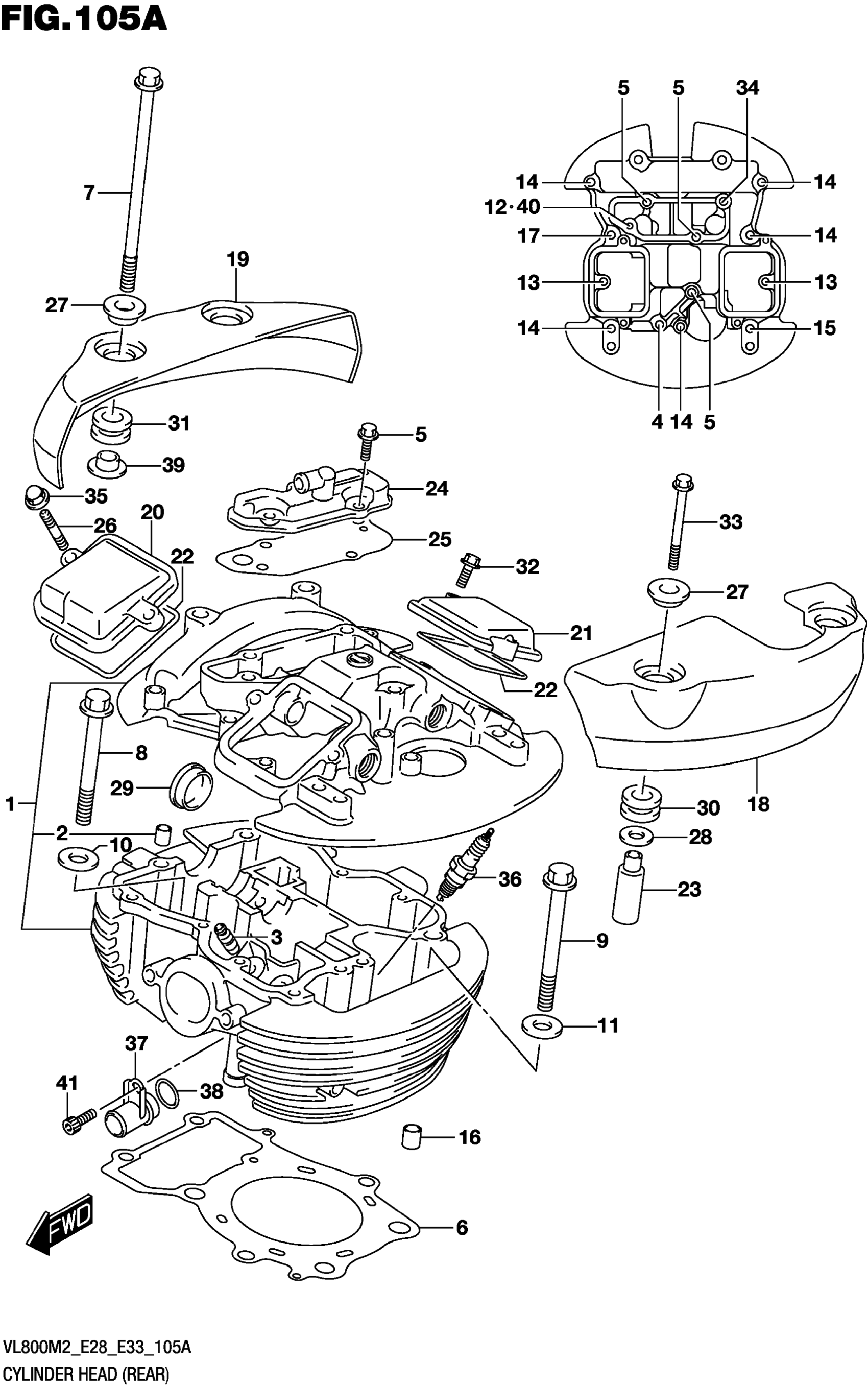

Suzuki VL800M2 (2022) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER REAR

11103-39G50

Unavailable

2

PIN (11X14) This part replaces 09206-11011.

09206-11004

$4.84

3

GUIDE,VALVE (OS:0.3)

11115-41F70

$45.97

4

BOLT (6X50)

09103-06304

$2.77

5

BOLT (6X55)

09103-06305

Unavailable

6

.GASKET,CYLINDER HEAD REAR

11142-41F00

$36.21

7

BOLT (8X250)

09103-08370

$17.60

8

BOLT (10X155)

09103-10133

$10.32

9

BOLT (10X165)

09103-10134

$10.32

10

WASHER (8.5X24X1.6)

09160-08130

$2.01

11

WASHER (10.5X22X2.3)

09160-10039

$2.24

12

BOLT (6X55)

09103-06305

Unavailable

13

BOLT

01547-0625A

$2.01

14

BOLT

01547-0630A

$2.31

15

BOLT

01547-0640A

$2.31

16

PIN (10.4X13X18)

04211-13189

$2.19

17

BOLT

07120-0630A

$4.00

18

CAP,CYL HEAD COVER RR,L

11173-41FA0

Unavailable

19

CAP,CYL HEAD COVER RR

11174-41F00

Unavailable

20

CAP,INSPECTION INTAKE

11175-38A11

$26.03

21

CAP,INSPECTION EXHAUST

11176-38A11

$26.03

22

.GASKET,INSPECTION CAP

11177-38A00

$4.09

23

SPACER,CYL HEAD COVER CAP NO.

11179-10F10

$13.73

24

COVER,BREATHER

11186-41FB0

Unavailable

25

.GASKET,BREATHER COVER

11187-41F20

$8.62

26

BOLT,STUD (L:16)

09108-06102

$4.43

27

WASHER (6.5X18X1.6)

09160-06084

$1.77

28

WASHER (9.5X20X1.0)

09160-09016

$2.50

29

PLUG (OD:30)

09241-30004

$5.97

30

CUSHION (9X18X9.5)

09320-09016

$1.97

31

CUSHION

09320-13015

$2.80

32

BOLT

01547-0620A

$2.01

33

BOLT

01547-06557

$2.34

34

BOLT

01547-0620A

$2.01

35

NUT

09159-06093

Unavailable

36-1

SPARK PLUG (DR7EA)

09482-00398

$2.80

36-2

PLUG,SPARK (X22ESR-U)

09482-00222

$4.90

36-3

SPARK PLUG (DR8EA)

09482-00399

$2.95

36-4

SPARK PLUG (X24ESR-U)

09482-00223

$4.60

36-5

SPARK PLUG (DR9EA)

09482-00400

$4.80

36-6

PLUG,SPARK (X27ESR-U)

09482-00224

Unavailable

37

UNION,CYL HEAD JOINT

17891-41F10

$20.75

38

O-RING (D:2.4,ID:15.8)

09280-16005

$2.24

39

BUSH

09301-08007

$7.38

40

GASKET (5.8X13X1.2)

09168-06023

$2.01

41

BOLT

07130-0612A

$2.50
