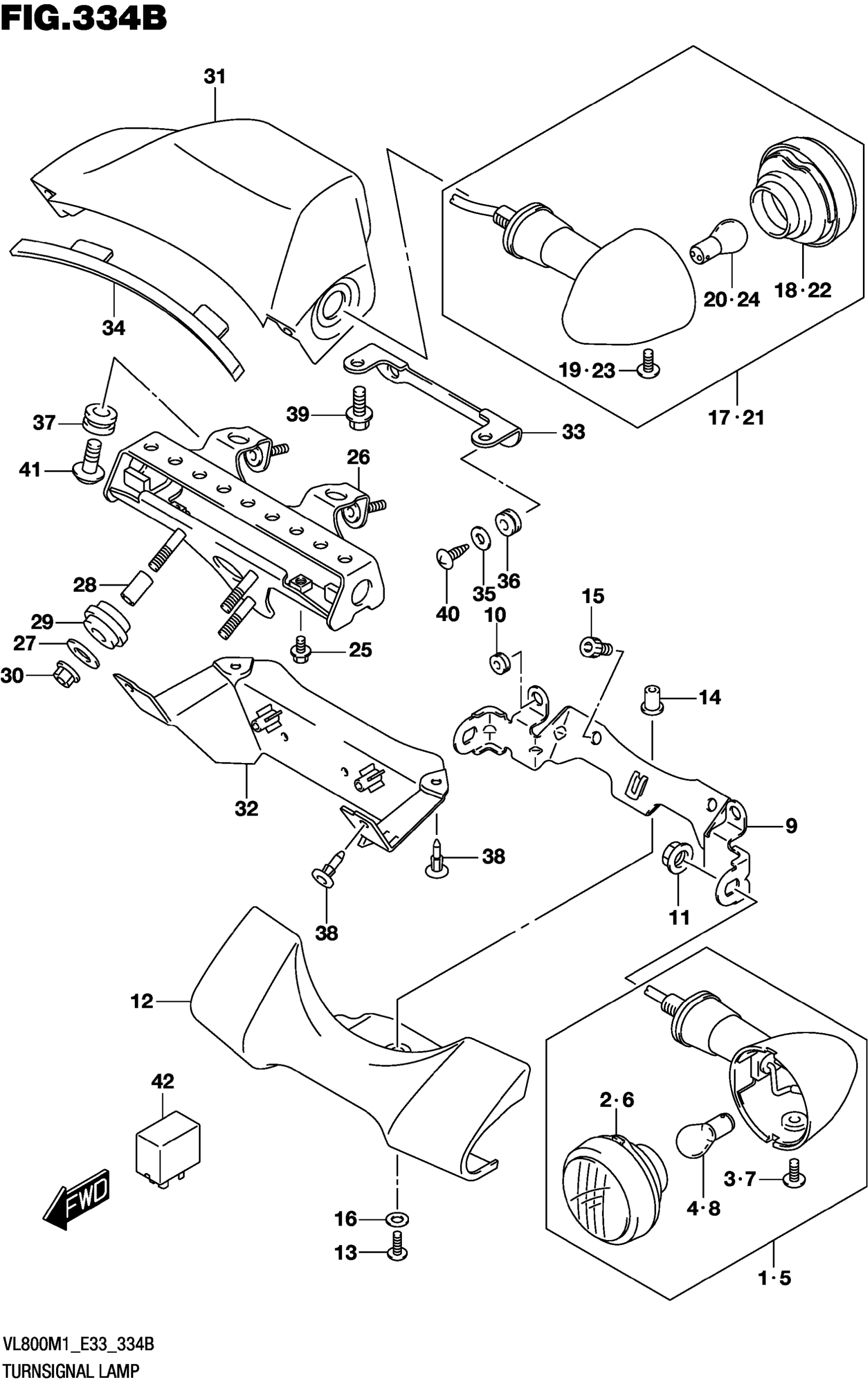

Suzuki VL800M1 (2021) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R

35601-41FC0

$152.27

2

.LENS

35610-38AA0

$28.79

3

.SCREW (4X10)

35623-38AA0

$4.67

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

5

LAMP ASSY,FRONT TURNSIGNAL,L

35602-41FC0

$151.52

6

.LENS

35630-38AA0

$29.21

7

.SCREW (4X10)

35623-38AA0

$4.67

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

9

BRACKET

35616-41FA3

$68.43

10

CUSHION (6.5X14X6)

09320-06027

$2.12

11

NUT

08310-0010B

$2.95

12

COVER,FRONT TURNSIGNAL

35641-41F02

$101.80

13

SCREW (5X16)

09139-05042

$2.70

14

NUT (M5)

09159-05019

$6.44

15

BOLT

07130-0812A

$4.03

16

WASHER

09160-05048

$1.76

17

LAMP ASSY,REAR TURNSIGNAL RH

35603-38AH0

$157.43

18

.LENS

35610-38AH0

$44.02

19

.SCREW (4X10)

35623-38AA0

$4.67

20

.BULB (12V21W)

09471-12045

$2.95

21

LAMP ASSY,REAR TURNSIGNAL LH

35604-38AH0

$151.52

22

.LENS

35630-38AH0

$44.02

23

.SCREW (4X10)

35623-38AA0

$4.67

24

.BULB (12V21W)

09471-12045

$2.95

25

BOLT (6X14)

09103-06507

$4.70

26

BRACKET,REAR TURNSIGNAL

35620-43H01

$60.93

27

WASHER (6.5X20X1.2)

09160-06077

$1.89

28

SPACER (6.4X10X18)

09180-06195

$4.70

29

CUSHION

09320-10504

$6.28

30

NUT (6X12)

08316-1006A

$2.19

31

COVER,REAR TURNSIGNAL UPPER

35621-43H00

$124.85

32

COVER,REAR TURNSIGNAL LWR

35622-06J00

$48.27

33

BRACKET,REAR TURNSIGNAL COVER

35623-43H00

$11.93

34

GASKET,REAR TURNSIGNAL COVER

35657-43H00

$9.35

35

WASHER (4.3X14X0.8)

09160-04022

$2.35

36

CUSHION (6.5X14X6)

09320-06027

$2.12

37

CUSHION (8.4X18X6)

09320-08066

$7.44

38

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.80

39

BOLT

01550-0612A

$1.97

40

SCREW

03541-0412A

$1.37

41

SCREW

03541-0510A

$1.43

42

RELAY ASSY,TURNSIGNAL LAMP

38610-03F01

$81.99
