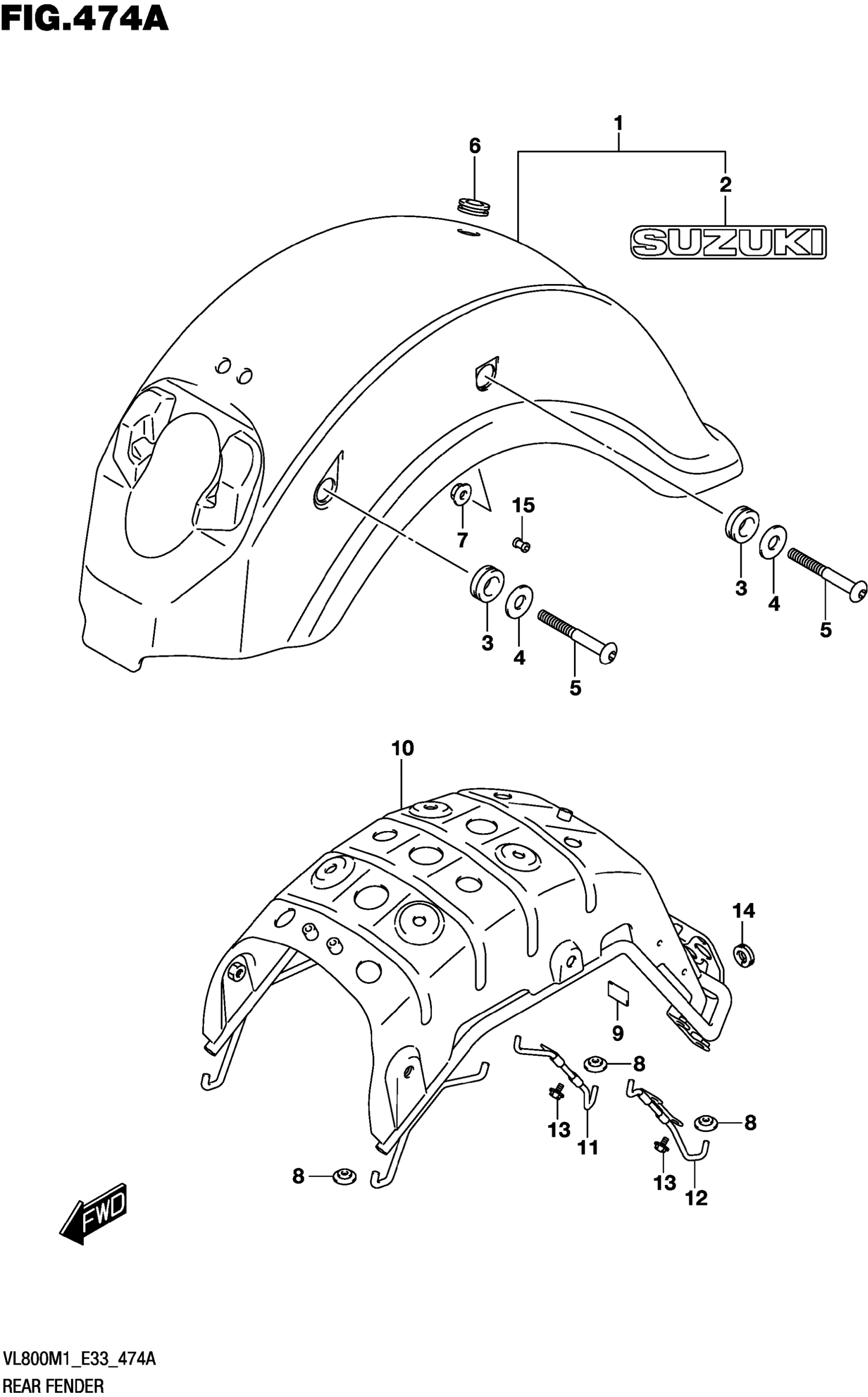

Suzuki VL800M1 (2021) REAR FENDER (VL800) Diagram

#

Description
Price

1-1

FENDER,REAR (GRAY) | BODY COLOR:YUD

63110-43H01-YUD

$505.98

1-2

FENDER,REAR (RED) | BODY COLOR:YYG

63110-43H01-A8X

$537.92

2

.EMBLEM,"SUZUKI" (BLACK)

68271-34A01-019

$5.10

3

CUSHION (16X26X8)

47191-24F00

$5.09

4

WASHER (15.5X26X2.3)

09160-15002

$1.76

5

BOLT,REAR FENDER

63161-41F00

$9.25

6

CUSHION

09320-15008

$3.69

7

NUT

08316-1008B

$2.74

8

CUSHION

09320-06026

$4.45

9

CUSHION,REAR FENDER SIDE

53145-17C01

$5.23

10

REINF,REAR FENDER

63130-43H00

$468.58

11

BRACKET,RR FENDER LWR,R

63150-43H00

$46.25

12

BRACKET,RR FENDER LWR,L

63160-43H00

$46.25

13

BOLT

01550-0610B

$2.53

14

GROMMET (10X35X9.5)

09308-10017

$5.65

15

PLUG (OD:9)

09250-07004

$3.72
