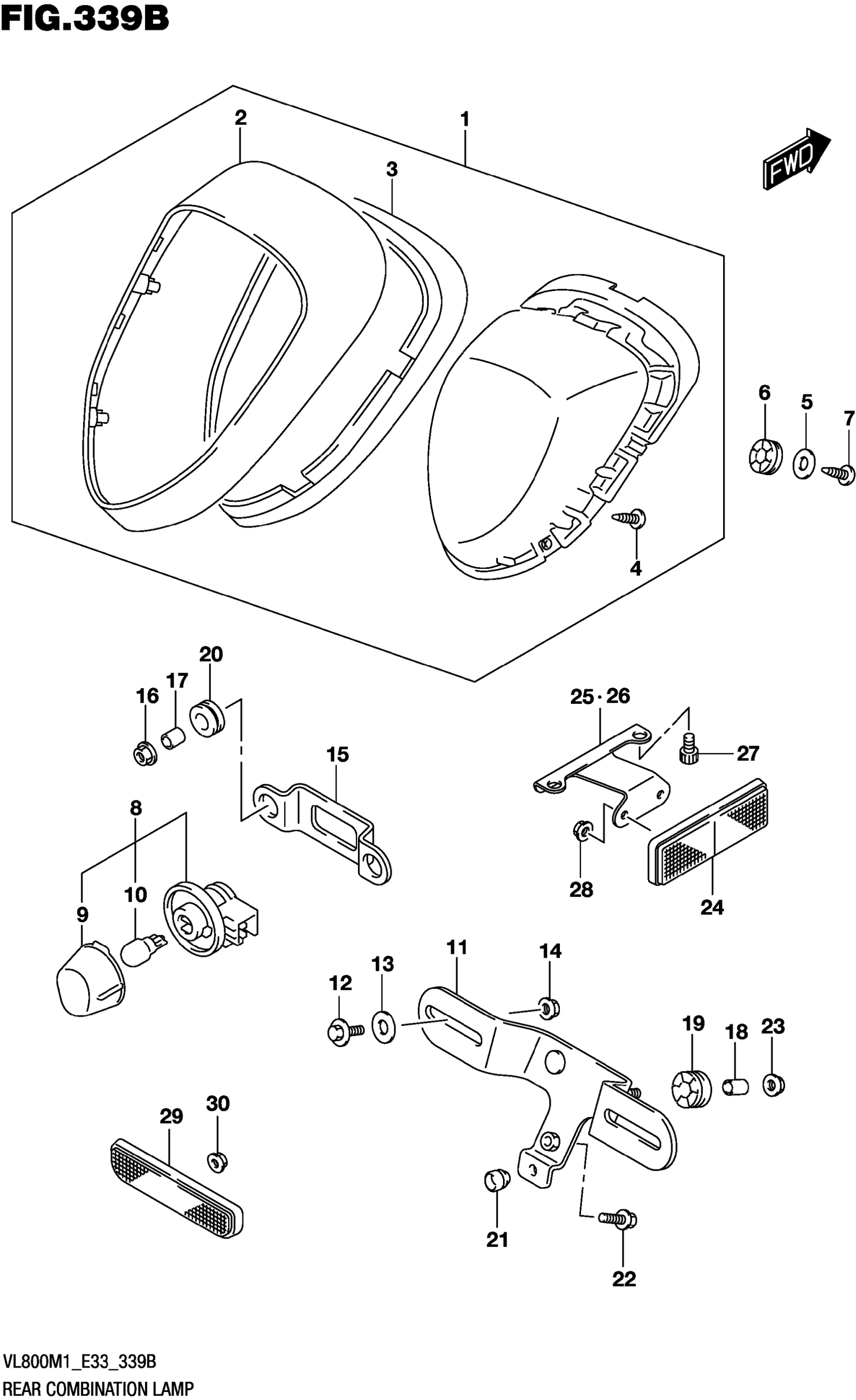

Suzuki VL800M1 (2021) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR This part replaces 35710-43H00.

35710-43HC0

$422.88

2

.COVER

35717-43H00

Unavailable

3

.RUBBER

35713-43H00

Unavailable

4

.SCREW (3X12)

35623-41400

Unavailable

5

WASHER (5.5X20X1.2)

09160-05501

$1.84

6

CUSHION,REAR COMB

35765-43H00

Unavailable

7

SCREW

03541-0512A

$1.49

8

LAMP ASSY,LICENSE

35910-14F01

$30.22

9

.LENS

35912-14F11

$8.28

10

.BULB (12V5W)

09471-12216

$5.36

11

BRACKET,LICENSE PLATE

35927-43H30

$27.20

12

BOLT (6X16)

09116-06168

$2.50

13

WASHER (6.5X20X1.2)

09160-06077

$1.91

14

NUT (6X12)

08316-1006A

$2.19

15

BRACKET,LICENSE LAMP

35928-43H00

$11.47

16

NUT

09159-05049

$2.30

17

SPACER (5.5X9.5X11.5)

09180-05054

Unavailable

18

SPACER (6.5X10X12)

09180-06290

$2.35

19

CUSHION

09320-10051

$2.99

20

CUSHION

09320-10073

$2.27

21

CUSHION

09321-06036

$1.52

22

BOLT (6X25)

01550-0625A

$1.97

23

NUT (6X12)

08316-1006A

$2.19

24

REFLECTOR ASSY,RR

35970-07F01

$20.88

25

BRACKET,REAR SIDE RR RH

35975-43H00

Unavailable

26

BRACKET,REAR SIDE RR LH

35976-43H00

Unavailable

27

BOLT

07130-0612A

$2.50

28

NUT

08316-1005A

$2.19

29

REFLECTOR ASSY,REAR

35970-05H00

$29.33

30

NUT

08316-1005A

$2.19
