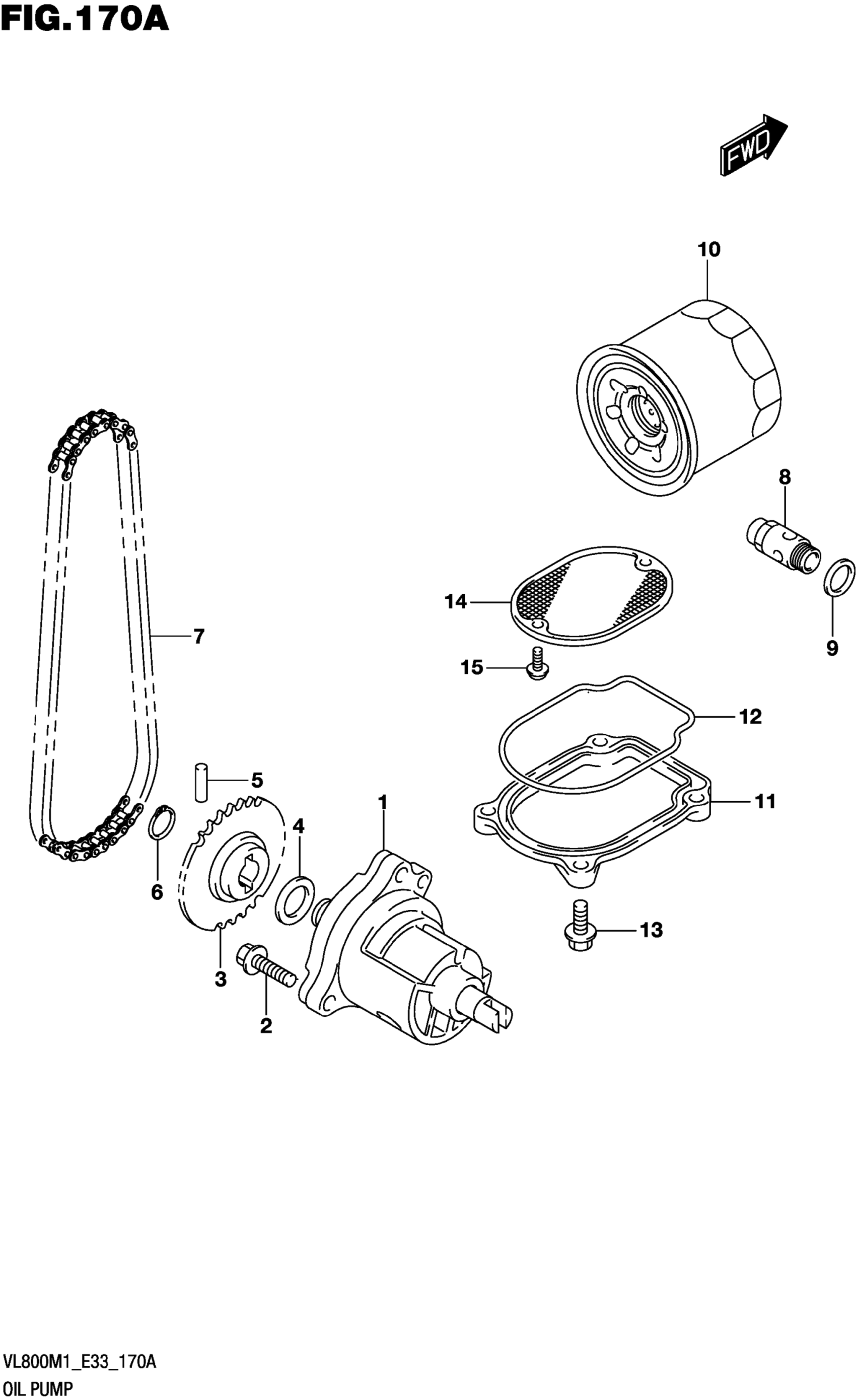

Suzuki VL800M1 (2021) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENGINE OIL

16400-38A01

$224.88

2

BOLT

01547-0625A

$2.01

3

SPROCKET,OIL PUMP DRIVEN (NT: | 9)

16331-38A10

Unavailable

4

SHIM (12X20X0.5)

09181-12158

$2.26

5

PIN (5X18)

09261-05006

$1.49

6

CIRCLIP

08331-3112A

$1.78

7

CHAIN ASSY,OIL PUMP DRIVE (DI | 25H)

16310-38A00

$33.93

8

VALVE ASSY,OIL RELIEF

16440-17C20

$63.47

9

GASKET (16X22X2)

09168-16002

$1.91

10

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$13.10

11

CAP,OIL STRAINER

16523-38A00

$31.70

12

.O-RING,OIL STRAINER CAP

16528-38A00

$11.77

13

BOLT

01547-0620A

$2.03

14

STRAINER,ENG OIL

16520-38A10

$8.60

15

SCREW

02112-7512A

$2.42
