Description

Price

1

TANK ASSY,FUEL (WHITE)

44100-43HL0-YUH

$980.88

2

.TAPE SET,FUEL TANK

68110-41F30-B9D

$244.87

3

EMBLEM,FUEL TANK RH

68111-41F31

$71.38

4

EMBLEM,FUEL TANK LH

68121-41F31

$71.38

5

CAP SET,FUEL TA This part replaces 44200-41841.

44200-41842

$94.83

6

CUSHION

09329-10026

$2.23

7

CUSHION,FUEL TANK LWR

44541-14F11

$4.62

8

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

9

CUSHION,FUEL TANK RR LWR

44542-41F01

$8.52

10

CUSHION,FUEL TANK RR UPR

44541-41F02

$5.27

11

SPACER (8.2X12.5X23.5)

09180-08227

$2.06

12

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

13

BOLT (8X35)

01550-0835A

$3.04

14

GAUGE ASSY,FUEL This part replaces 34810-41F11.

34810-41F12

$112.19

15

SHIELD,FUEL TANK HEAT

44192-39G00

$148.62

16

SHIELD,FUEL TANK HEAT NO.2

44191-43H00

$87.70

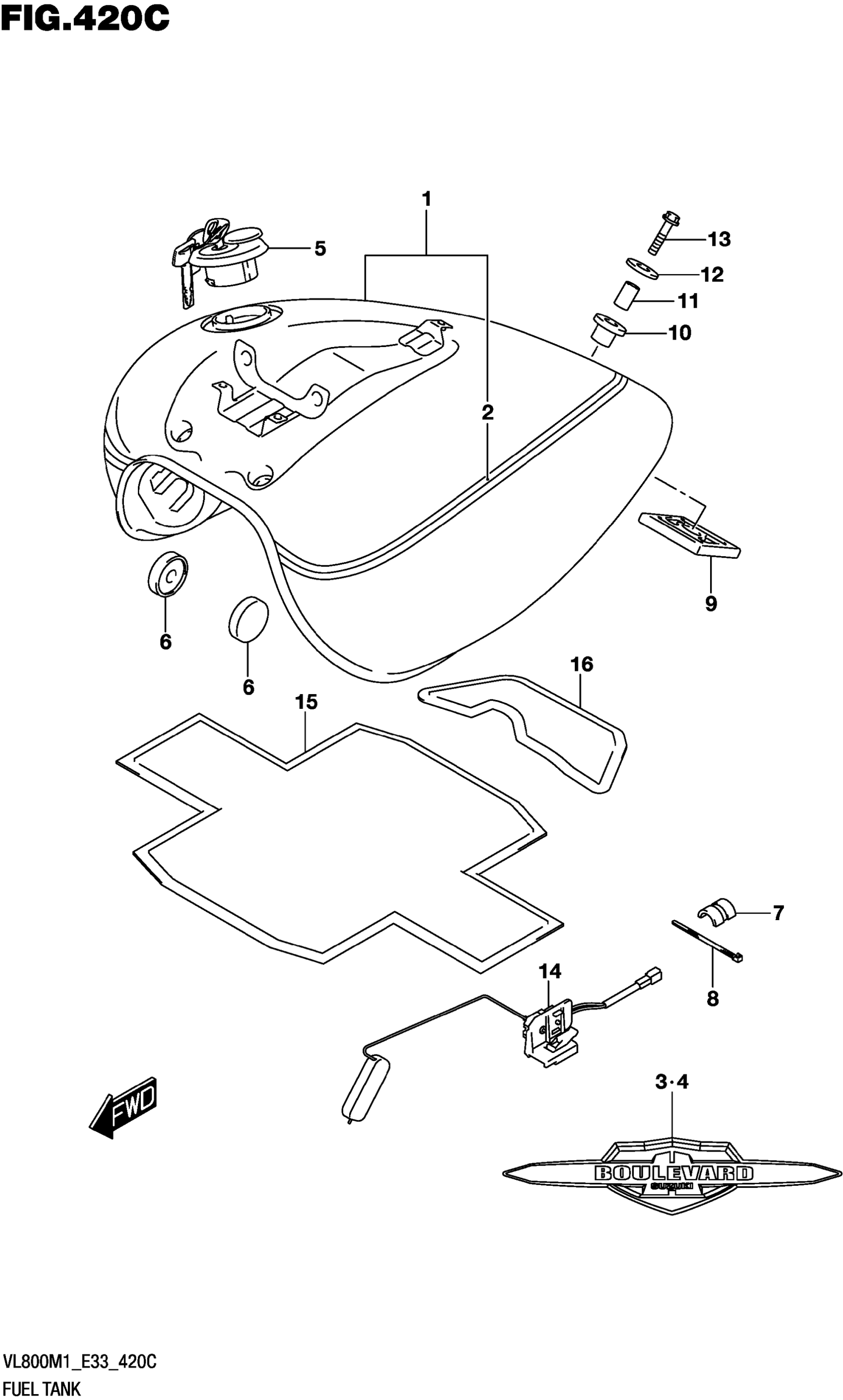

Suzuki VL800M1 (2021) FUEL TANK (VL800T) Diagram
