2021 Suzuki VL800M1 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2021 Suzuki VL800M1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

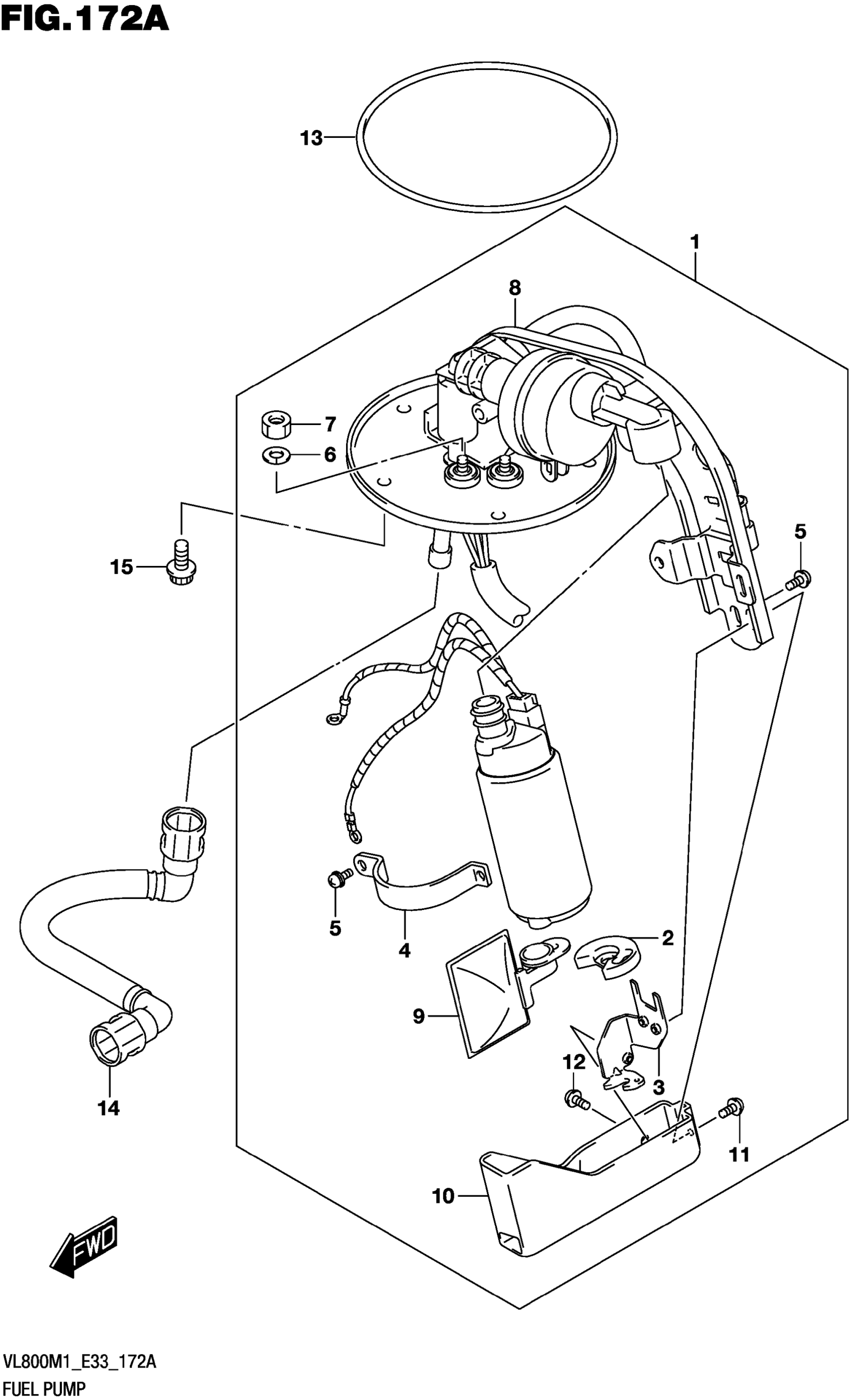

2021 Suzuki VL800M1 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-41F30

1
Out of stock

2

.CUSHION

15111-41F10

1
Out of stock

3

.HOLDER

15112-41F10

1
Out of stock

4

.BAND,FUEL PUMP

15115-10F00

1
Out of stock

5

.SCREW

15116-10F10

2
Out of stock

6

.SPRING WASHER

15172-35F00

1
Out of stock

7

.NUT

15173-35F00

1
Out of stock

8

.PLATE ASSY

15410-41F30

1
Out of stock

9

.STRAINER

15420-41F10

1
Out of stock

10

.VESSEL

15425-41F10

1
Out of stock

11

.SCREW

15429-41F10

1
Out of stock

12

.SCREW

15429-41F20

1
Out of stock

13

O-RING

15201-35F00

1
Out of stock

14

HOSE,FUEL

15810-39G03

1
Out of stock

15

BOLT

07120-0612A

5
Out of stock
