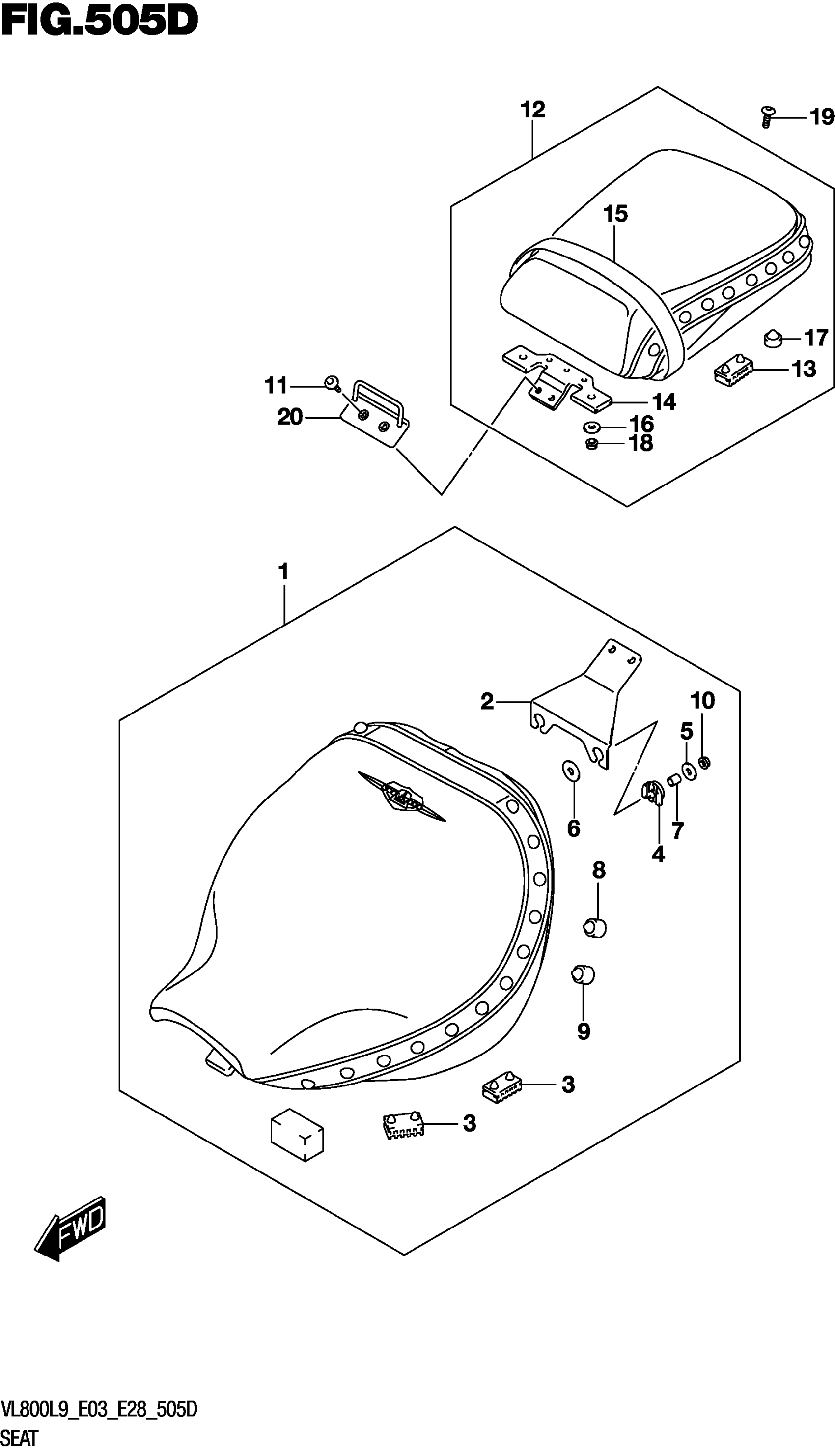

Suzuki VL800L9 (2019) SEAT (VL800TL9 E03) Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-43H12-GFA

$424.70

2

.BRACKET,SEAT

45115-43H00

$37.08

3

.CUSHION,SEAT (40X20X15)

45149-31300

$3.56

4

.CUSHION,SEAT BRACKET

45215-43H00

$21.83

5

.WASHER (6.5X20X1.6)

09160-06066

$1.89

6

.WASHER (6.5X24X1.6)

09160-06501

$1.86

7

SPACER (6.5X10X11)

09180-06288

$2.06

8

.CUSHION (11.5X22X20)

09321-10002

$2.22

9

.CUSHION

09321-10033

$6.20

10

NUT (6X12)

08316-1006A

$2.19

11

BOLT (6X18)

09106-06064

$6.02

12

SEAT ASSY (BLACK) This part replaces 45300-43H10-GFA.

45300-43H11-GFA

$304.53

13

.CUSHION,REAR

45147-12FA0

$5.30

14

.BRACKET,PILLION SEAT

45330-43H00

$56.45

15

.BAND,SEAT PILLION (BLACK) This part replaces 45380-43H00-48H.

45380-43H01-48H

$8.43

16

.WASHER (6.5X20X1.6)

09160-06066

$1.89

17

.CUSHION (11.5X22X20)

09321-10002

$2.22

18

NUT (6X12)

08316-1006A

$2.19

19

BOLT (8X16)

09106-08140

$6.38

20

BRACKET,SEAT SUPPORT

45210-43H00

$25.11
