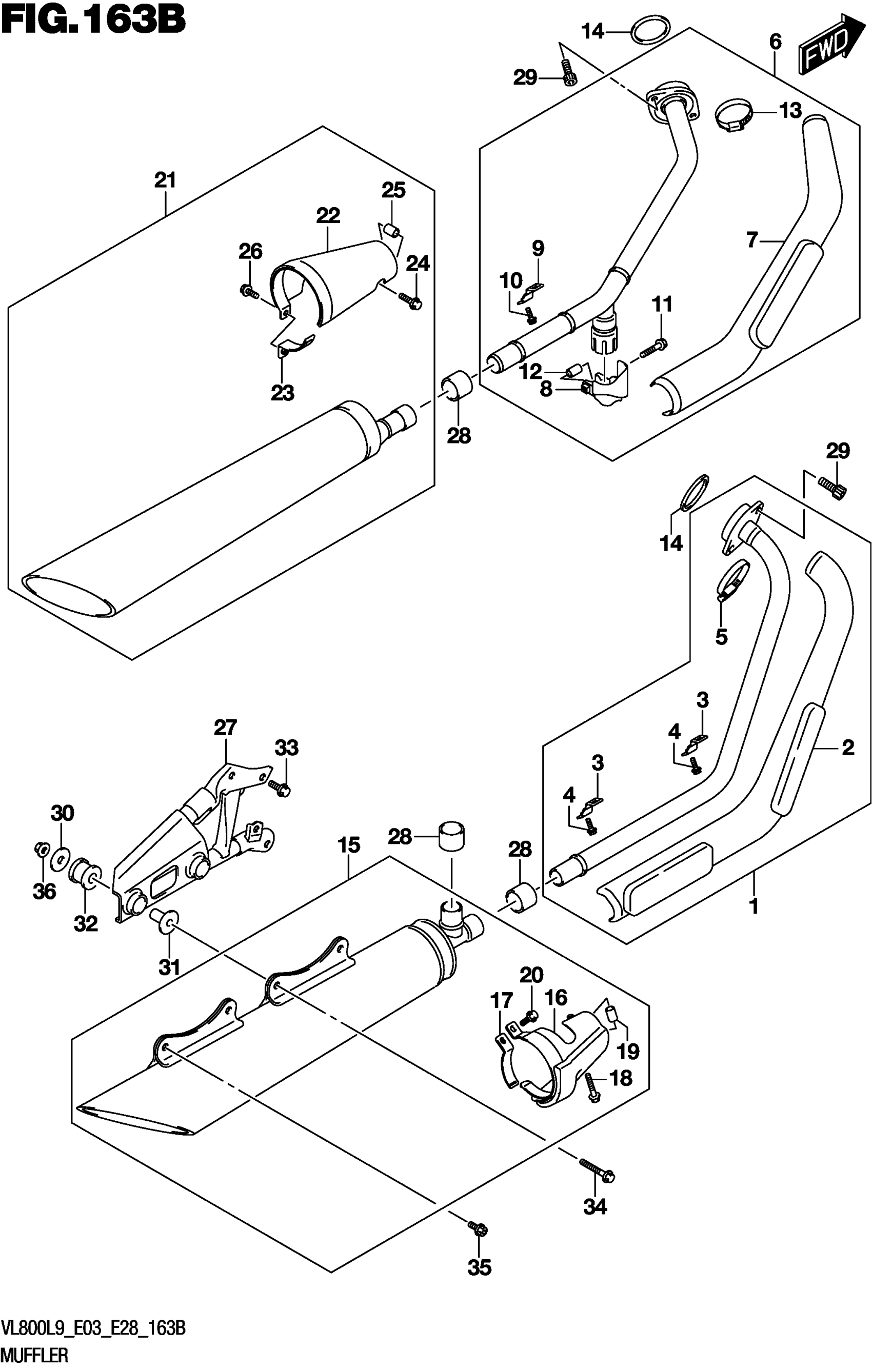

Suzuki VL800L9 (2019) MUFFLER (VL800L9 E28) Diagram

#

Description
Price

1

PIPE

14150-39G00

Unavailable

2

.COVER

14193-39G00

Unavailable

3

.CLAMP,EXH COVER

14185-41F00

$49.60

4

BOLT

07120-0616A

$2.53

5

.BAND

14185-39G00

Unavailable

6

PIPE,EXH RR

14160-39G00

$303.48

7

.COVER

14194-39G00

Unavailable

8

.CLAMP

14195-39G00

Unavailable

9

.CLAMP,EXH COVER

14185-41F00

$49.60

10

BOLT

07120-0616A

$2.53

11

BOLT (8X35)

09103-08365

$3.91

12

.SPACER

14167-22H00

$17.37

13

.BAND

14185-39G00

Unavailable

14

.GASKET,EXH PIPE

14181-10F00

$12.91

15

MUFFLER

14310-39G00-H01

$1,078.07

16

.COVER

14344-39G00

$246.30

17

.CLAMP

14399-22H00

$33.15

18

BOLT (8X35)

09103-08365

$3.91

19

.SPACER

14167-22H00

$17.37

20

BOLT

07120-0616A

$2.53

21

MUFFLER

14340-39G00-H01

$918.68

22

.COVER

14345-39G00

$171.88

23

.CLAMP

14399-22H00

$33.15

24

BOLT (8X35)

09103-08365

$3.91

25

.SPACER

14167-22H00

$17.37

26

BOLT

07120-0616A

$2.53

27

BRACKET,MUF SPRT

14410-39G00

Unavailable

28

CONNECTOR,MUFFLER

14771-39G00

$27.55

29

BOLT (8X25)

09106-08178

$3.24

30

WASHER (8.5X33X1.5)

09160-08146

$2.60

31

SPACER (8.6X12X25.5)

09180-08156

$6.70

32

CUSHION

09320-12049

$10.68

33

BOLT (8X16) This part replaces 09103-08283-A05.

09103-08570

$2.34

34

BOLT

01550-0845B

$3.42

35

BOLT (8X20)

09106-08107

$2.81

36

NUT

08361-2508A

$1.97
