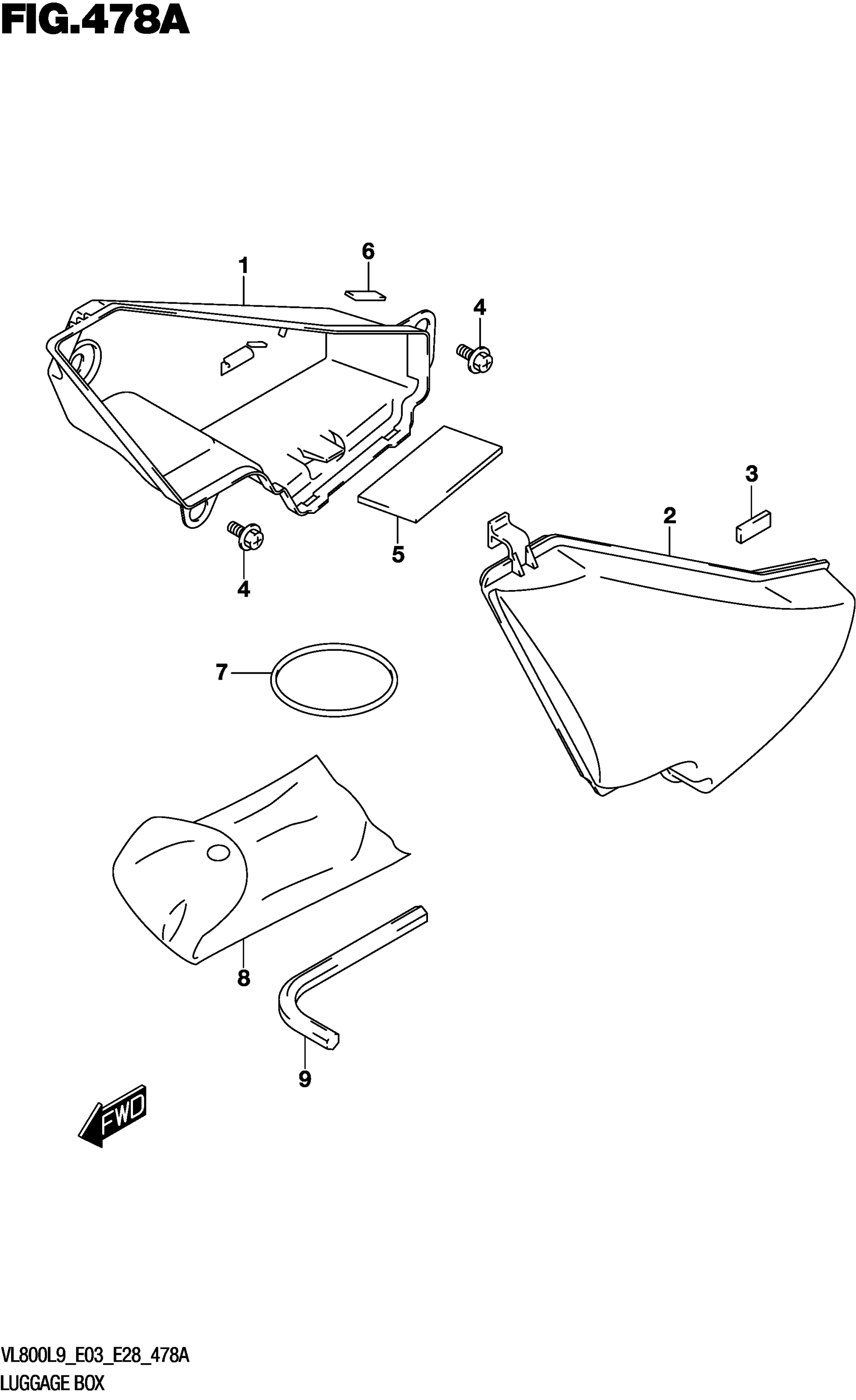

Suzuki VL800L9 (2019) LUGGAGE BOX Diagram

#

Description

Price

1

BODY,LUGGAGE BOX

92211-41F00

$99.93

2

LID,LUGGAGE BOX

92212-41F01

$65.10

3

CUSHION,LUGGAGE BOX NO.2

92213-41F00

$4.82

4

BOLT (6X12)

09111-06107

$2.66

5

PROTECTOR (50X110X8)

33652-35F00

$5.18

6

CUSHION (10X24X1)

48128-14FA0

$7.30

7

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

$2.50

8

TOOL ASSY This part replaces 09800-21055.

09800-21102

$18.51

9

SPANNER,HEXAGON (6)

09816-00050

$5.47
