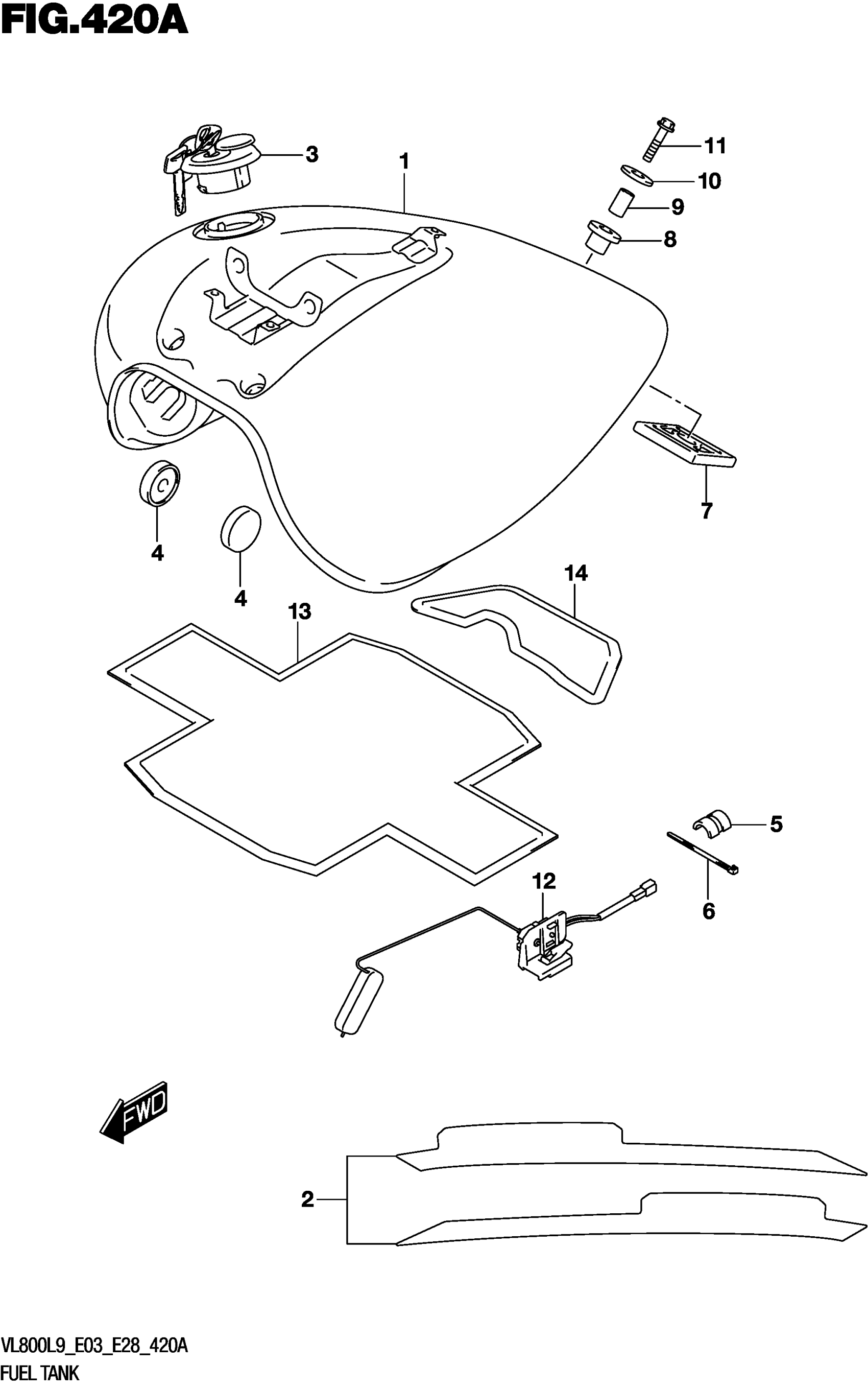

Suzuki VL800L9 (2019) FUEL TANK (VL800L9 E03) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL | FOR YMD This part replaces 44100-43H30-YMD.

44100-43H31-YMD

$1,078.98

1-2

TANK ASSY, FUEL (BLACK) | FOR YVB

44100-43H30-ACX

$1,061.72

2-1

.TAPE SET, FUEL TANK | FOR YMD

68110-43H00-JRU

$49.67

2-1

.TAPE SET, FUEL TANK

68110-43H00-JRU

$49.67

2-2

.TAPE SET, FUEL TANK | FOR ACX

68110-43H00-BBD

$70.92

2-2

.TAPE SET, FUEL TANK

68110-43H00-BBD

$70.92

3

CAP SET,FUEL TA This part replaces 44200-41830.

44200-41832

$164.45

4

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

5

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

6

CLAMP (L:250)

09407-25402

$4.64

7

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

8

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

9

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

10

WASHER (8.5X33X1.5)

09160-08146

$2.60

11

BOLT (8X35)

01550-0835A

$3.04

12

GAUGE ASSY,FUEL This part replaces 34810-41F11.

34810-41F12

$112.19

13

SHIELD,FUEL TANK HEAT

44192-39G00

$148.62

14

SHIELD,FUEL TANK HEAT NO.2

44191-43H00

$87.70
