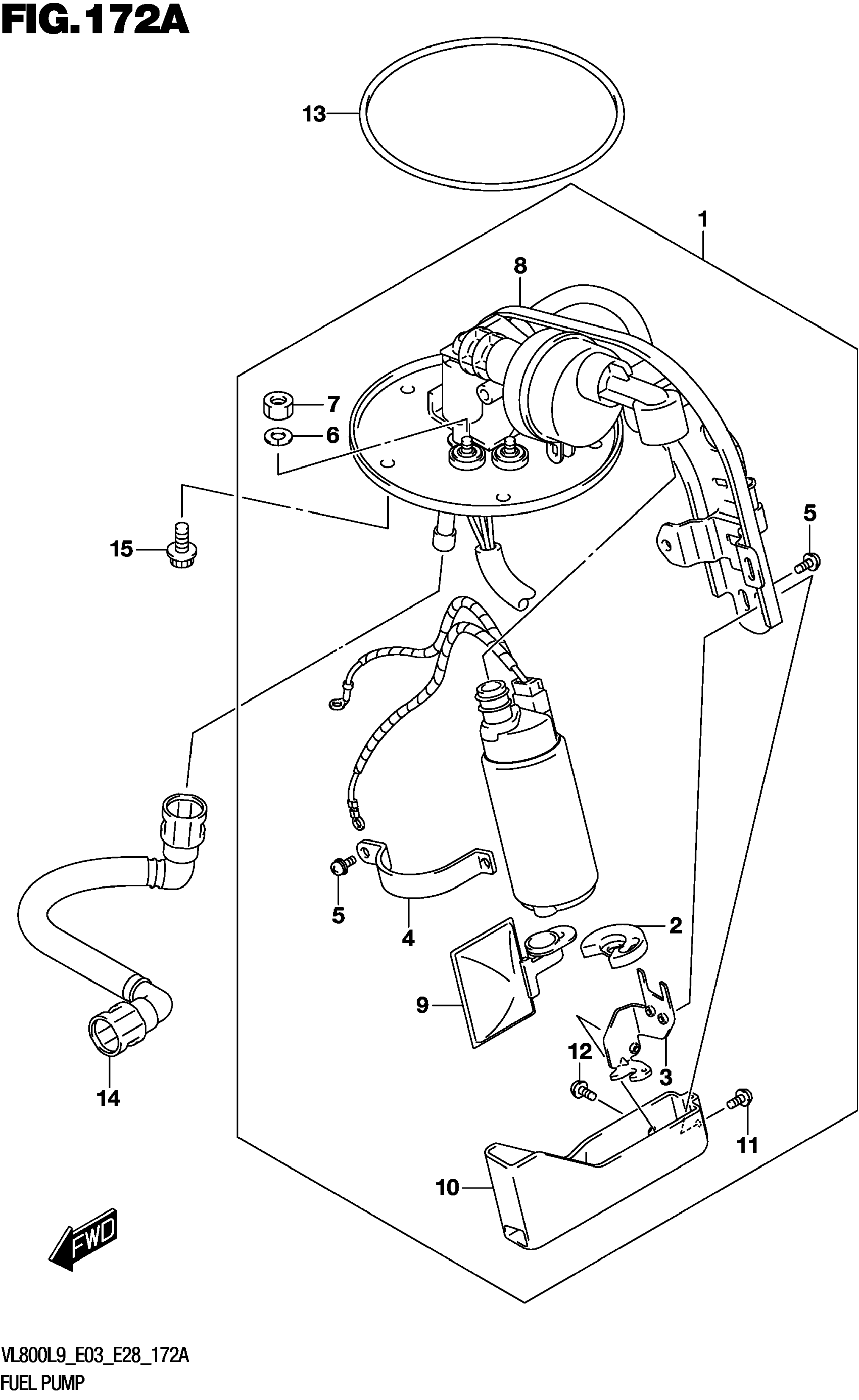

Suzuki VL800L9 (2019) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-41F30

$618.20

2

.CUSHION

15111-41F10

$17.67

3

.HOLDER

15112-41F10

Unavailable

4

.BAND,FUEL PUMP

15115-10F00

Unavailable

5

.SCREW

15116-10F10

Unavailable

6

.SPRING WASHER

15172-35F00

$7.20

7

.NUT

15173-35F00

Unavailable

8

.PLATE ASSY

15410-41F30

$530.73

9

.STRAINER

15420-41F10

$100.92

10

.VESSEL

15425-41F10

$34.93

11

.SCREW

15429-41F10

Unavailable

12

.SCREW

15429-41F20

Unavailable

13

O-RING

15201-35F00

$27.60

14

HOSE,FUEL

15810-39G03

$55.57

15

BOLT

07120-0612A

$2.50
