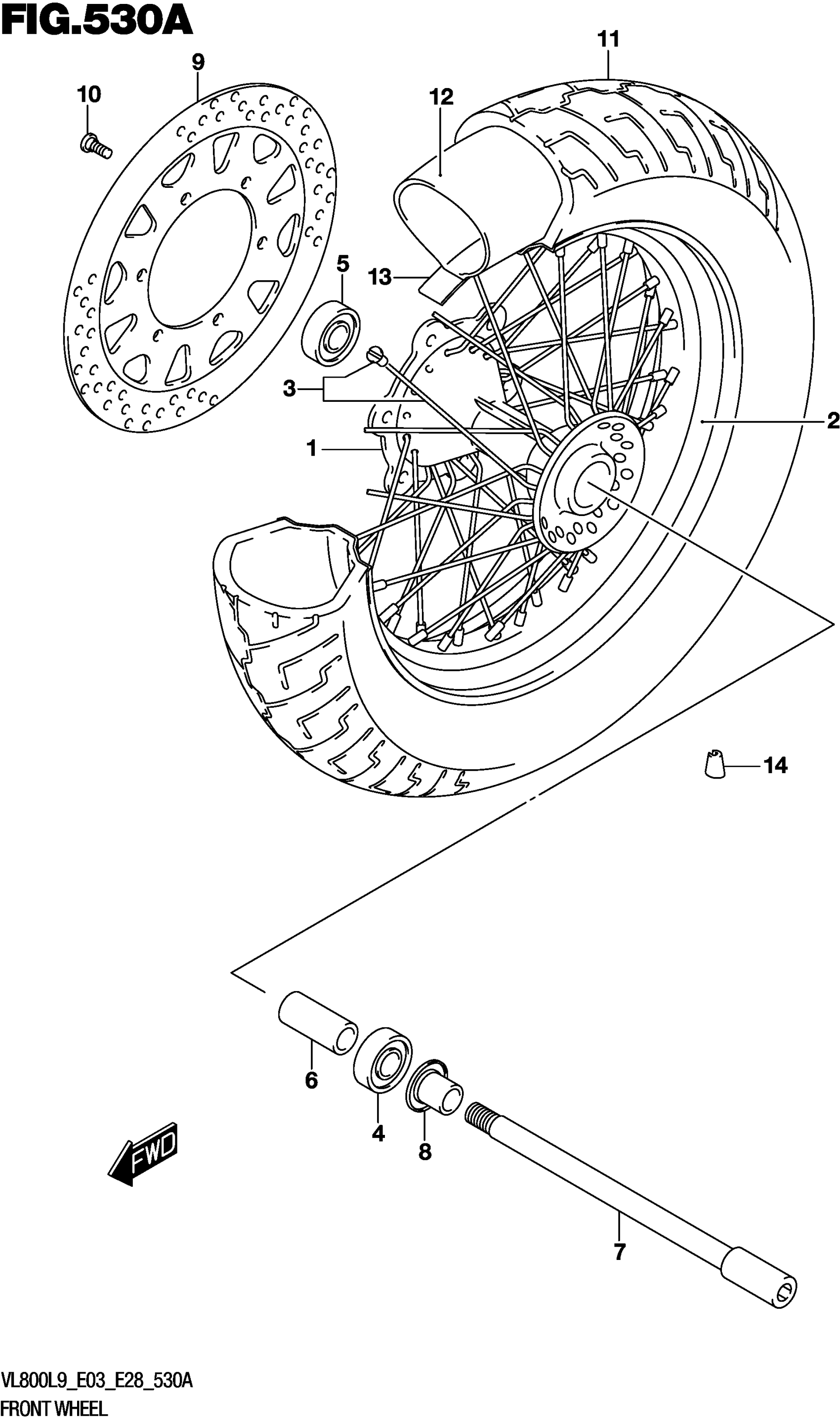

Suzuki VL800L9 (2019) FRONT WHEEL (VL800L9 E03) Diagram

HUB,FRONT

54111-41F20

Unavailable

RIM,FR WHEEL (16M/CXMT3.00)

55311-41F01

$326.27

SPOKE SET,FRONT WHEEL

55320-41F00

$206.32

BEARING | LH This part replaces 08133-62037.

08133-6203B

$17.61

BEARING | RH

08143-62037

$18.47

SPACER (17.5X25X102)

09180-17080

$29.57

AXLE,FRONT

54711-41F00

$110.67

SPACER,FRONT AXLE,R

54740-32C00

$18.43

DISC,FRONT BRAKE

59211-41F00

$361.30

BOLT,DISK

59421-03A20

$4.82

TIRE (130/90-16M/C) | GS-23F IRC This part replaces 55100-41F00.

55100-41F01

$164.52

TUBE ASSY,WHEEL INNER This part replaces 55200-41F00.

55200-41F01

$44.42

PROTECTOR, WHEEL INNER TUBE

55261-41F10

$6.63

BALANCER WHEEL (15G) | 15G

55411-26G00

$7.73

BALANCER WHEEL (30G) | 30G

55413-41F00

$7.50
