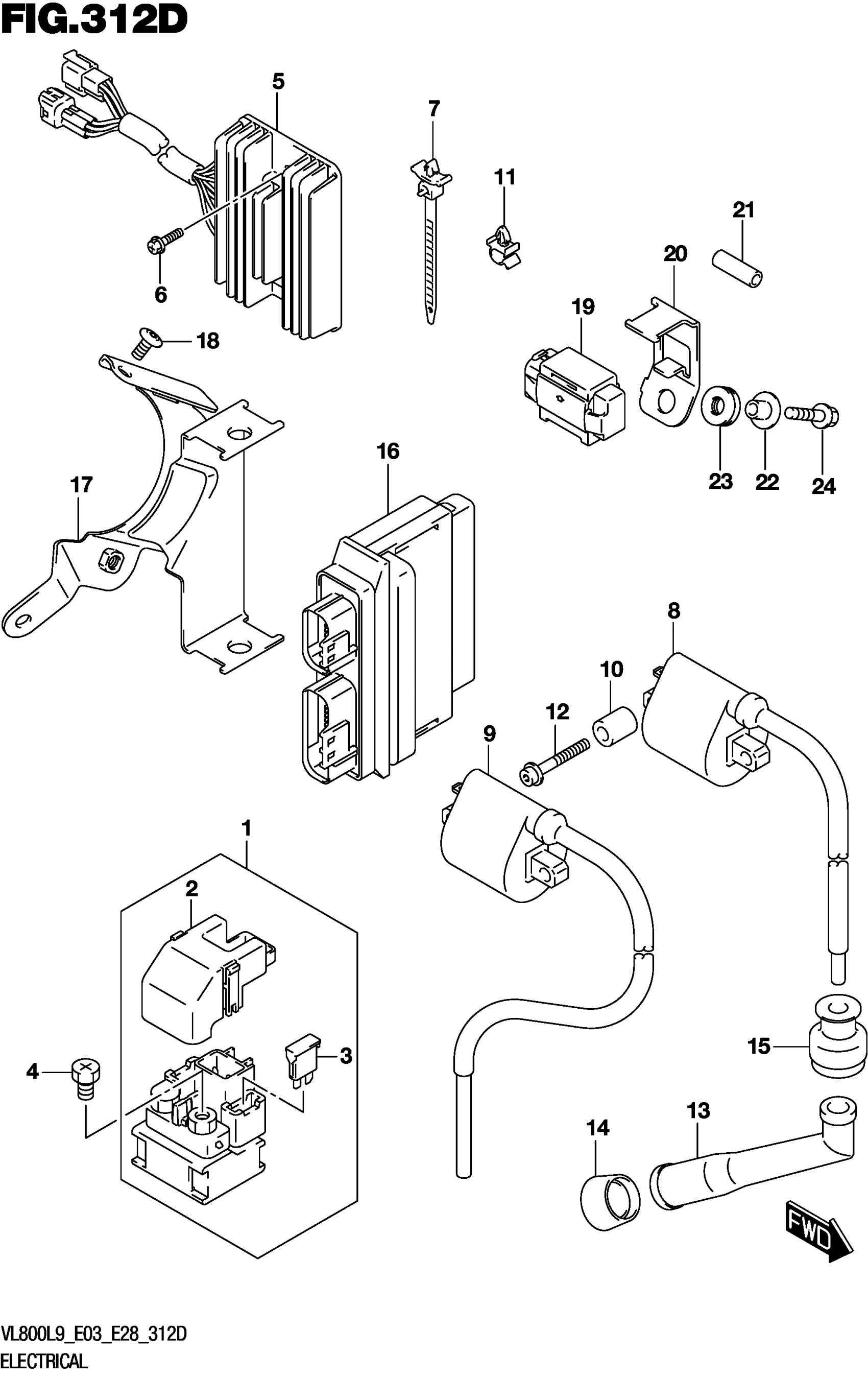

Suzuki VL800L9 (2019) ELECTRICAL (VL800TL9 E03) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$67.32

2

.COVER

31861-47E00

$16.15

3

.FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-47H00

$263.17

6

SCREW

02162-0620B

$2.28

7

CLAMP (L:90)

09407-11402

$1.80

8

COIL ASSY, IGNITION

33410-17G01

$72.92

9

COIL ASSY,IGNITION This part replaces 33420-41F10.

33420-41F11

$86.43

10

SPACER (6.4X10X18)

09180-06195

$3.68

11

CLAMP

09403-07308

$2.07

12

BOLT (5X35)

09106-05033

$3.50

13

CAP ASSY, SPARK PLUG (CENTER)

33510-11410

$25.95

14

SEAL,SPARK PLUG

33541-47D00

$7.83

15

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

16

CONTROL UNIT

32920-39GH0

Unavailable

17

BRACKET,FI CONT UNIT

44880-43H00

Unavailable

18

SCREW (6X12)

09139-06108

Unavailable

19

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

20

BRACKET,FUEL CUT SENSOR

33961-41F00

Unavailable

21

CUSHION,FUEL CUT SNSR BRKT | L:10

09352-50005-010

$2.32

22

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

23

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

24

BOLT

01547-0616A

$2.03
