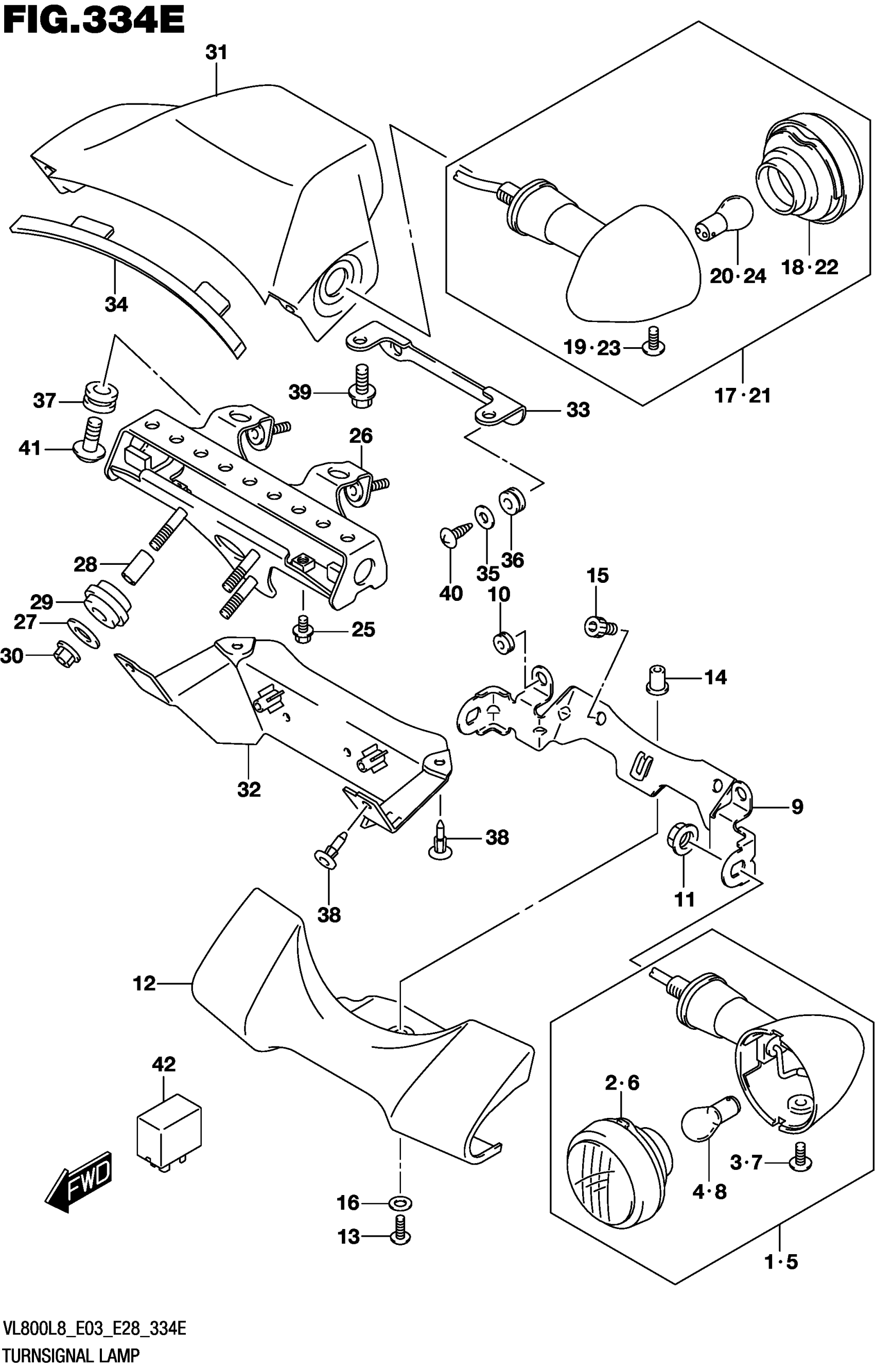

Suzuki VL800L8 (2018) TURNSIGNAL LAMP (VL800TL8 E28) Diagram

LAMP ASSY,FRONT TURNSIGNAL,R

35601-41FC0

$135.57

.LENS

35610-38AA0

$31.91

.SCREW (4X10)

35623-38AA0

$5.11

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

LAMP ASSY,FRONT TURNSIGNAL,L

35602-41FC0

$134.90

.LENS

35630-38AA0

$31.91

.SCREW (4X10)

35623-38AA0

$5.11

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

BRACKET This part replaces 35616-41FA2.

35616-41FA3

$60.63

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

NUT

08310-0010B

$2.70

COVER,FRONT TURNSIGNAL

35641-41F02

$90.20

SCREW (5X16)

09139-05042

$2.90

NUT (M5)

09159-05019

$7.14

BOLT

07130-0812A

$3.72

WASHER

09160-05048

$2.02

LAMP ASSY,REAR TURNSIGNAL RH

35603-38AH0

$140.17

.LENS

35610-38AH0

$39.00

.SCREW (4X10)

35623-38AA0

$5.11

.BULB (12V21W)

09471-12045

$3.27

LAMP ASSY,REAR TURNSIGNAL LH

35604-38AH0

$134.90

.LENS

35630-38AH0

$39.00

.SCREW (4X10)

35623-38AA0

$5.11

.BULB (12V21W)

09471-12045

$3.27

BOLT (6X14)

09103-06507

$4.32

BRACKET,REAR TURNSIGNAL

35620-43H01

$53.98

WASHER (6.5X20X1.2)

09160-06077

$1.91

SPACER (6.4X10X18)

09180-06195

$3.68

CUSHION

09320-10504

$5.78

NUT (6X12)

08316-1006A

$2.19

COVER,REAR TURNSIGNAL UPPER

35621-43H50

Unavailable

COVER,REAR TURNSIGNAL LWR

35622-43HB0

Unavailable

BRACKET,REAR TURNSIGNAL COVER

35623-43H00

$10.58

GASKET,REAR TURNSIGNAL COVER

35657-43H00

$8.28

WASHER (4.3X14X0.8)

09160-04022

$2.15

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

CUSHION (8.4X18X6)

09320-08066

$8.24

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

BOLT

01550-0612A

$1.97

SCREW

03541-0412A

$1.49

SCREW

03541-0510A

$1.49

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
