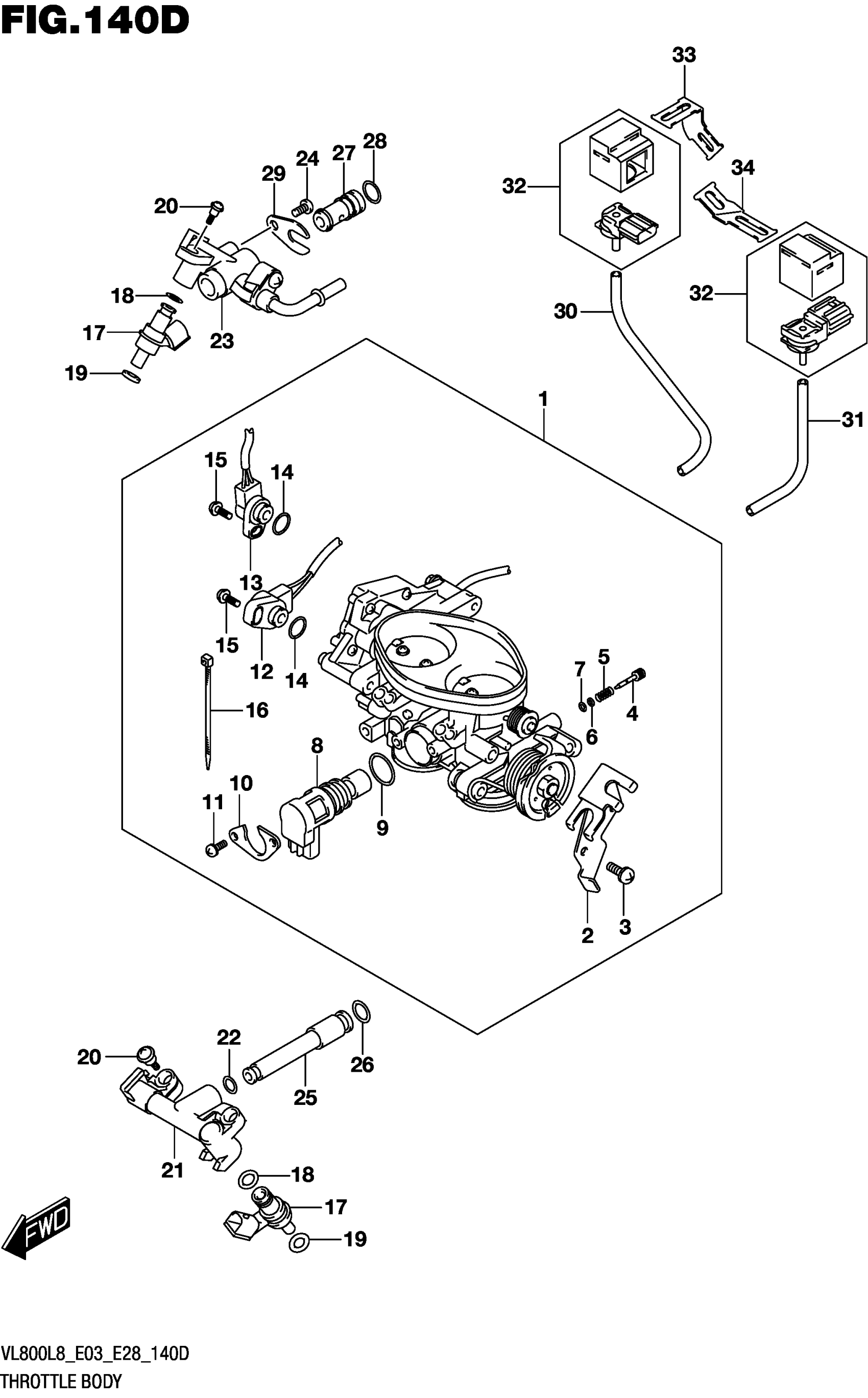

Suzuki VL800L8 (2018) THROTTLE BODY (VL800TL8 E03) Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13401-41F22.

13401-41F23

$968.08

2

.PLATE,STAY

13565-41F20

Unavailable

3

.SCREW

13601-21H00

Unavailable

4

.SCREW,AIR ADJUST

13269-18G00

$13.35

5

.SPRING

13271-43E00

Unavailable

6

.WASHER

13291-26E00

$2.80

7

.O RING

13295-26E00

$3.97

8

.VALVE ASSY, ISC

18117-15H12

$403.72

9

.O-RING

18119-05H00

$4.47

10

.PLATE,ISC VALVE

13428-15H00

Unavailable

11

.SCREW

13605-15H00

$8.03

12

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F21.

13580-40F22

$272.40

13

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F01.

13580-41F02

$152.75

14

.O-RING

13575-40F00

$3.85

15

.SCREW

13605-40F00

$3.50

16

CLAMP (L:145)

09407-14407

$2.80

17

INJECTOR ASSY,FUEL

15710-26GB0

$287.77

18

.O-RING

15721-21H00

$8.31

19

.RING,SEAL

15722-21H00

$10.30

20

SCREW,THROTTLE COVER

13602-34F50

$2.93

21

PIPE SET,FUEL FR

13473-41FA0

$87.03

22

.O-RING

15721-24F00

$8.31

23

PIPE SET,FUEL RR

13473-41FB0

$117.20

24

SCREW

13602-10F10

$4.18

25

JOINT

13473-41FC0

$15.37

26

O-RING

15721-10G00

$8.31

27

PLUG,STRAIGHT

13474-41F20

$7.77

28

O-RING

15721-41F20

$25.25

29

PLATE,STAY

13475-41F20

$6.30

30

HOSE

13683-41FA0

$26.50

31

.TUBE,RUBBER

13683-41FD0

Unavailable

32

SENSOR,AIR PRESSURE

18590-32G00

$331.78

33

BRACKET,BOOST SENSOR FR

18598-41F00

Unavailable

34

BRACKET,BOOST SENSOR RR

18599-39G00

Unavailable
