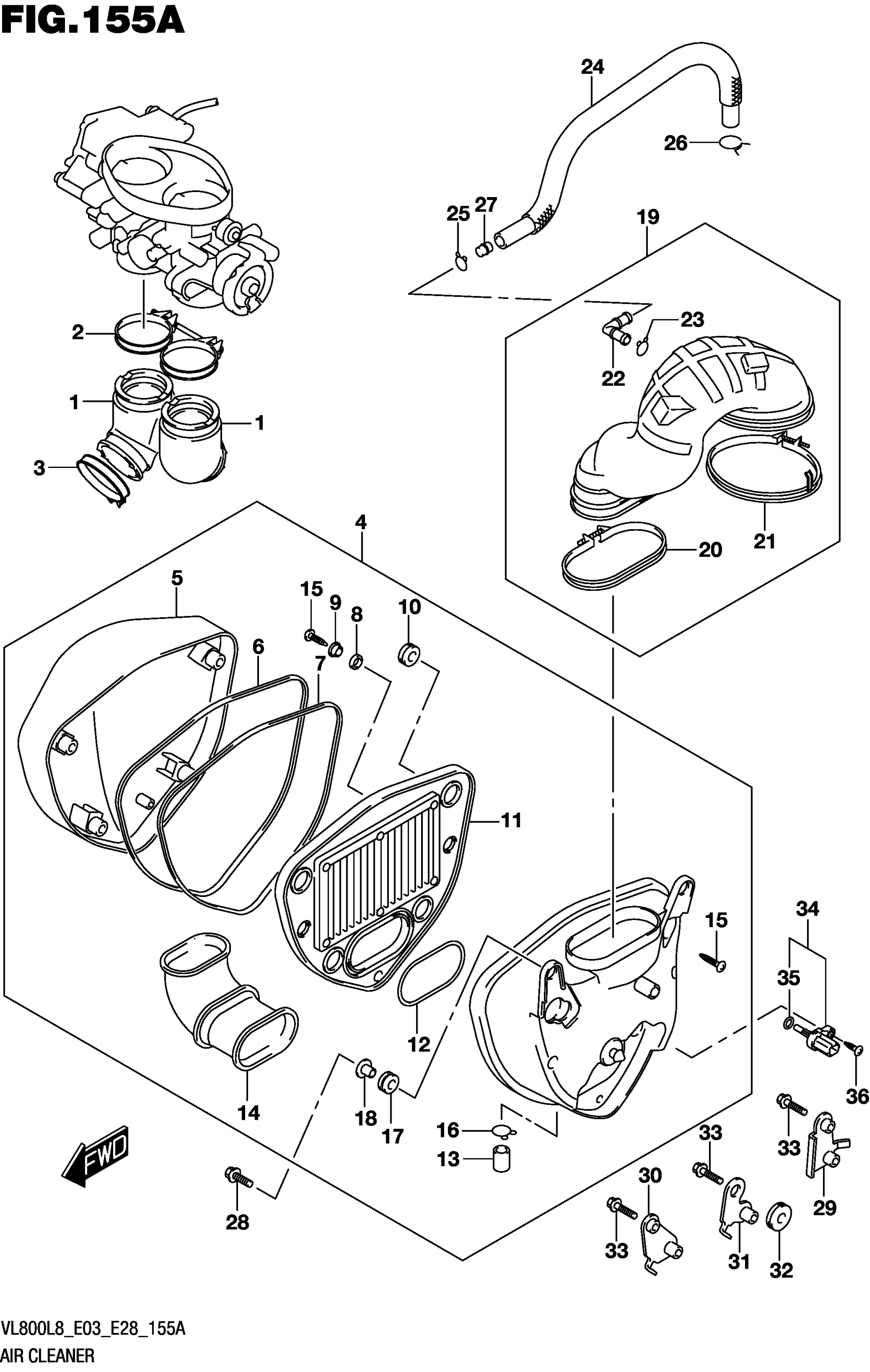

Suzuki VL800L8 (2018) AIR CLEANER Diagram

#

Description
Price

1

PIPE,INTAKE This part replaces 13111-41F11.

13111-41F12

$38.70

2

CLAMP,INTAKE PIPE

13170-39G00

$33.67

3

CLAMP,INTAKE PIPE

13170-15G00

$7.25

4

CASE ASSY,AIR CLEANER

13701-39G20

$523.42

5

.CAP,AIR CLEANER

13741-39G20

$292.80

6

.GASKET

13727-39G20

$19.62

7

.GASKET

13726-39G20

$19.97

8

.CUSHION

13747-39G20

$3.04

9

WASHER

09169-06082

$4.70

10

.CUSHION

13747-41F00

$2.93

11

.FILTER,AIR CLEANER

13780-39G20

$46.55

12

.GASKET,FILTER

13746-39G20

$14.00

13

.PLUG

13859-41B10

$6.94

14

.TUBE,INLET

13891-39G20

Unavailable

15

SCREW

03541-0525B

$2.34

16

.CLIP

09401-14301

$2.17

17

CUSHION (9X18X9.5)

09320-09016

$1.97

18

.COLLAR,CLEANER CASE

13812-29C50

$3.05

19

TUBE ASSY,OUTLET

13880-39G21

Unavailable

20

.CLAMP

13826-41F20

$28.25

21

.CLAMP

13826-39G21

Unavailable

22

.JOINT

13858-14D20

$6.80

23

CLIP (ID:15.5)

09401-15101

$2.28

24

TUBE

13853-39G20

Unavailable

25

CLIP (ID:15.5)

09401-15101

$2.28

26

CLIP (ID:16)

09401-16301

Unavailable

27

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

$4.97

28

SCREW (6X20)

09139-06056

$2.95

29

BRACKET,AIR CLNR NO.1

13761-39G20

Unavailable

30

BRACKET,AIR CLNR NO.2

13762-39G20

Unavailable

31

BRACKET,AIR CLNR NO.3

13763-39G20

Unavailable

32

CUSHION (8X26X7)

09320-08028

$2.80

33

BOLT

01547-0625A

$2.01

34

SENSOR,AIR TEMP

13650-41F10

$71.40

35

O-RING

13655-41F10

Unavailable

36

SCREW

03511-0516B

$2.29
