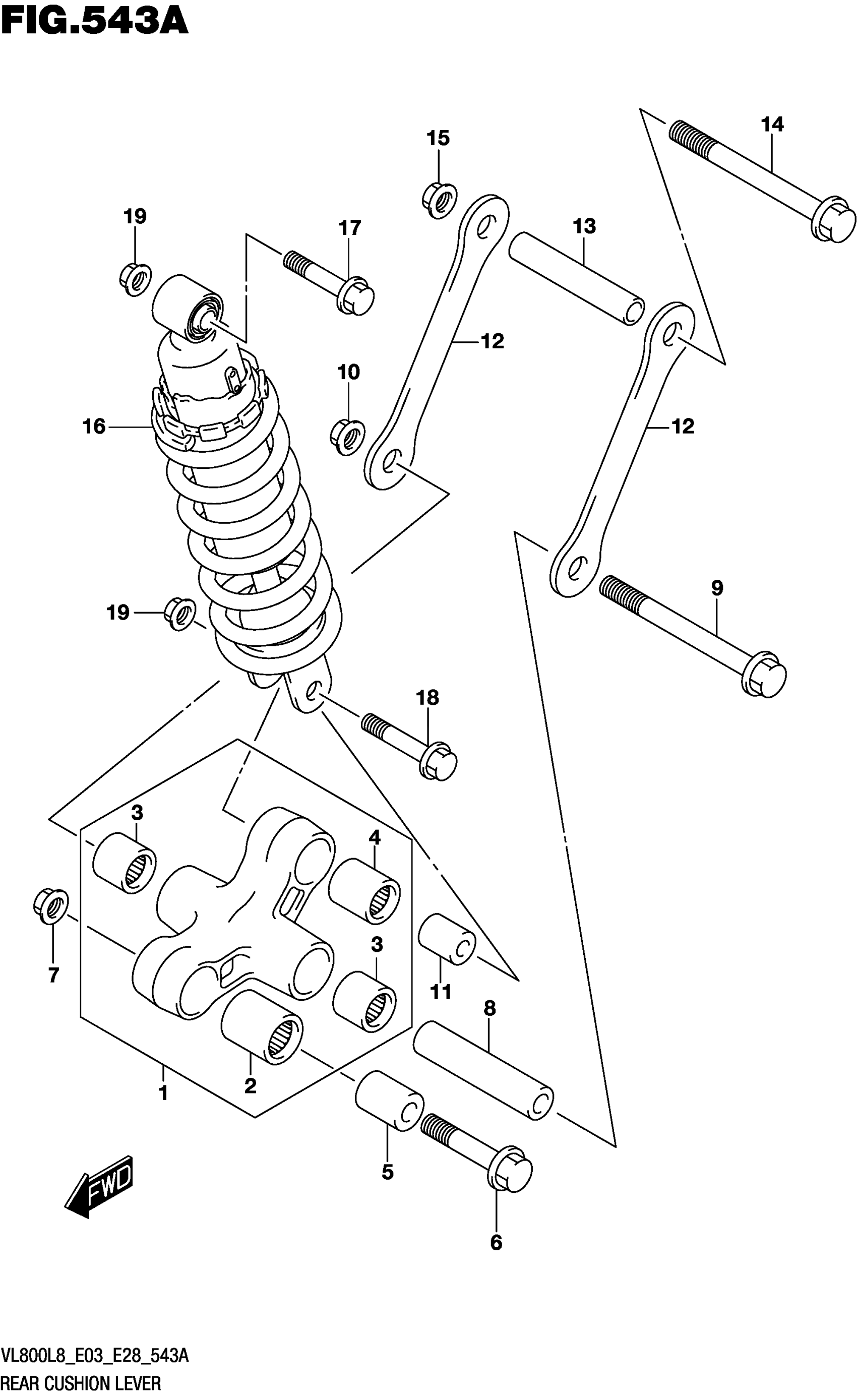

Suzuki VL800L8 (2018) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET

62600-33890

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$15.61

6

BOLT (12X62)

62668-42A02

$10.67

7

NUT

08319-3112A

$3.76

8

SPACER,RR CUSHION LEVER CTR (

62626-33D00

$21.19

9

BOLT,REAR CUSHION LEVER,CENTE

62621-33D00

$28.62

10

NUT

08319-3112A

$3.76

11

SPACER,RR CUSHION LEVER (10X1

62684-40A10

$12.15

12

ROD,REAR CUSHION

62641-41F00

$32.32

13

SPACER,RR CUSHION LEVER CTR (

62626-33D00

$21.19

14

BOLT,REAR CUSHION LEVER,CENTE

62621-33D00

$28.62

15

NUT

08319-3112A

$3.76

16

ABSORBER ASSY

62100-41FB0

$655.28

17

BOLT (10X50)

09103-10064

$5.52

18

BOLT (10X54)

09103-10101

$4.00

19

NUT

08319-3110A

$2.73
